5 Replace Cooling Fans and Circulation Fans
12 YASKAWA TOEP C730600 0FA Fan Replacement Procedure
1. Put the side of the fan nearest to the top of the drive in first, and push it until the tabs
click into position.

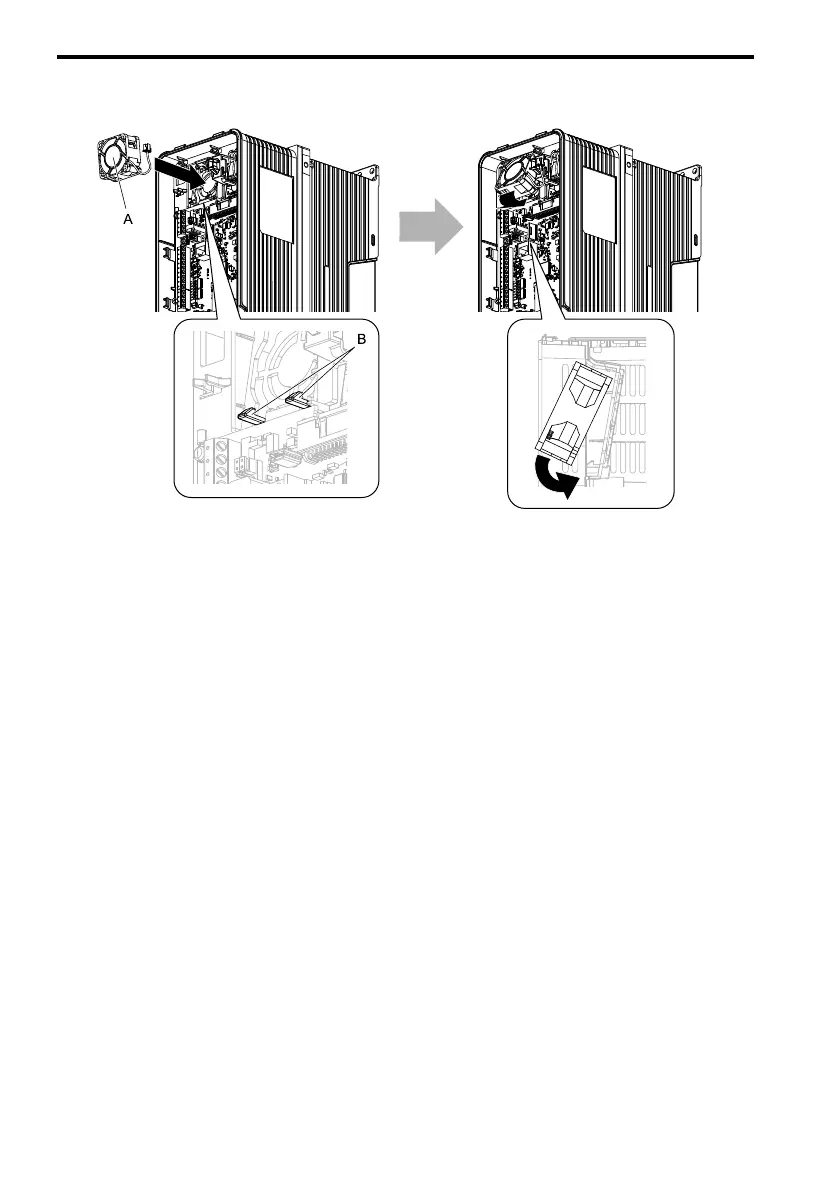

A - Circulation fan B - Tabs
Figure 5.11 Install the Circulation Fan
