5 Replace Cooling Fans and Circulation Fans
14 YASKAWA TOEP C730600 0FA Fan Replacement Procedure
■ Remove a Cooling Fan

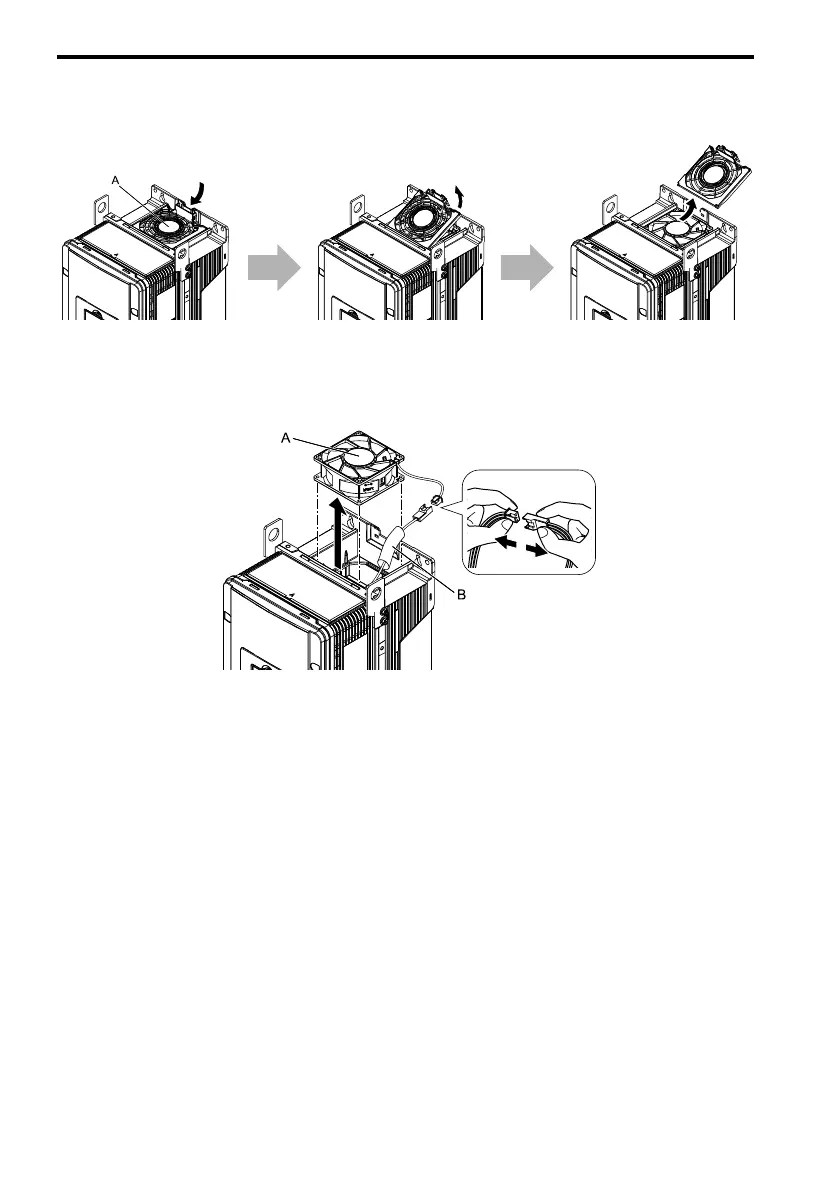

1. Push the tab on the back side of the fan finger guard and pull up to remove the fan finger
guard from the drive.
A - Fan finger guard
Figure 5.13 Remove the Fan Finger Guard
2. Pull the cooling fan straight up from the drive. Remove the protective tube on the power
supply connector and disconnect the connector to remove the fan from the drive.
A - Cooling fan B - Protective tube
Figure 5.14 Remove the Cooling Fans
■ Install a Cooling Fan
Reverse the removal procedure to install a cooling fan.
