5 Replace Cooling Fans and Circulation Fans
YASKAWA TOEP C730600 0FA Fan Replacement Procedure 15

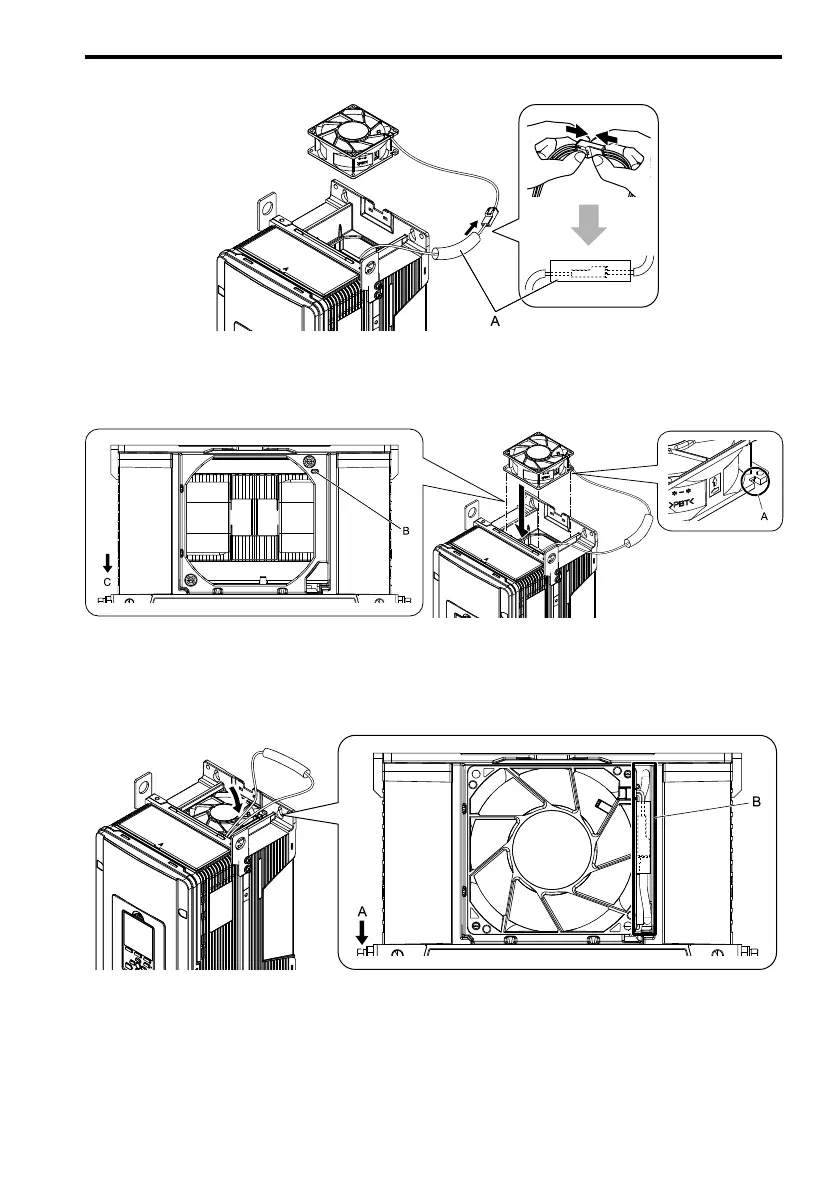

1. Connect the drive and the fan connectors, and attach the protective tube.
A - Protective tube
Figure 5.15 Connect the Power Supply Connector
2. Align the notch on the fan with the pin on the drive and install the cooling fan in the drive.
A - Notch on fan
B - Alignment pin on drive
C - Front of drive
Figure 5.16 Install the Cooling Fan
3. Put the cable and connector in the recess of the drive.
A - Front of drive B - Recess for cable and connector
*1
Figure 5.17 Put the Cable in the Drive Recess
*1 Make sure that the cable and connector are in the correct space.
To Next Page
