YASKAWA AC Drive - Install a Circulation Fan

5 Replace Cooling Fans and Circulation Fans
YASKAWA TOEP C730600 0FA Fan Replacement Procedure 25
2. Disconnect the power supply connector.

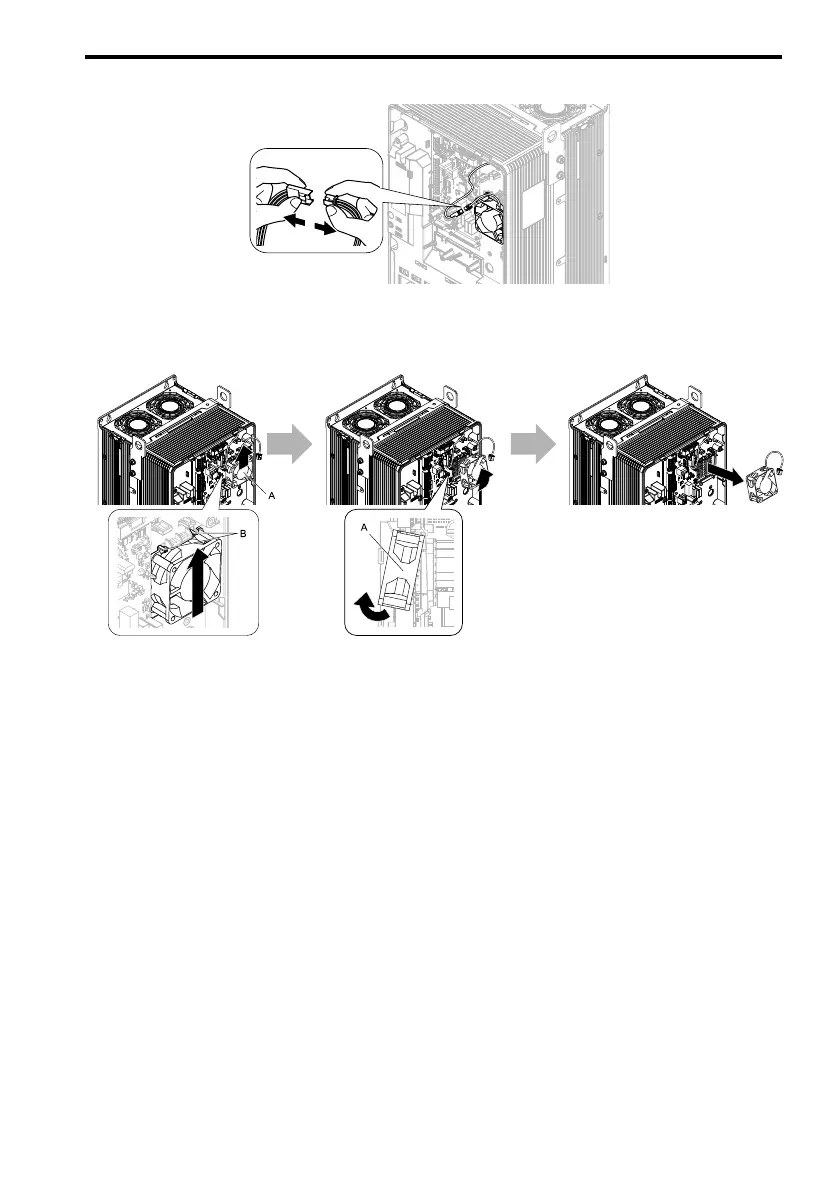

Figure 5.34 Disconnect the Connector
3. Push the fan toward the top of the drive to push on the tabs at the top of the fan, then
pull the bottom of the fan forward to remove it from the drive.
A - Circulation fan B - Tabs
Figure 5.35 Remove the Circulation Fan
■ Install a Circulation Fan
Note:
Use this procedure only when you use one of these drive models:
• 2075CVx to 2114CVx
• 4077CVx to 4124CVx
Reverse the removal procedure to install a circulation fan.
