5 Replace Cooling Fans and Circulation Fans
24 YASKAWA TOEP C730600 0FA Fan Replacement Procedure

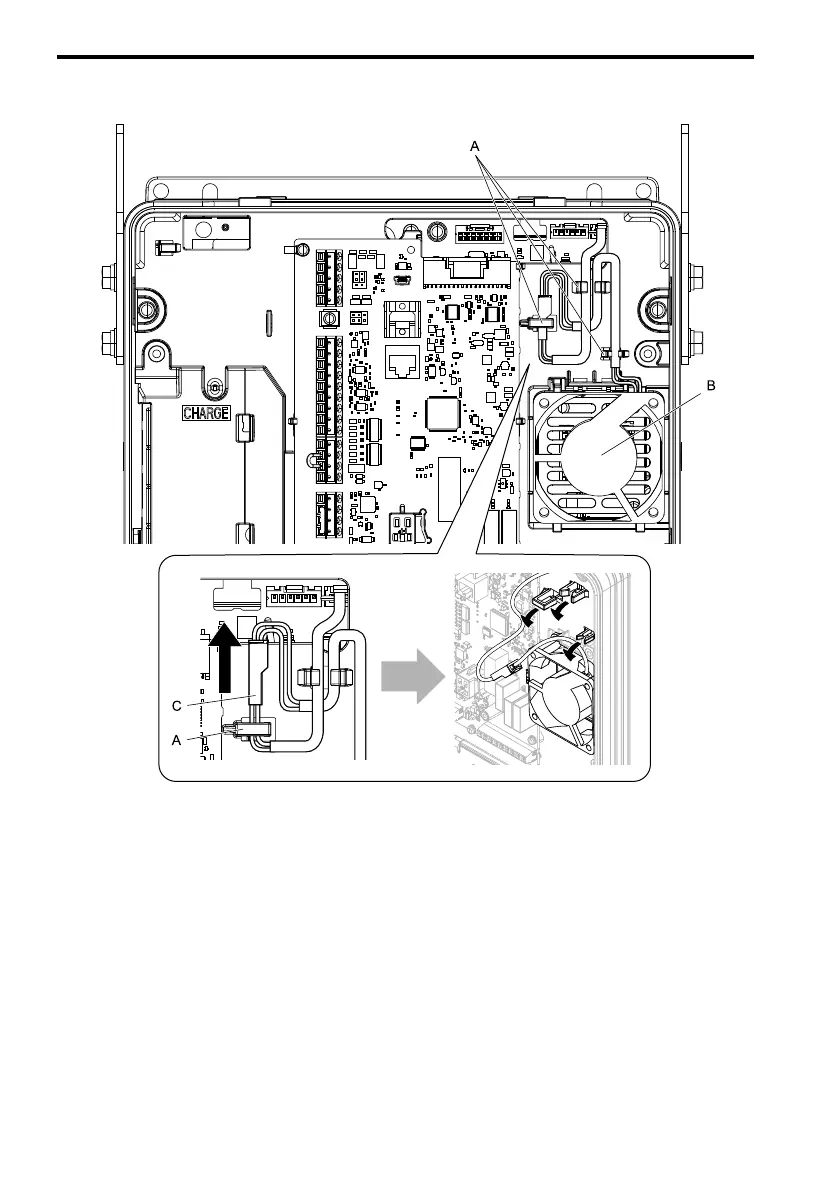

1. Pull the connector toward the top of the drive to remove from the hook then remove the
cables from the hooks.
A - Hooks
B - Circulation fan
C - Power supply connector
Figure 5.33 Remove the Cables
