5 Replace Cooling Fans and Circulation Fans
32 YASKAWA TOEP C730600 0FA Fan Replacement Procedure

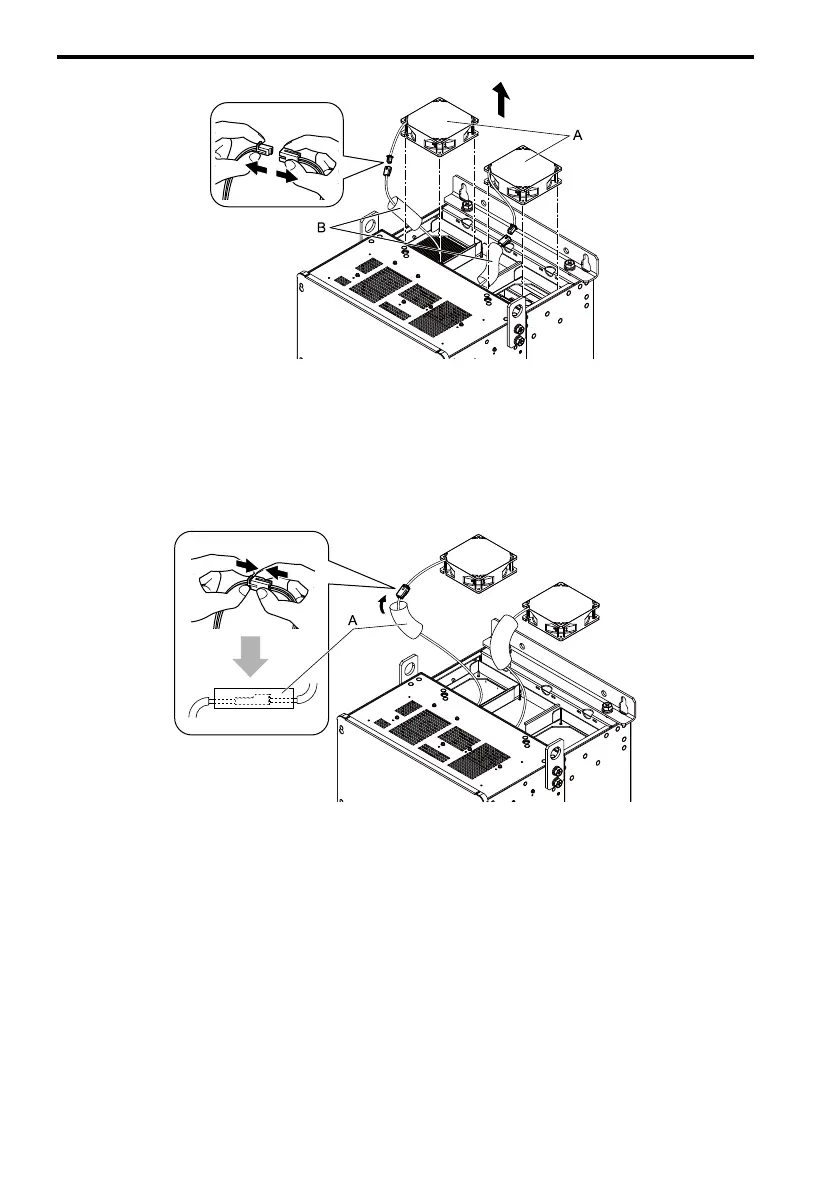

A - Cooling fans B - Protective tubes
Figure 5.47 Remove the Cooling Fans
■ Install the Cooling Fans
Reverse the removal procedure to install the fan units.
1. Connect the power supply connectors, and attach the protective tube.
A - Protective tubes
Figure 5.48 Connect the Power Supply Connectors
To Next Page
