5 Replace Cooling Fans and Circulation Fans
YASKAWA TOEP C730600 0FA Fan Replacement Procedure 17

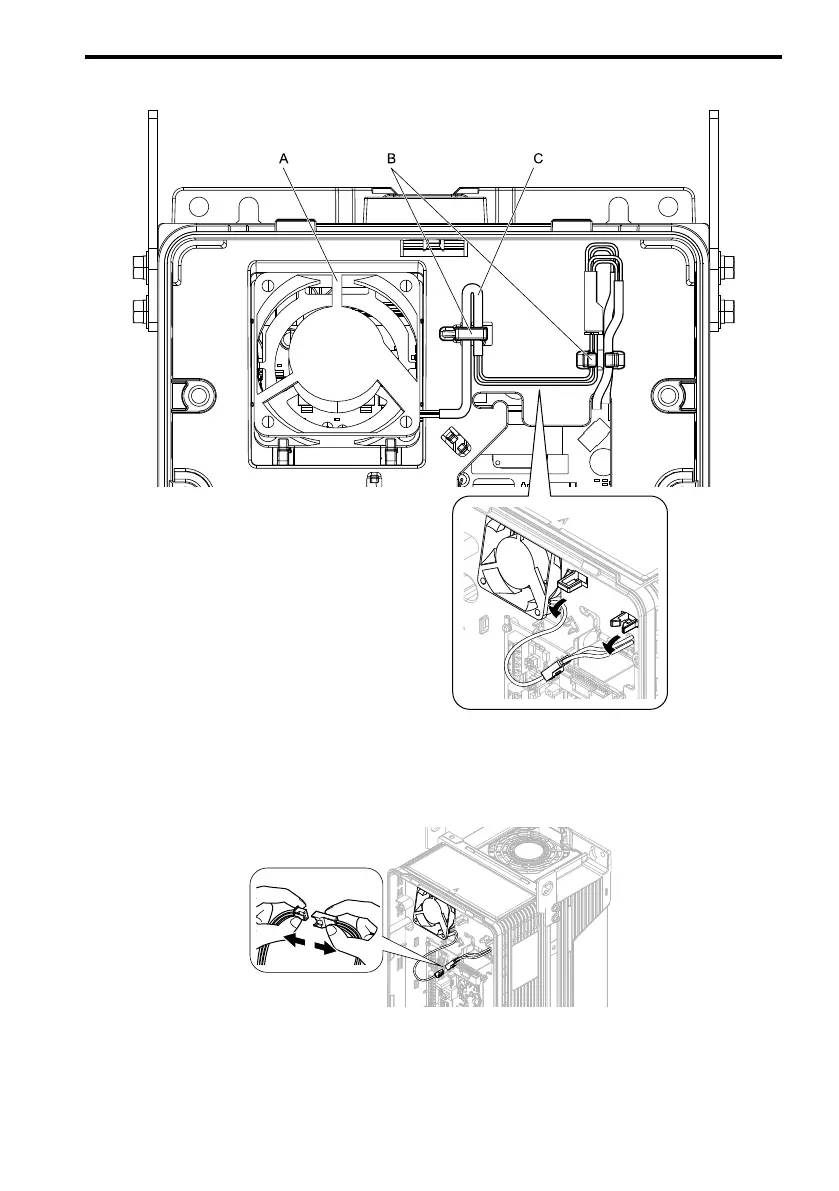

1. Remove the cable from the hooks.
A - Circulation fan
B - Hooks
C - Fan cable
Figure 5.20 Remove the Cable
2. Disconnect the power supply connector.
Figure 5.21 Disconnect the Power Supply Connector
