5 Mechanical Installation
YASKAWA ELECTRIC TOBP C720600 01E YASKAWA AC Drive Option CDBR-D, LKEB- Installation Manual 21
◆ Installation Orientation

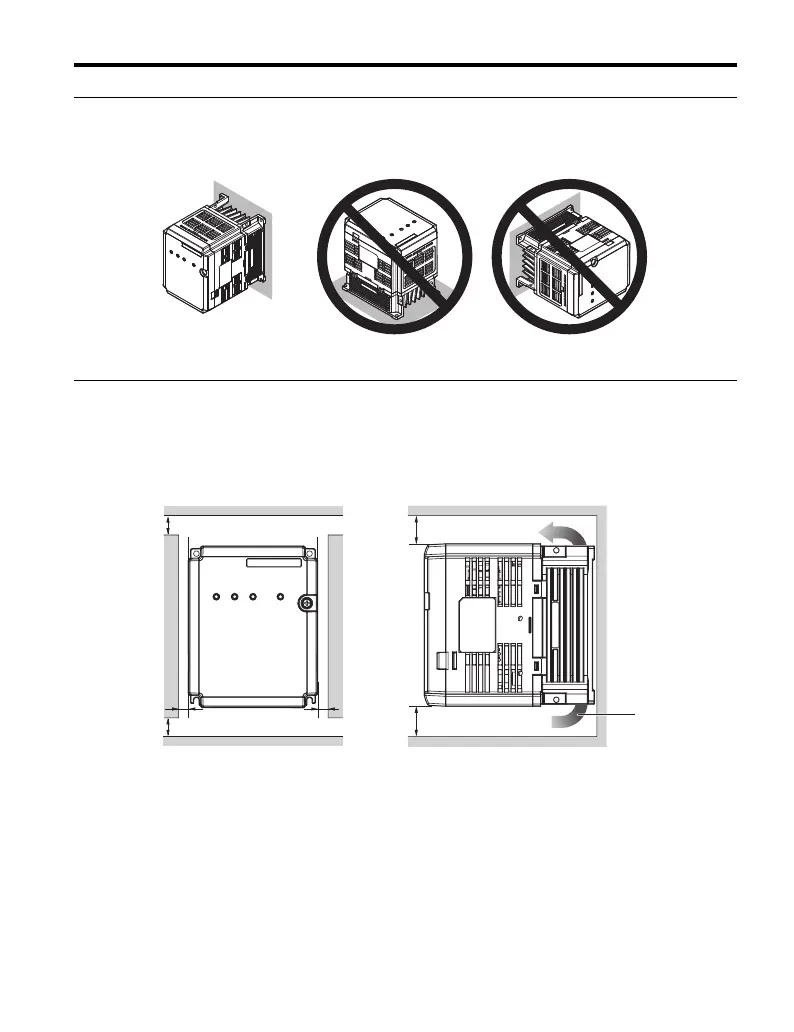

Install the CDBR Braking Unit upright as illustrated in Figure 8 to maintain proper cooling.
Figure 8
Figure 8 Correct Installation Orientation (Braking Unit)
◆ Installation Spacing
Figure 9 and Figure 10 show the installation distance required to maintain sufficient space
for airflow and wiring.
■ CDBR Braking Unit Spacing
Figure 9
Figure 9 CDBR Braking Unit Installation Spacing
A – 50 mm (2.0 in) minimum C – 100 mm (3.9 in) minimum
B – 30 mm (1.2 in) minimum D – Airflow direction
A
C
A
BB
C
D
