6 Electrical Installation
YASKAWA ELECTRIC TOBP C720600 01E YASKAWA AC Drive Option CDBR-D, LKEB- Installation Manual 41
◆ CDBR Braking Unit Installation
Follow the instructions below to install the CDBR Braking Unit.
■ Remove the Front Cover and Bottom Cover
1.
Loosen the front cover screw.

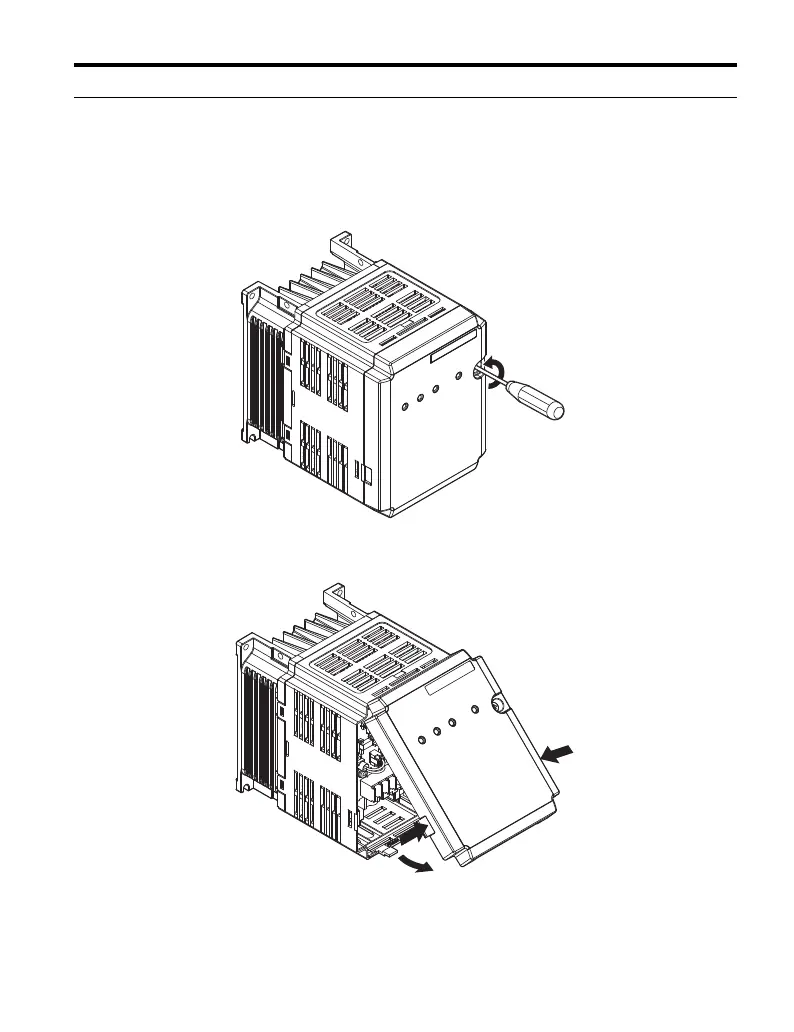

Figure 11
Figure 11 Loosen the Screw Securing the Front Cover
2.
Push in on the hooks located on the sides of the front cover and gently pull forward.
Figure 12
Figure 12 Push the Tabs Inward and Pull Forward on the Front Cover
