6 Electrical Installation
42 YASKAWA ELECTRIC TOBP C720600 01E YASKAWA AC Drive Option CDBR-D, LKEB- Installation Manual

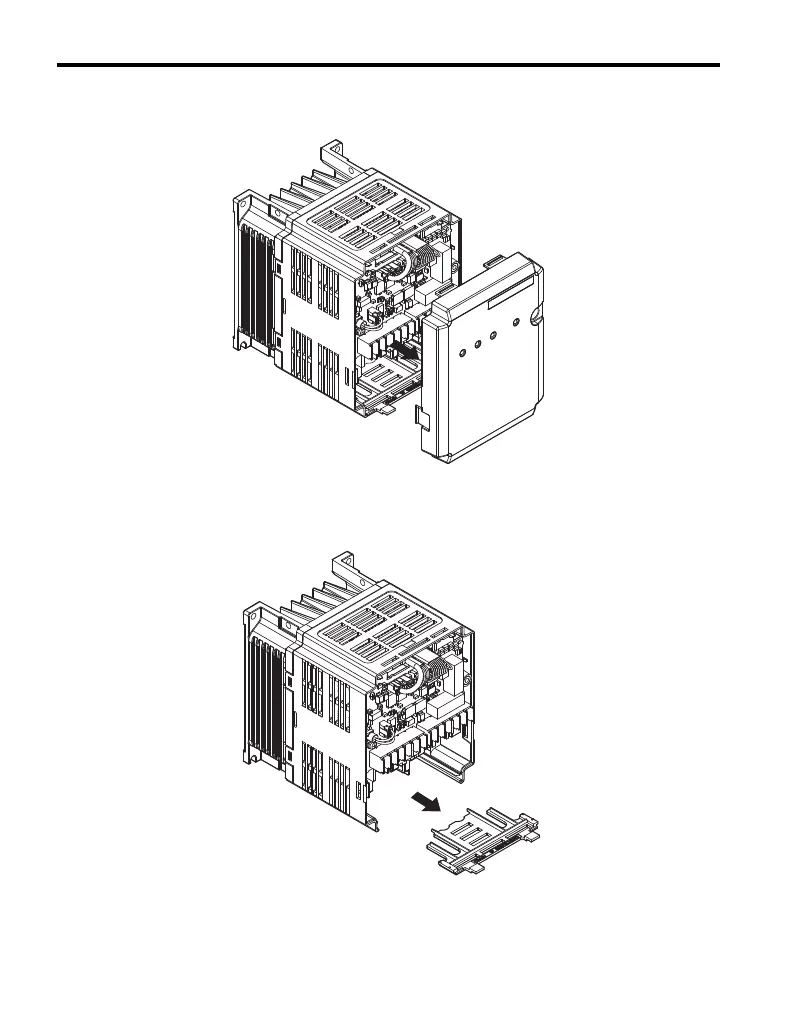

3. Free the tab on the top of the front cover to remove the cover.
Figure 13
Figure 13 Remove the Front Cover
4. Pull forward on the bottom cover to remove it from the unit. Remove the bottom
cover.
Figure 14
Figure 14 Remove the Bottom Cover
