8 Instructions for UL and cUL
EN 44 YASKAWA ELECTRIC TOEP C710606 15E - AC Drive V1000 - Quick Start Guide
Figure 2

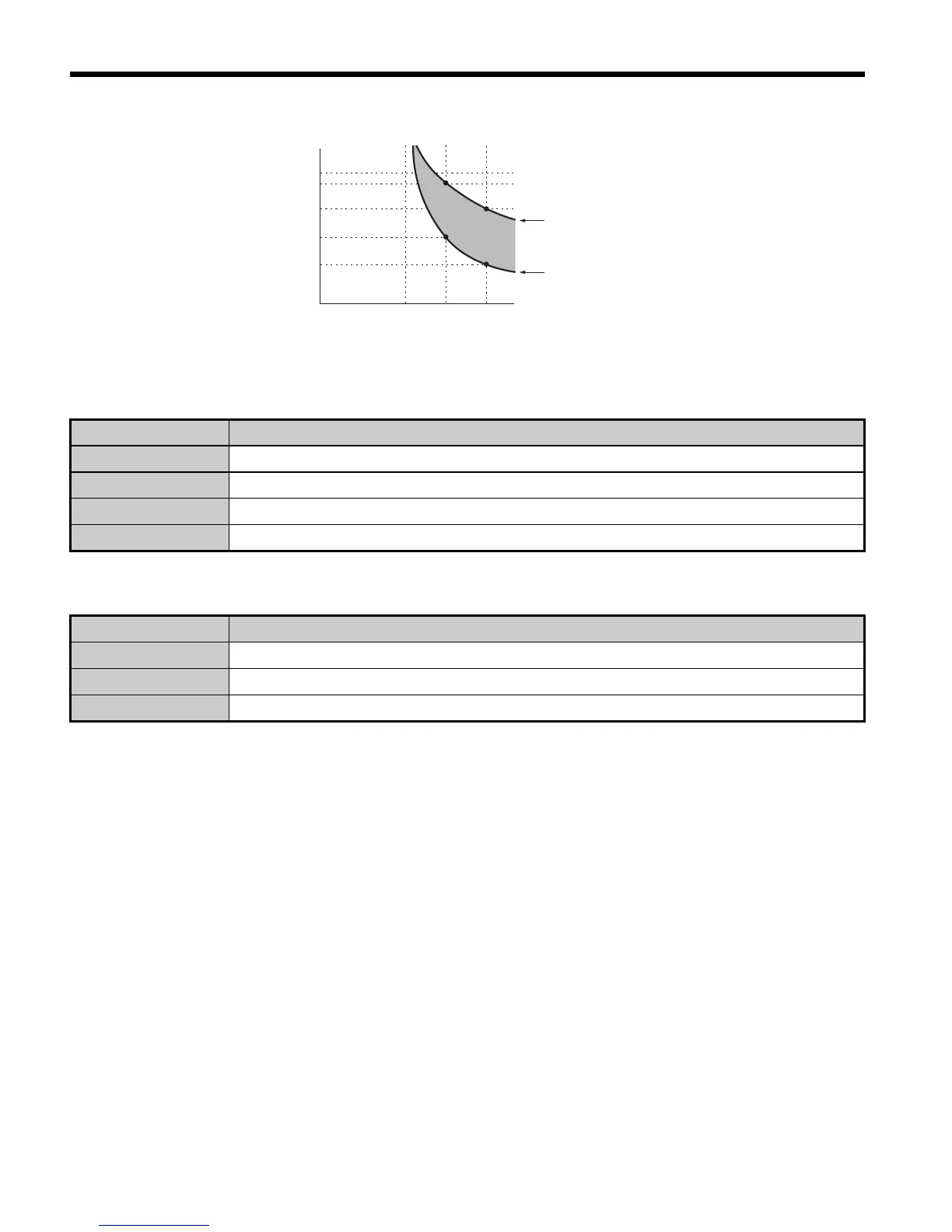

Figure 3 Motor Overload Protection Time
 L1-03 Motor Overload Alarm Operation Selection
 L1-04 Motor Overload Fault Operation Selection
Setting Description
0 Ramp to Stop
1 Coast to Stop
2 Fast-Stop
3 Alarm Only (factory default)
Setting Description
0 Ramp to Stop
1 Coast to Stop (factory default)
2 Fast-Stop
Operation time (minutes)
Cold start
Hot start
Motor current (%)
E2-01 = 100% motor current
10
7
3
1
0.4
0.1
0 100 200150
