9.2 Cable Configurations
9.2.2 Connections to Linear Encoder from Renishaw plc
9-8
9.2.2
Connections to Linear Encoder from Renishaw plc
Connections for a 1 Vp-p Analog Voltage Output Signal
You must make the connections through a Yaskawa Serial Converter Unit. The output signal
will be multiplied by 8 bits (256 divisions) or 12 bits (4,096 divisions) in the Serial Converter
Unit.

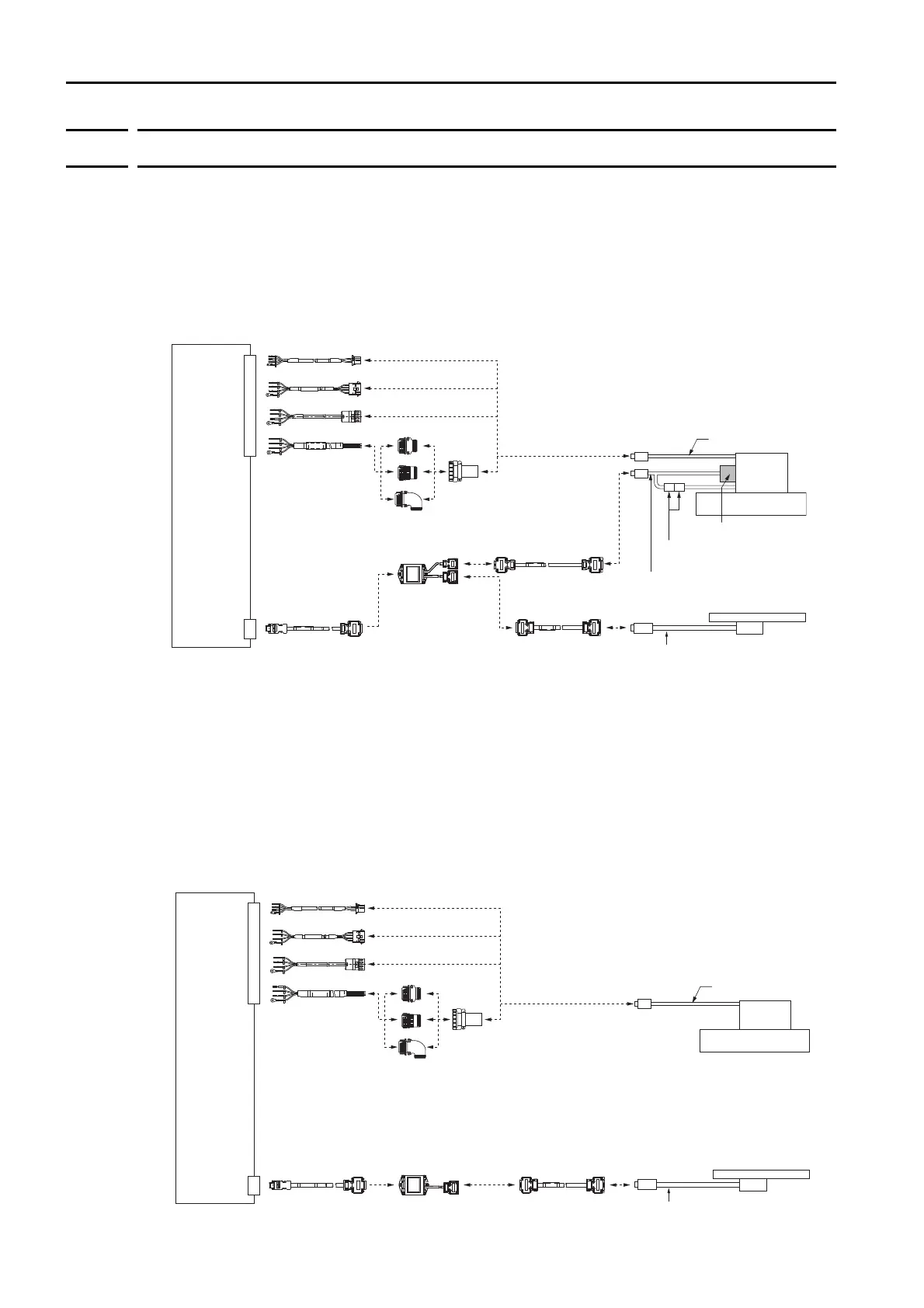

Connecting to a Linear Servomotor with a Polarity Sensor
*1. Only SGLFW2 Servomotors come equipped with Thermal Protector Relay Connectors.
*2. When using a JZDP-J00- Serial Converter Unit, do not use a Yaskawa Linear Encoder Cable that is longer than
3 m.
*3. If you use the origin signals with a Linear Encoder from Renishaw plc, the origin may sometimes be falsely
detected.
If that occurs, use the BID/DIR signal to output the origin signal only in one direction.
*4. Contact Renishaw plc for details on cables (analog 1 Vp-p output, D-sub 15-pin, male) from Renishaw plc.
However, the BID and DIR signals are not connected.
Connecting to a Linear Servomotor without a Polarity Sensor
Servomotors Other Than the SGLFW2
SERVOPACK
Main circuit
connector
CN2
Serial Converter Unit
Servomotor Main Circuit Cable
Sensor Cable
Linear Encoder
Cable
*2
Cable from Renishaw plc
*4
Serial Converter
Unit Cable
Servomotor Main
Circuit Cable
Moving
Coil
Magnetic Way
Polarity Sensor
Linear Encoder from
Renishaw plc
*3
Thermal Protector
Relay Connector
*1
Sensor Cable
SERVOPACK
Main circuit
connector
CN2
Servomotor Main Circuit Cable
Linear Encoder
Cable
*1
Cable from Renishaw plc
*3
Serial Converter
Unit Cable
Serial Converter Unit
Servomotor Main
Circuit Cable
Moving
Coil
Magnetic Way
Linear Encoder from
Renishaw plc
*2
To Next Page
