5.1 Turning ON the Main Power Supply
5-2
5.1.1 Initial Diagnosis
The initial diagnosis are performed in the NX100 when main power is turned on, and the star-
tup window is shown on the programming pendant screen.

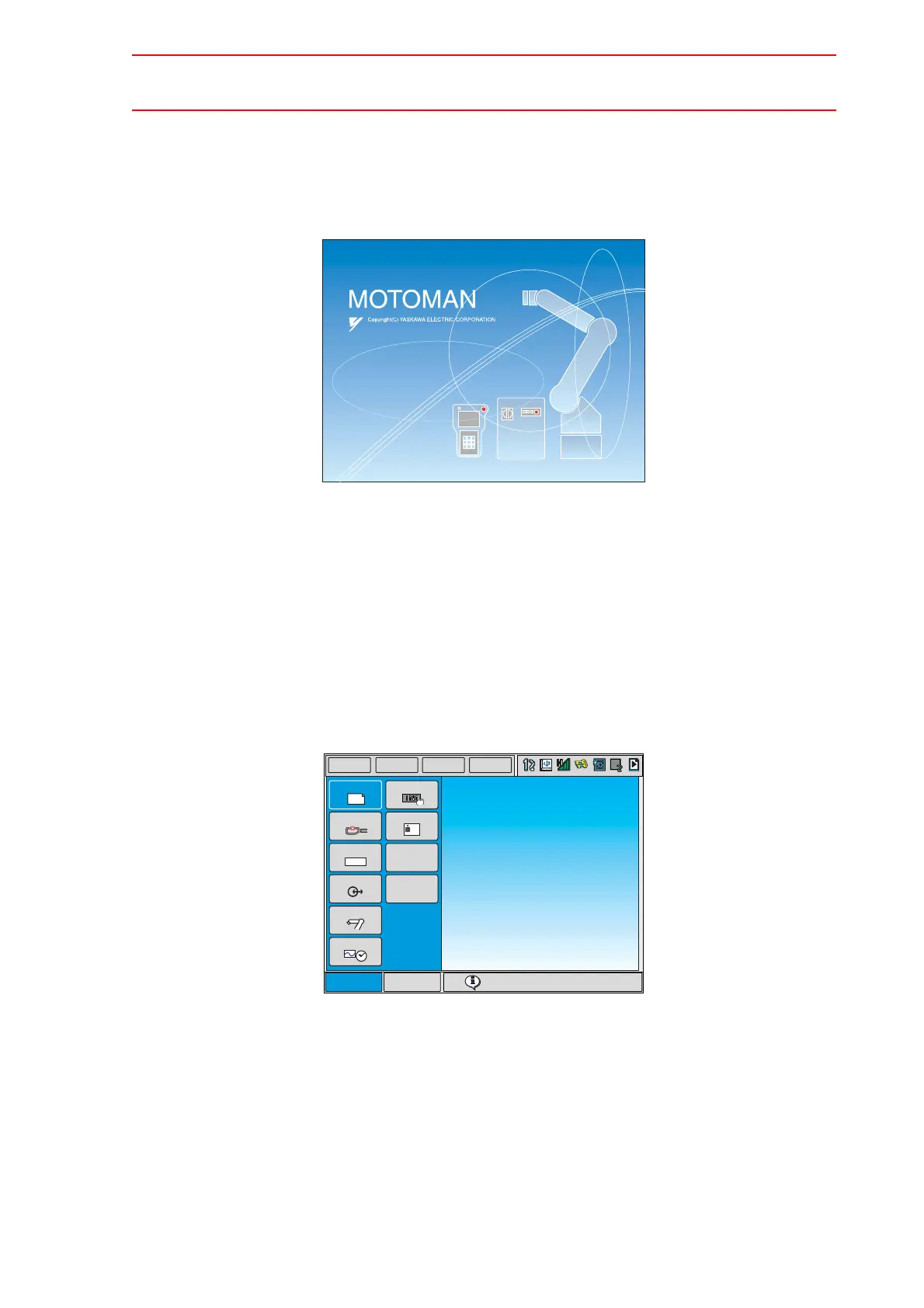

Startup Window
5.1.2 When Initial Diagnosis are Complete
When the power supply is turned off, the NX100 saves all condition data, including:
• Mode of operation
• Called job (active job if the NX100 is in the play mode; edit job if the NX100 is in the teach
mode) and the cursor position in the job.
Initial Window
DATA
Main!Menu ShortCut
JOB
DOUT
MOVE
END
IN/OUT
In Out
SYSTEM!INFO
ARC!WELDING
VARIABLE
B001
ROBOT
PARAMETER
Set!tool!mass!data.
EDIT
DISPLAY
UTILITY
SETUP
To Next Page
