1 Product Handling Precautions
E-22

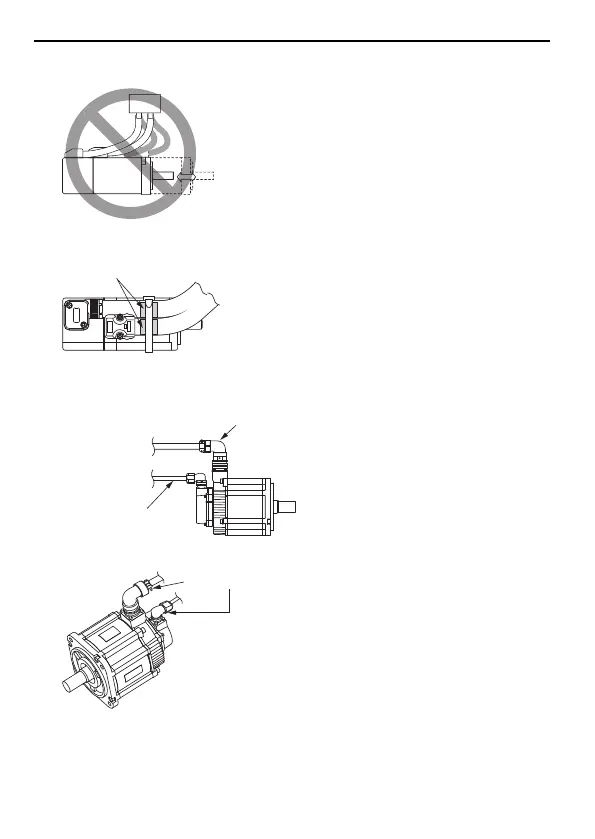

• The cables are not designed to be movable.
• Use the cables so that they are not repeatedly bent.
• If you secure the cables with cable ties, protect the cables with cushioning
material.
• When you connect the connectors to the Servomotor, connect the Servomotor
Main Circuit Cable connector first ( in the following figure) and then con-
nect the Encoder Cable connector ( in the following figure).
• Always use the connectors specified by Yaskawa and insert them correctly.
Connecting the Servomotor and Machine
Using a Coupling
• Use the key that is provided with the Servomotor or a key of the size specified
Cushioning material
Servomotor Main Circuit Cable
Encoder Cable
Specified connectors
To Next Page
