4.3.6 DISPLAYING AND WRITING SETTING DATA
(SETTING)
With this unit, the setting data is stored in the
internal memory. According to the contents of
this memory,
a particular function is turned on/
off.
These contents are also used for the con–
trol constants of functions . For details, refer
to Appendix 1, List of Setting Numbers. The
display and write of setting data are always en-
abled including the time when automatic run is
being performed.
The setting data is of the following two types:
(1) Setting data of bit display format.
(2) Setting data of decimal display format,
4. 3.6.1 Setting Data of Bit Display Format
Setting numbers
II#6000 through #6004° have the
setting data of bit display format.
Each number
has 8-bit information of “D7 through DO, ” each
bit displaying on /off of the corresponding func-
tion.
(1) Display of setting data (bit display format)
Setting data is displayed by the following
operations :
a.
Select the SET function key.
b,
Key-in 4-digit numeric setting number and
depress ~lJ~~SO~~ or ‘. “]
CURSOR ~ ‘ey”
L __
..—
“#’:need not be keyed in. Up to four pairs
of setting data including the keyed setting
number are displayed . To the right of bit
display,the decimal value indicating the sum
of the data on that line is shown.
The cur-
sor is positioned to
number.
c.
The setting number
dated by
CURS6R
1
and the screen may
the designated setting
designation may be up-
Or
CURSOR
key,
be updated by
key.
DEC;MAL INDICATION

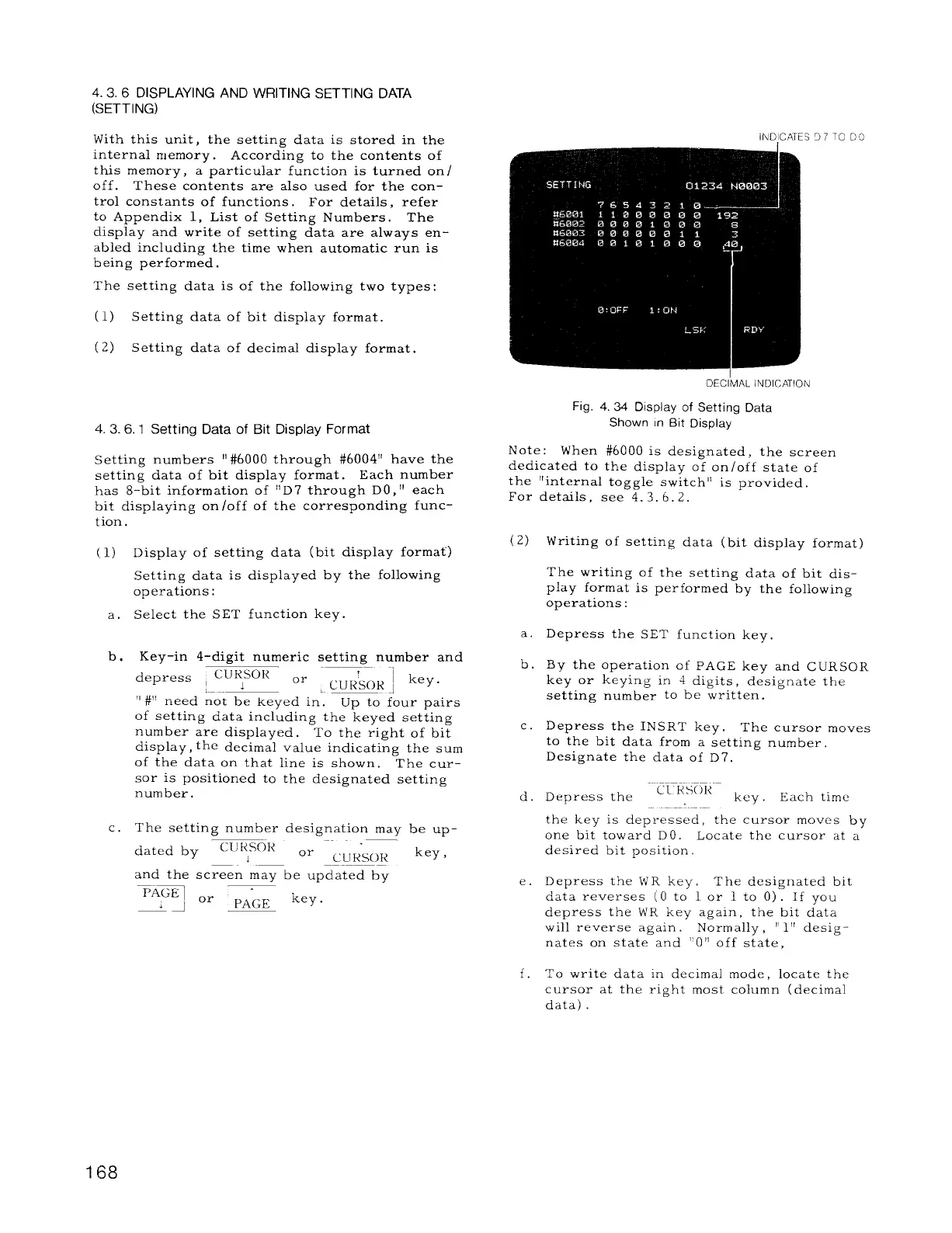

Fig. 4, 34 Display of Setting Data
Shown In Bit Display
Note: When #6000 is designated, the screen
dedicated to the display of on/off state of
the “internal toggle switch” is provided.
For details, see 4.3.6.2.
(2)
a.
b.
c.
d.
e.
f.
Writing of setting data (bit display format)
The writing of the setting data of bit dis-
play format is performed by the following
operations:
Depress the SET function key.
By the operation of PAGE key and CURSOR
key or keying in 4 digits, designate the
setting number to be written.
Depress the INSRT key. The cursor moves
to the bit data from a setting number.
Designate the data of D7.
DeDress the
cL’RsOl<”-
key
Each time
the key is depressed , the cursor moves by
one bit toward DO. Locate the cursor at a
desired bit position
Depress the WR key, The designated bit
data reverses (0 to 1 or 1 to O) . If you
depress the WR key again, the bit data
willreverse again Normally , ‘)1“ desig-
nates on state and “O” off state,
To write data in decimal mode, locate the
cursor at the right most column (decimal
data)
