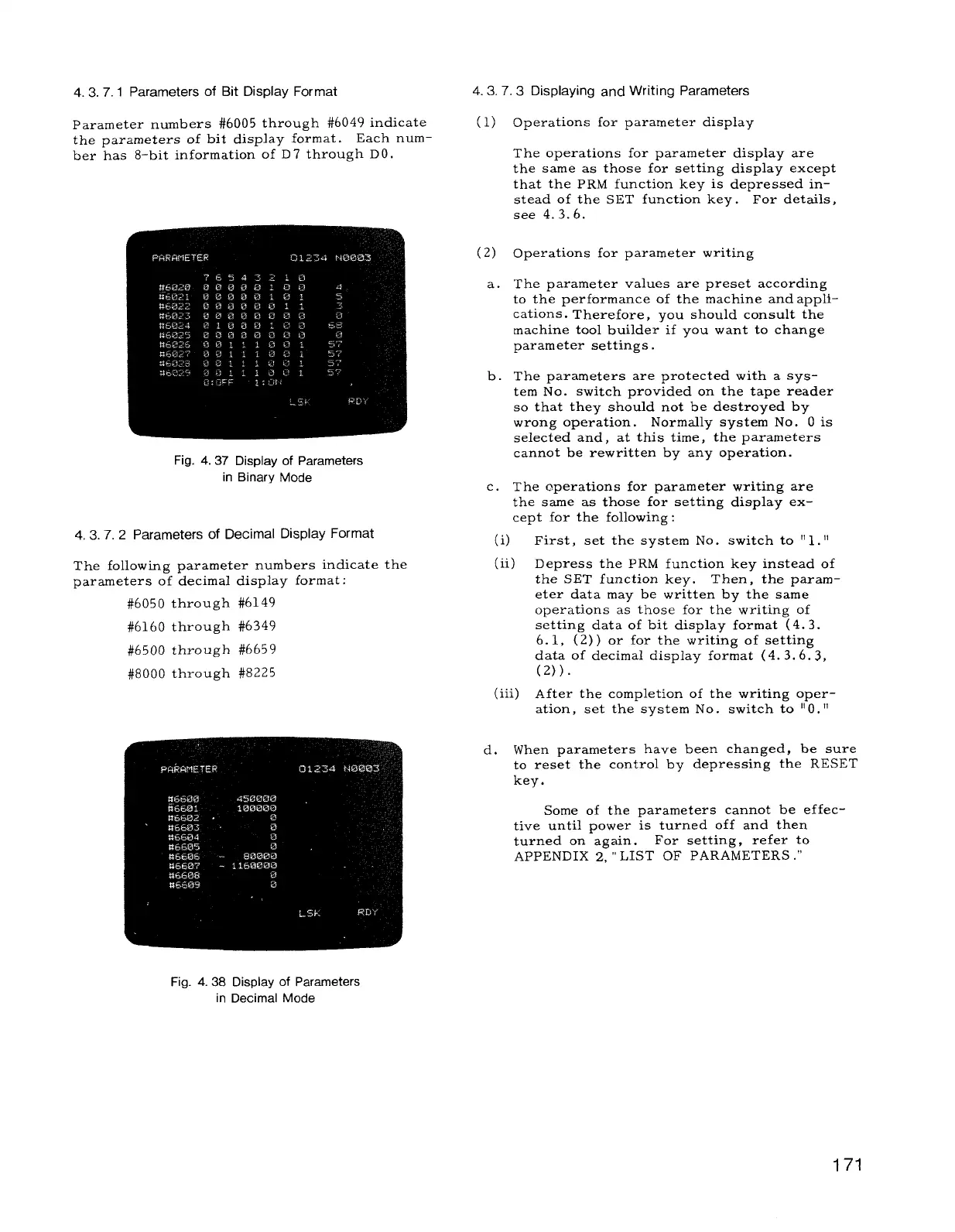

4. 3.7.1 Parameters of Bit Display Format
4. 3.7.3 Displaying and Writing Parameters
Parameter numbers #6oO5 through #6049 indicate
(1) Operations for parameter display
the
parameters of bit display format. Each num–
ber has 8-bit information of D 7 through DO.
The operations for parameter display are
the same as those for setting display except
that the
PRM function key is depressed in-
stead of the SET function key. For details,
see 4.3.6.
(2)
Operations for parameter writing
a. The parameter values are preset according
to the performance of the machine and appli-
cations.Therefore, you should consult the
machine tool builder if you want to change
parameter settings.
Fig. 4.37 Display of Parameters
in Binary Mode
4.3.7.2 Parametersof Decimal Display Format
The following parameter numbers indicate the
parameters of decimal display format:
#6050 through #6149
#6160 through #6349
#6500 through #6659
#8000 through #8225
b. The parameters are protected with a sys-
tem No. switch provided on the tape reader
so that they should not be destroyed by
wrong operation.
Normally system No. O is
selected and, at this time, the parameters
cannot be rewritten by any operation.
c.
The operations for parameter writing are
the same as those for setting display ex-
cept for the following:
(i)
First, set the system No. switch to “1.“
(ii)
Depress the
PRM function key instead of
the SET function key. Then, the param-
eter data may be written by the same
operations as those for the writing of
setting data of bit display format (4. 3.
6.1, (2)) or for the writing of setting
data of decimal display format (4. 3.6.3,
(2)).
(iii) After the completion of the writing oper-
ation, set the system No. switch to “ O. “
d.
When parameters have been changed, be sure
to reset the control by depressing the RESET
key.
Some of the parameters cannot be effec-
tive until power is turned off and then
turned on again.
For setting, refer to
APPENDIX 2,“LIST OF PARAMETERS .“
Fig. 4.38 Display of Parameters
in Decimal Mode
