Installation
Connection
• MCore Pro supports
:
mount on the wall, mount on the TV, stick to the table.
• MTouch Plus supports: put on a table, paste on a table, xed on a table, mount on the wall.
• UVC84 supports
:
put on a at surface, mount on top of a display, mount on the wall, mount on the ceiling,
mount on the TV mount.
• AVHub
supports: mount on the wall, stick under the table, put on the desk, mount on the rack.
• RoomSensor
supports: mount on the ceiling, mount on the wall.
• Install and deploy the accessories in the system according to the environment and actual needs. For how
to install and deploy, please refer to the quick start guide of each product.

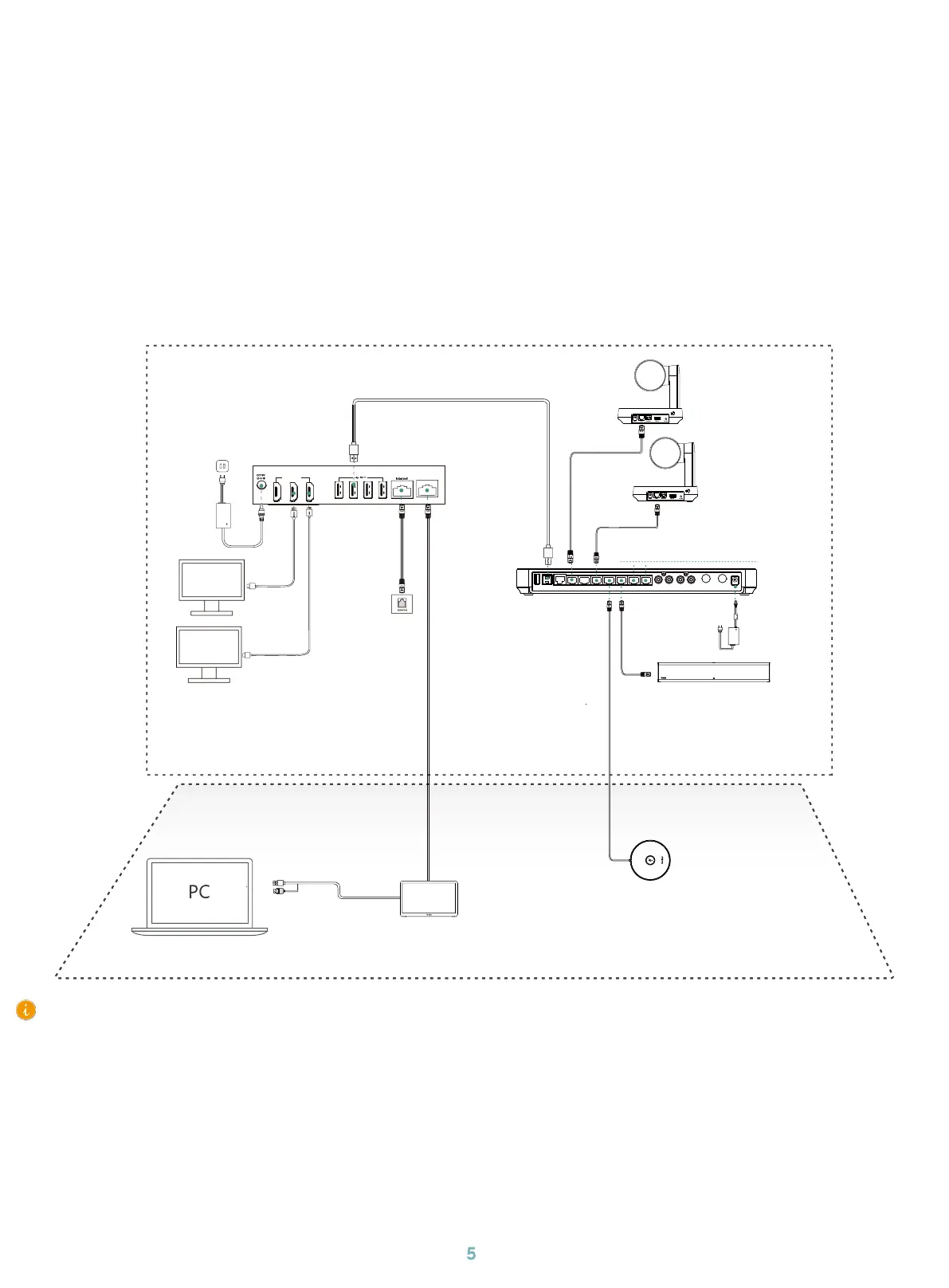

Display
(not included)
UVC84
UVC84
(2.1 m, 6.89 ft)
Power
(19V/4.74A)
(3.8 m, 12.47 ft)
Power (48V/2A)
(7.5 m, 24.60 ft) CAT5e
(7.5 m, 24.60 ft)
CAT5e
(1.8 m, 5.91 ft) HDMI
(1.8 m, 5.91 ft)
HDMI
(1.2 m, 3.94 ft) USB 3.1 (C - C, HDMI)
• When starting up the system for the rst time, you need to connect a mouse to complete the initial
conguration. We recommend using the wireless mouse and keyboard kit.
• When you connect the UVC84/UVC86/MSpeaker II directly to the AVHub, the total number of connections must
be no more than 4 devices. If the total number of connections exceeds 4 devices, you need to connect a PoE
switch (the PoE switch must meet the 802.3 AT (PoE+) standard). We recommend using Yealink RCH40.
• Not included accessories requirements:
»
Display: Resolution of 1080p or higher and with an HDMI port.
»
PC: Equipped with HDMI or USB-C (support DP protocol) Port.
»
Ethernet cable: CAT5e or higher ethernet cable.
»
HDMI: Standard HDMI cable.
PC
(not included)
MTouch Plus
MCore Pro
CAT5e Cable
(not included)
(7.5 m, 24.60 ft) CAT5e
(2.5 m, 8.20 ft) USB 3.0 (A-B)
MSpeaker II
(optional)
VCM35/VCM38
(optional)
CAT5e Cable
(not included)
VCM35: (5m, 16.40ft) CAT5e
VCM38: CAT5e (Not included)
AVHub
