Yealink SIP-T19P User Manual

Getting Started
15

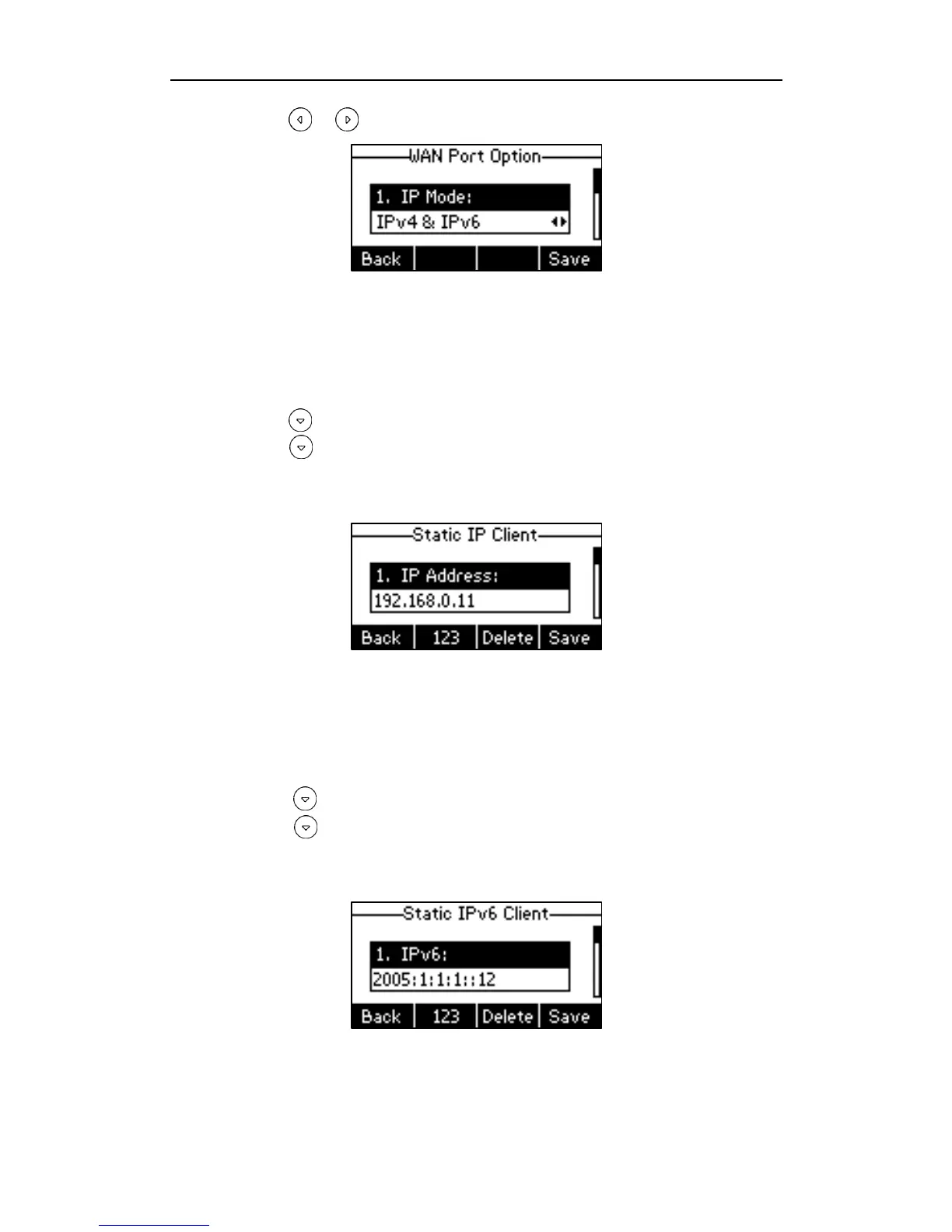

2. Press or to select IPv4, IPv6 or IPv4 & IPv6 from the IP Mode field.
3. Press the Save soft key to accept the change or the Back soft key to cancel.
To configure a static IPv4 address via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Network->WAN
Port.
2. Press to select IPv4 and press the Enter soft key.
3. Press to select Static IP Client and press the Enter soft key.
4. Enter the desired values in the IP Address, Subnet Mask, Default Gateway, Pri.DNS
and Sec.DNS fields respectively.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
To configure a static IPv6 address via phone user interface:
1. Press Menu->Settings->Advanced Settings (password: admin) ->Network->WAN
Port.
2. Press to select IPv6 and press the Enter soft key.
3. Press to select Static IPv6 Client and press the Enter soft key.
4. Enter the desired values in the IPv6, IPv6 Prefix, IPv6 Gateway, IPv6 Pri.DNS and
IPv6 Sec.DNS fields respectively.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
If you are using an xDSL modem for IPv4 network connection, you can connect your
phone to the Internet via PPPoE mode. Set the WAN port as a PPPoE port. The PPPoE port

Yealink SIP-T19P Specifications

General

Speakerphone	Yes
Voice codecs	CNG, G.711, G.723, G.726, G.729ab, VAD
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Front camera	No
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	1
Security algorithms	802.1x RADIUS, AES, HTTPS
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols	IPv6
Ethernet LAN (RJ-45) ports	2
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	185 mm
Height	143 mm
