Yealink SIP-T19P User Manual

Customizing Your Phone
37

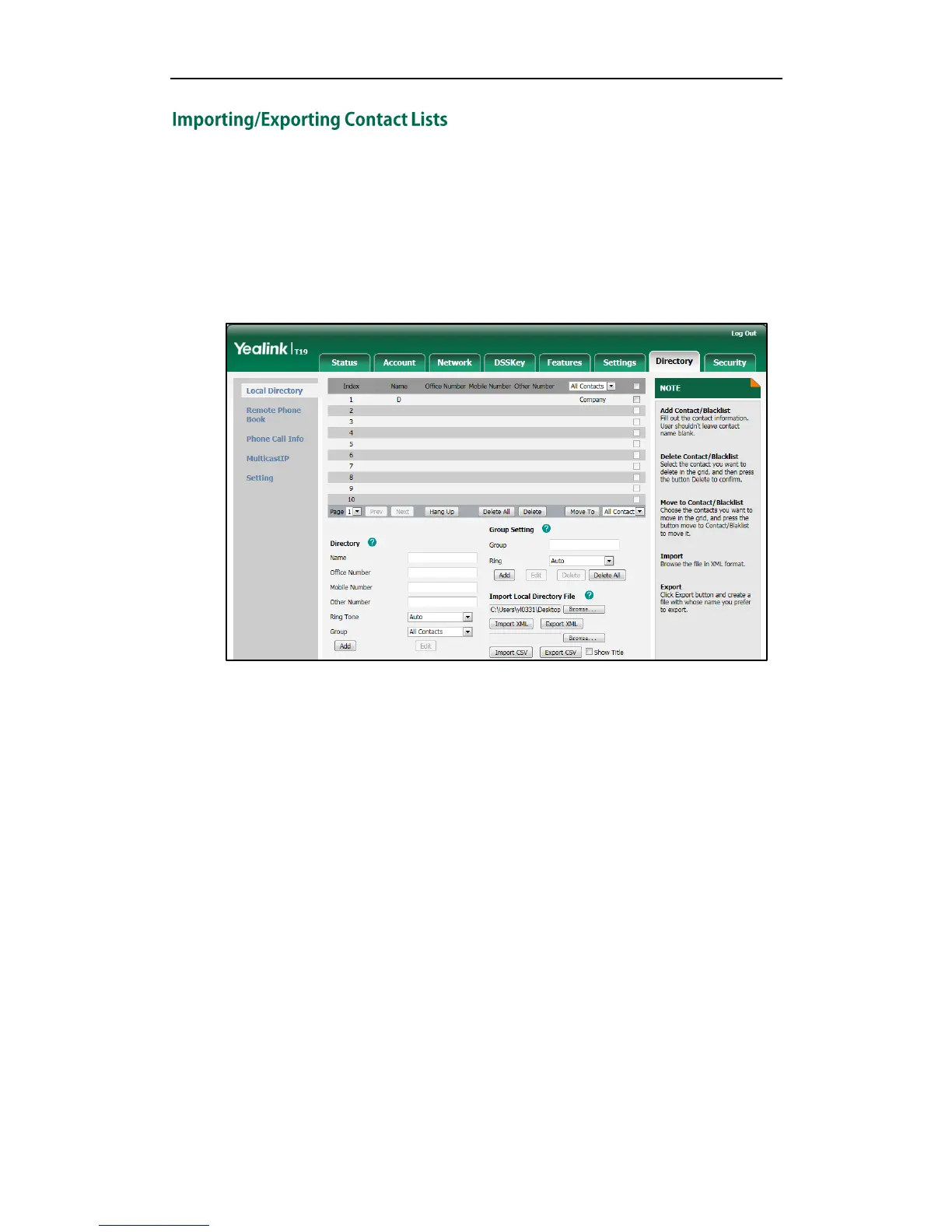

You can manage your phone’s local directory via phone user interface or web user
interface. But you can only import or export the contact list via web user interface.
To import an XML file of contact list via web user interface:
1. Click on Directory->Local Directory.
2. Click Browse to locate a contact list file (file format must be *.xml) from your local
system.
3. Click Import XML to import the contact list.
The web user interface prompts “The original contact will be covered, Continue?”.
4. Click OK to complete importing the contact list.
To import a CSV file of contact list via web user interface:
1. Click on Directory->Local Directory.
2. Click Browse to locate a contact list file (file format must be *.csv) from your local
system.
3. (Optional.) Check the Show Title checkbox.
It will prevent importing the title of the contact information which is located in the
first line of the CSV file.
4. Click Import CSV to import the contact list.
5. (Optional.) Mark the On radio box in the Delete Old Contacts field.
It will delete all existing contacts while importing the contact list.

Yealink SIP-T19P Specifications

General

Speakerphone	Yes
Voice codecs	CNG, G.711, G.723, G.726, G.729ab, VAD
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Front camera	No
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	1
Security algorithms	802.1x RADIUS, AES, HTTPS
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols	IPv6
Ethernet LAN (RJ-45) ports	2
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	185 mm
Height	143 mm
