Yealink SIP-T23G User Manual

Basic Call Features
113

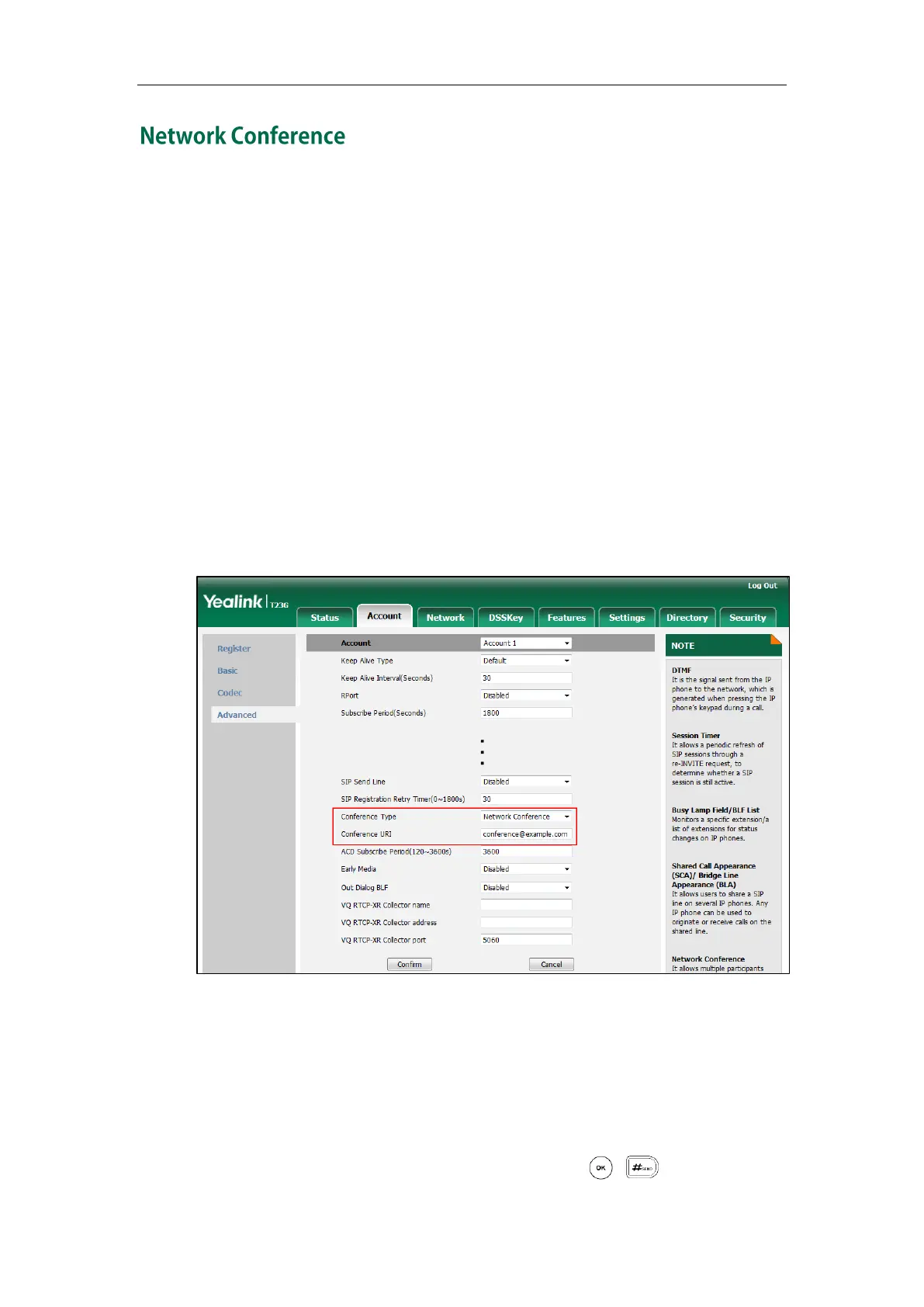

You can use network conference feature on the SIP-T23P/G IP phone to conduct a
conference with multiple participants.
This feature allows you to perform the following:
 Join two calls together into a conference call.
 Invite another party into an active conference call.
To use this feature, contact your system administrator for the network conference URI in
advance.
To configure network conference via web user interface:
1. Click on Account->Advanced.
2. Select the desired account from the pull-down list of Account.
3. Select Network Conference from the pull-down list of Conference Type.
4. Enter the conference URI (e.g., conference@example.com) in the Conference URI
field.
5. Click Confirm to accept the change.
To set up a network conference call:
1. Place a call to the first party.
2. Press the Conf soft key to place a new call.
The active call is placed on hold.
3. Enter the number of the second party and then press , , or the Send soft

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
