Yealink SIP-T23G User Manual

Advanced Phone Features
133
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
5. Enter the group name in the Label field.
6. Press the Save soft key to accept the change.
7. Repeat steps 2 to 6, you can add more paging groups.
Paging list is configurable via web user interface at the path: Directory->Multicast IP.

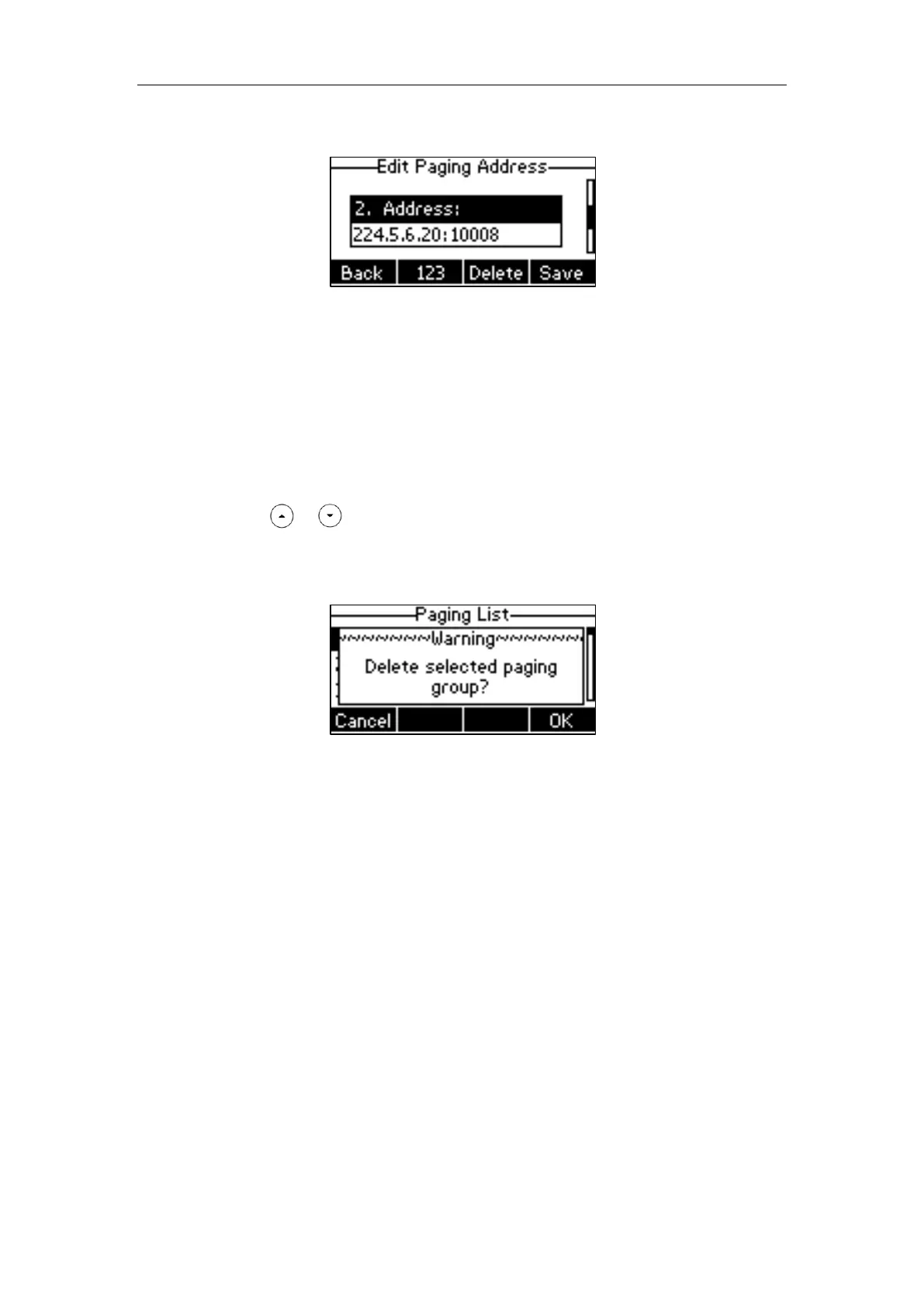

To delete a paging group via phone user interface:
1. Press the paging list key when the phone is idle.
2. Press or to select a desired group.
3. Press the Option soft key and then select Delete.
The LCD screen prompts “Delete selected paging group?”.
4. Press the OK soft key to accept the change or the Cancel soft key to cancel.
If you want to delete all paging groups, you can press the Del All soft key.
You can also configure the phone to use a default codec for sending multicast RTP
stream via web user interface.
To configure a default codec for multicast paging via web user interface:
1. Click on Features->General Information.

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
