Yealink SIP-T23G User Manual

User Guide for the SIP-T23P/G IP Phone
144
The default value is 1. In this example, the value is set to 2.
4. Click Confirm to accept the change.

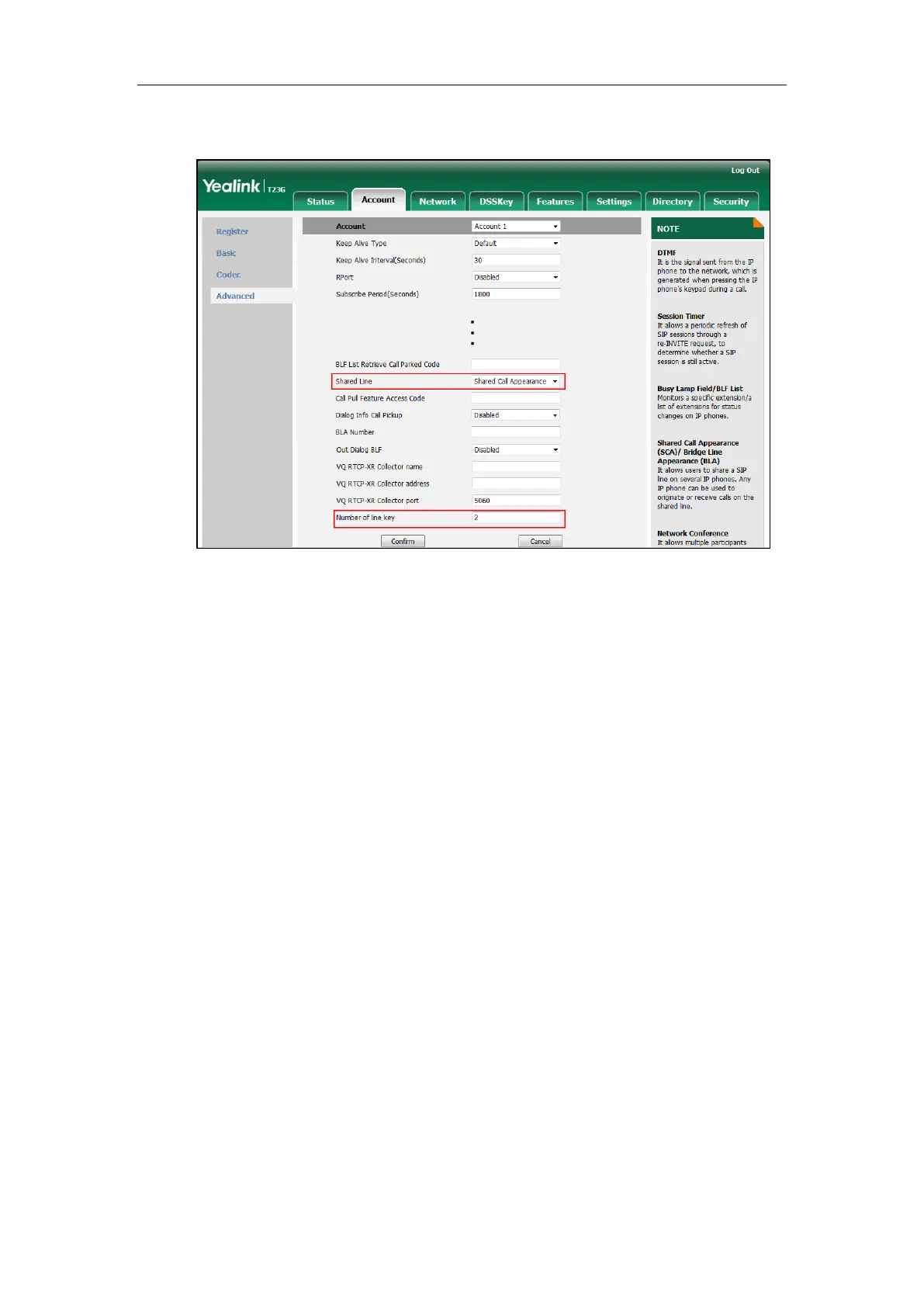

The phone B will automatically configure the line keys from the first unused DSS key,
according to the configured number in the Number of line key field.
Configuring private hold soft key or private hold key
Public hold allows any shared line to retrieve the held call. Private hold only allows the
hold party to retrieve the held call. For example, you can retrieve the held call on either
phone A or phone B when you place a call on public hold; you can retrieve the held call
only on phone A when you place a call on private hold on phone A. By default, the
private hold soft key isn’t displayed on the LCD screen. You need to configure either the
private hold soft key or a private hold key before you place the call on private hold.
To configure the private hold soft key via web user interface:
1. Click on Settings->Softkey Layout.
2. Select Enabled from the pull-down list of Custom Softkey.
3. Select On Talk from the pull-down list of Call States.

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
