Yealink SIP-T23G User Manual

User Guide for the SIP-T23P/G IP Phone
160

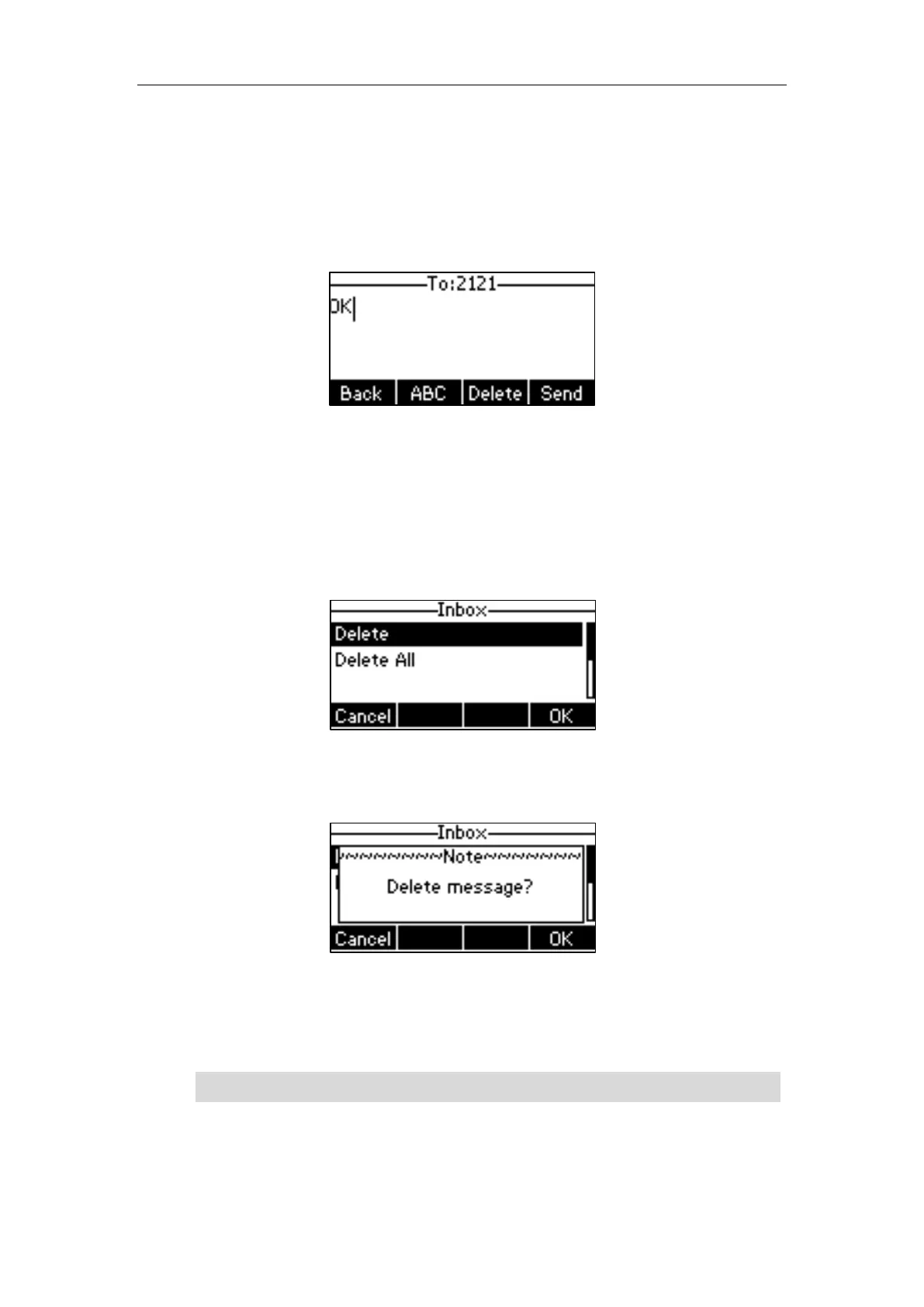

To reply a text message:
1. Press Menu->Message->Text Message->Inbox.
2. Select the desired message and then press the Reply soft key.
3. Compose the new text message. You can press the abc soft key to change the
input mode.
4. Press the Send soft key after completing the content.
5. Check the From and To fields, and then press the Send soft key.
To delete a text message:
1. Press Menu->Message->Text Message->Inbox (Sentbox, Outbox or Draftbox).
2. Select the desired message and then press the Delete soft key.
3. Select Delete to delete the desired message, and then press the OK soft key.
The LCD screen prompts “Delete message?”.
4. Press the OK soft key to delete this message or the Cancel soft key to cancel.
You can also delete all text messages by pressing the Delete soft key and then select
Delete All. For more information, refer to the above steps.
Note
You can also delete a specific message after retrieving by pressing the Delete soft key.

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
