Yealink SIP-T23G User Manual

User Guide for the SIP-T23P/G IP Phone
48
If Local Directory is removed from the directory (refer to Directory on page 46), press
Menu->Directory->Local Directory to enter the local directory.

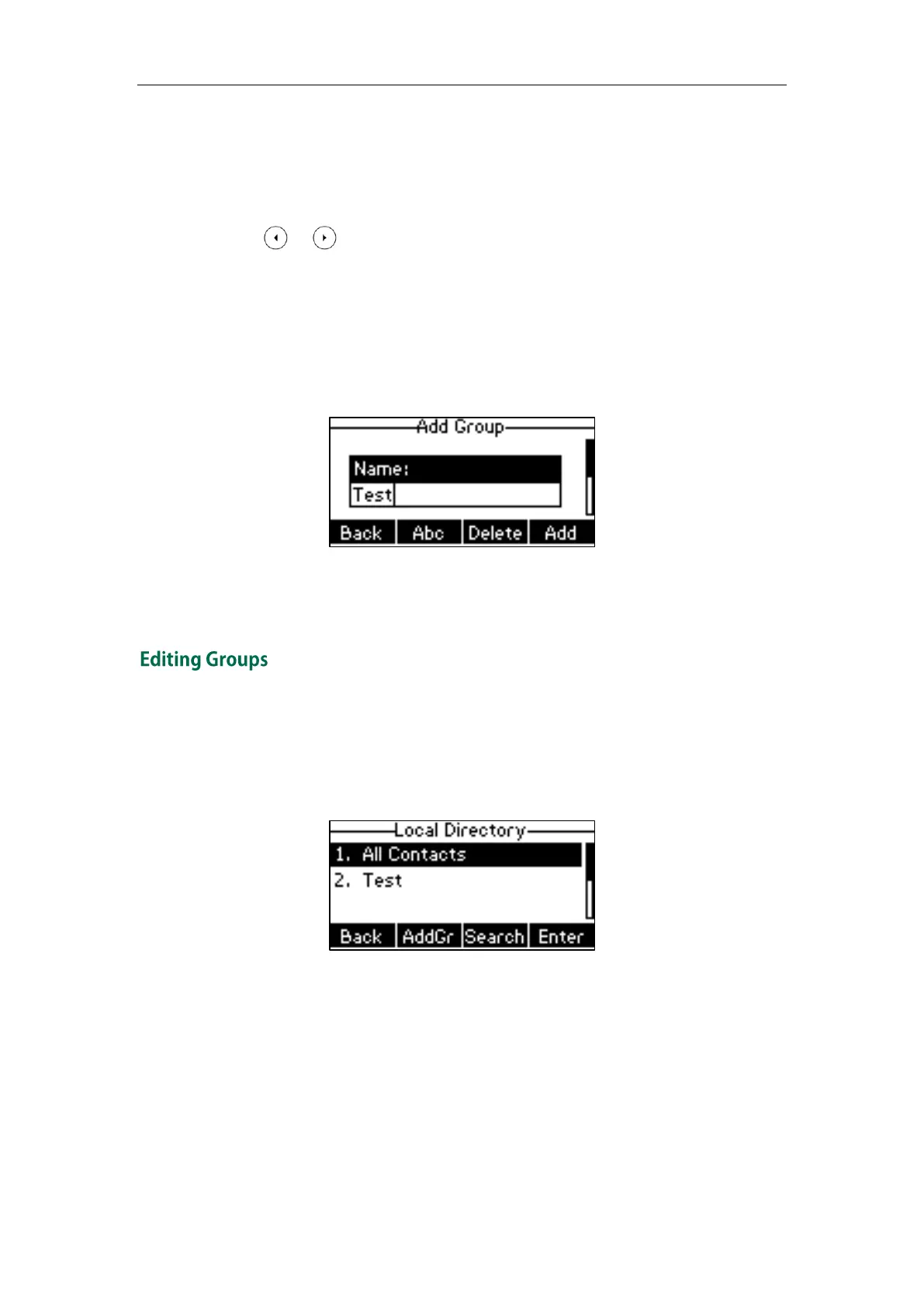

2. Press the AddGr soft key.
3. Enter the desired group name in the Name field.
4. Press or , or the Switch soft key to select the desired group ring tone from
the Ring field.
If Auto is selected, this group will use the ring tone according to the priority: Contact
ring tone (refer to Adding Contacts) >Account ring tone (refer to Ring
Tones) >Phone ring tone (refer to Ring Tones). If a specific ring tone is selected, this
group will use the ring tone according to the priority: Contact ring tone (refer to
Adding Contacts) >Group ring tone.
5. Press the Add soft key to accept the change or the Back soft key to cancel.
You can also edit or delete any newly added contact groups.
To edit a group in the local directory:
1. Press the Dir soft key.
The IP phone enters the local directory directly as there is only Local Directory
enabled in the directory by default.
If Local Directory is removed from the directory (refer to Directory on page 46),
press Menu->Directory->Local Directory to enter the local directory.
2. Select the desired contact group.

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
