Yealink SIP-T23G User Manual

User Guide for the SIP-T23P/G IP Phone
92

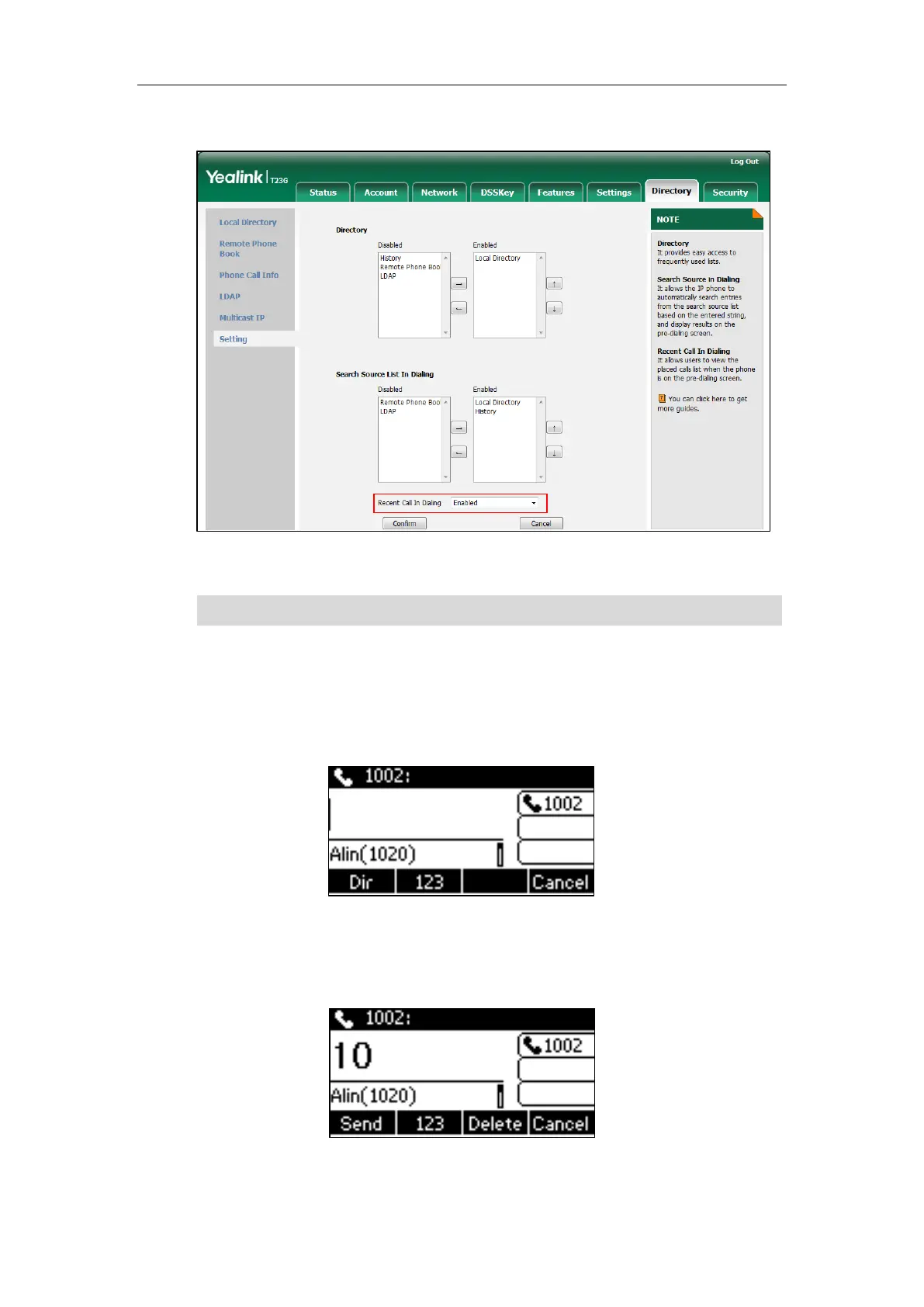

2. Select Enabled from the pull-down list of Recent Call In Dialing.
3. Click Confirm to accept the change.
Note
To view placed calls list when the phone is on the pre-dialing screen:
1. Pick up the handset, press the Speakerphone key or press the line key.
The LCD screen displays the placed calls list.
You can also enter a few continuous characters of the contact name or continuous
numbers of the contact number (office, mobile or other number) to search from
placed calls list.
Recent call in dialing is configurable via web user interface only.

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
