Yealink SIP-T40G Configuration Guide

BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK T4X IP PHONE 20-BD5476-00
©
2017 BROADSOFT INC. PAGE 61 OF 150

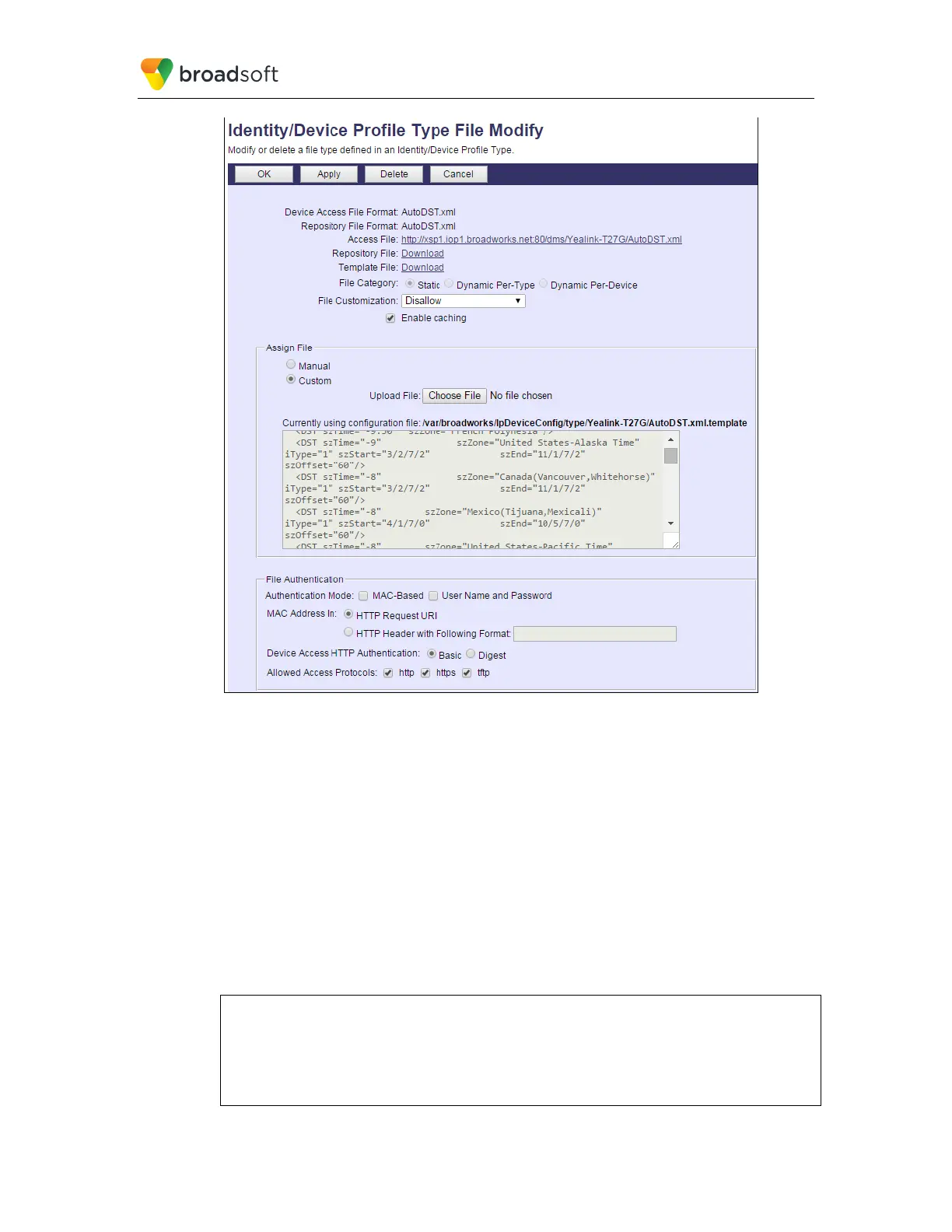

Figure 33 Static File Settings
5.2.2.2.3 Time Zone Mapping
The CPE kit contains a time zone properties file for each device model. This file maps the
BroadWorks user’s time zone settings to the device’s time zone settings.
This time zone mapping file must be added to the
/usr/local/broadworks/bw_base/conf/dms directory on the Application Server using the
following file name format: TimeZoneAliasLabels_<Device_Type_Name>.properties.
For example, if the device type name is Yealink_T46G, the time zone mapping file name
must be TimeZoneAliasLabels_Yealink_T46G.properties. A space in the device name
must be converted to a “+” in the file name. A separate TimeZoneAlias file must be
provided for each device profile type, corresponding to each Yealink T4x IP Phone model.
The following is an example of the file contents:
US_ALASKA=-9 cat
US_HAWAII=-10
CANADA_PACIFIC_TIME=-8
MEXICO_PACIFIC_TIME=-8
US_PACIFIC_TIME=-8
US_ARIZONA=-7

Yealink SIP-T40G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	No
Security algorithms	AES, HTTPS, SSL/TLS
Networking standards	IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Voice codecs	G.711, G.711a, G.711u, G.722, G.726, G.729ab
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.6 W
Certification	CE, FCC, ISO 9001
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Volume control	Digital
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	3 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	175 mm
Width	212 mm
Height	54 mm
