Yealink SIP-T52S Auto Provisioning Guide

Obtaining the Provisioning Server Address
33
Press the OK soft key.
After the above configuration is completed, the IP phone will connect to the configured
provisioning server and perform auto provisioning during startup.
Plug and Play (PnP) Server
Yealink IP phones support obtaining the provisioning server address from the PnP server. The IP
phone broadcasts the PnP SUBSCRIBE message to obtain the provisioning server address during
startup. To use Plug and Play, make sure this feature is enabled.

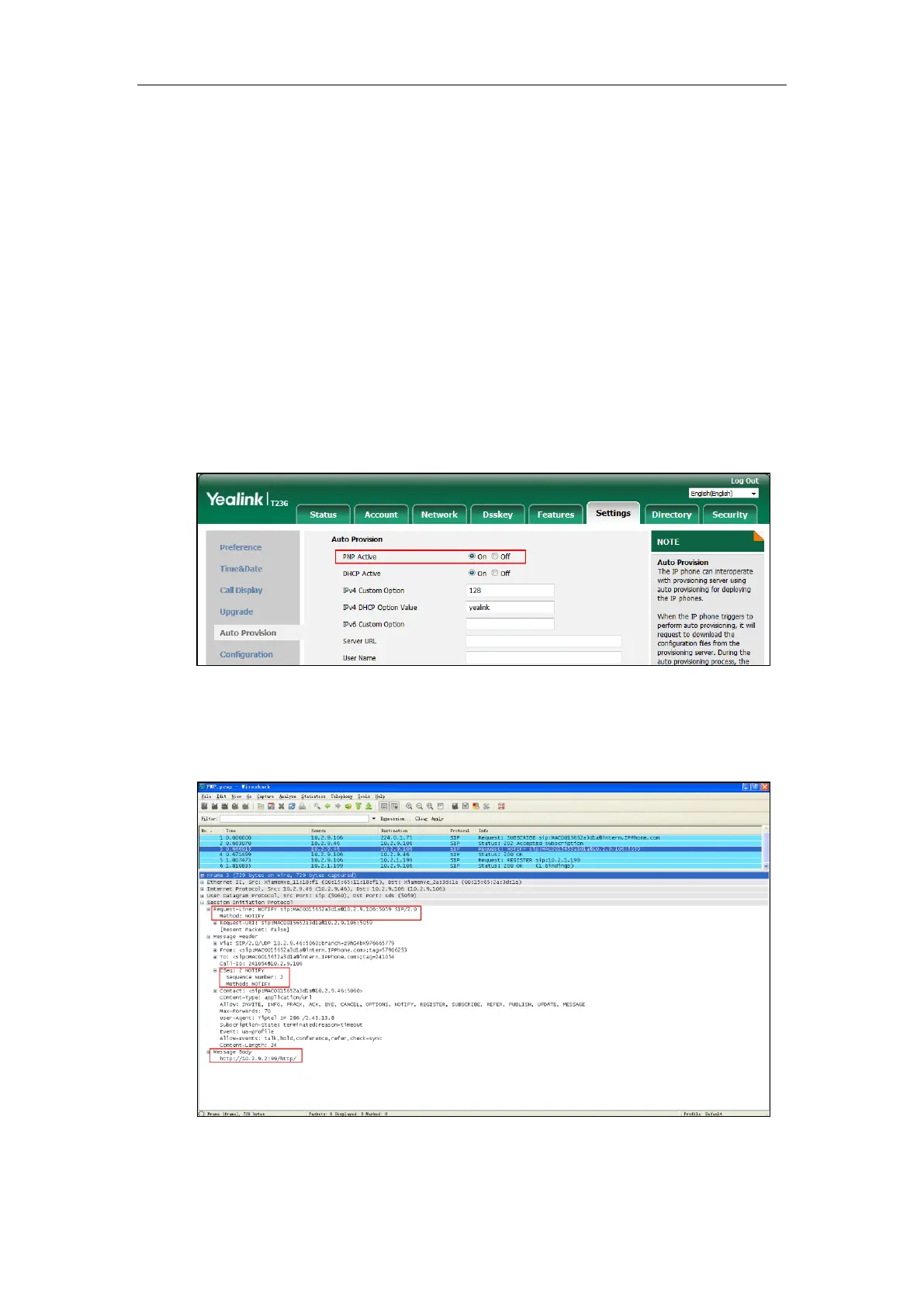

To configure PnP via web user interface:
1. Click on Settings->Auto Provision.
2. Mark the On radio box in the PNP Active field.
3. Click Confirm to accept the change.
Any PnP server activated in the network responses with a SIP NOTIFY message, and an
address of the provisioning server is contained in the message body.
After the IP phone obtains the provisioning server address from the PNP server, it will connect
to the provisioning server and perform auto provisioning during startup.

Yealink SIP-T52S Specifications

General

Touchscreen	-
Display diagonal	2.8 \
Backlight display	Yes
Display resolution	320 x 240 pixels
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	12
AC adapter input voltage	100 - 240 V
Bluetooth version	2.1+EDR
Security algorithms	802.1x RADIUS, HTTPS, MD5
Ethernet LAN interface type	Gigabit Ethernet
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	G.722, G.723, G.723.1, G.726, OPUS, iLBC
Volume control	Digital
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Front camera	No
Operating system installed	Linux

Weight and Dimensions

Depth	212 mm
Width	211.6 mm
Height	166.8 mm
