Yealink IP Phone XML Objects
65

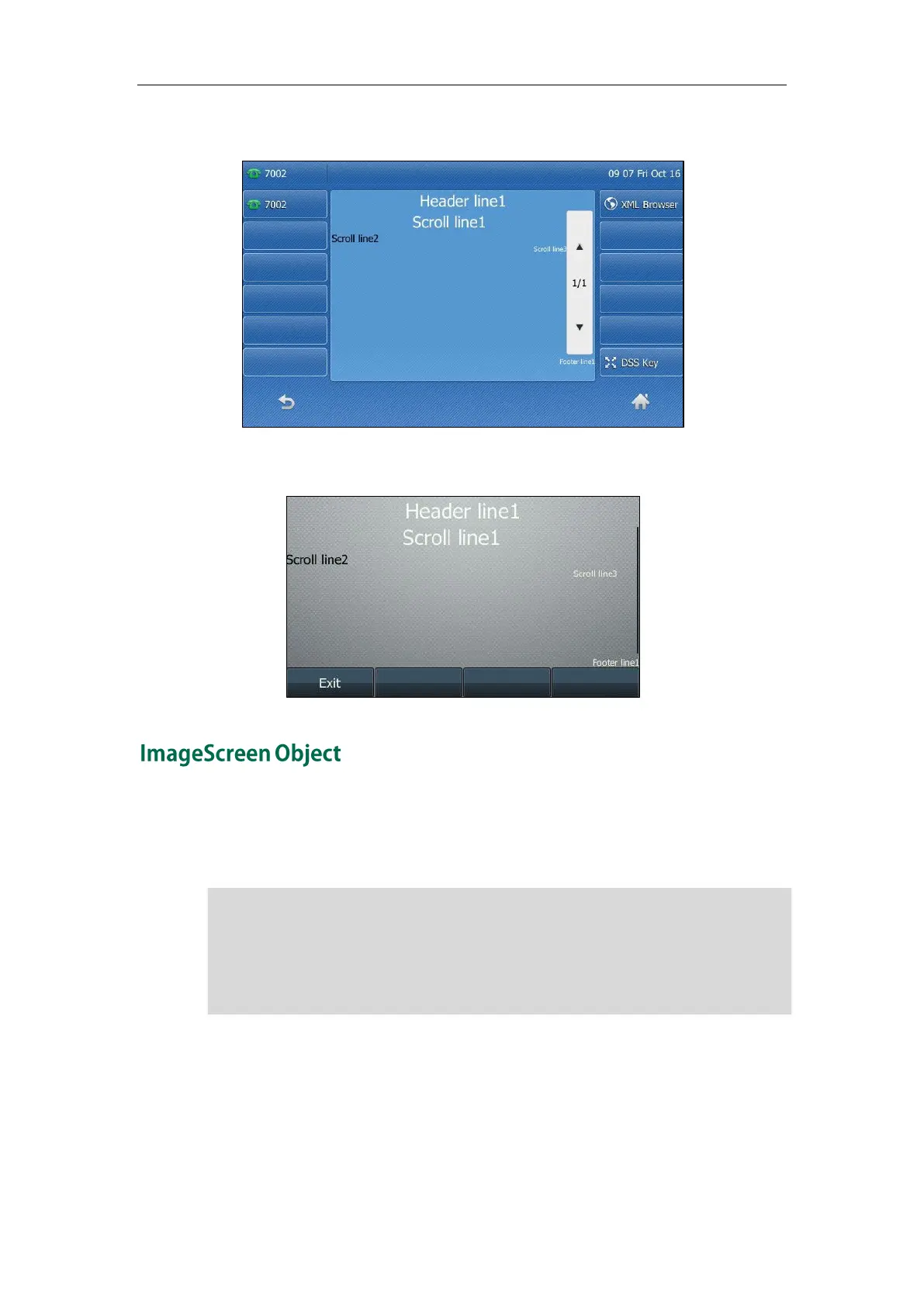

The screenshot of the SIP-T48G IP phone user interface for reference is shown as below:
The screenshot of the SIP-T46G IP phone user interface for reference is shown as below:
The ImageScreen object allows users to display simple image on the IP phones. The
user can specify where the image should be placed by setting horizontal and vertical
alignment of the upper left hand corner, along with the height and width of the image.
Note
For SIP-T42G, SIP-T41P, SIP-T40P, SIP-T27P, SIP-T23P/G, SIP-T21(P) E2, SIP-T19(P) E2 and CP860
IP phones, the image is a “dob” file, which is specified as a series of hexadecimal
characters. For more information on converting a “dob” file to hexadecimal string, refer
to Customizing an Image File on page 109.
For SIP-T29G, SIP-T46G, SIP-T48G and SIP VP-T49G IP phones, the image is a “jpg”, “bmp”
or “png” file located on a server, which can be downloaded by the phone.
