Yealink W76P User Manual

10
Entering the Main Menu
You can enter the main menu to view the features.
Press the OK key when the handset is idle.
The main menus are displayed on the screen as icons.
Accessing the Main Menu Feature
After entering the main menu, you can use the navigation keys to access the desired menu.
1. Press the OK key when the handset is idle.
The main menus are displayed on the screen as icons.
2. Press the navigation keys to select a dierent menu icon.
The name of the associated menu appears on the top of the screen.
3. Press OK to open the selected menu.
Note: You can only access Status and Settings if the handset is not registered to a base station.
Submenu

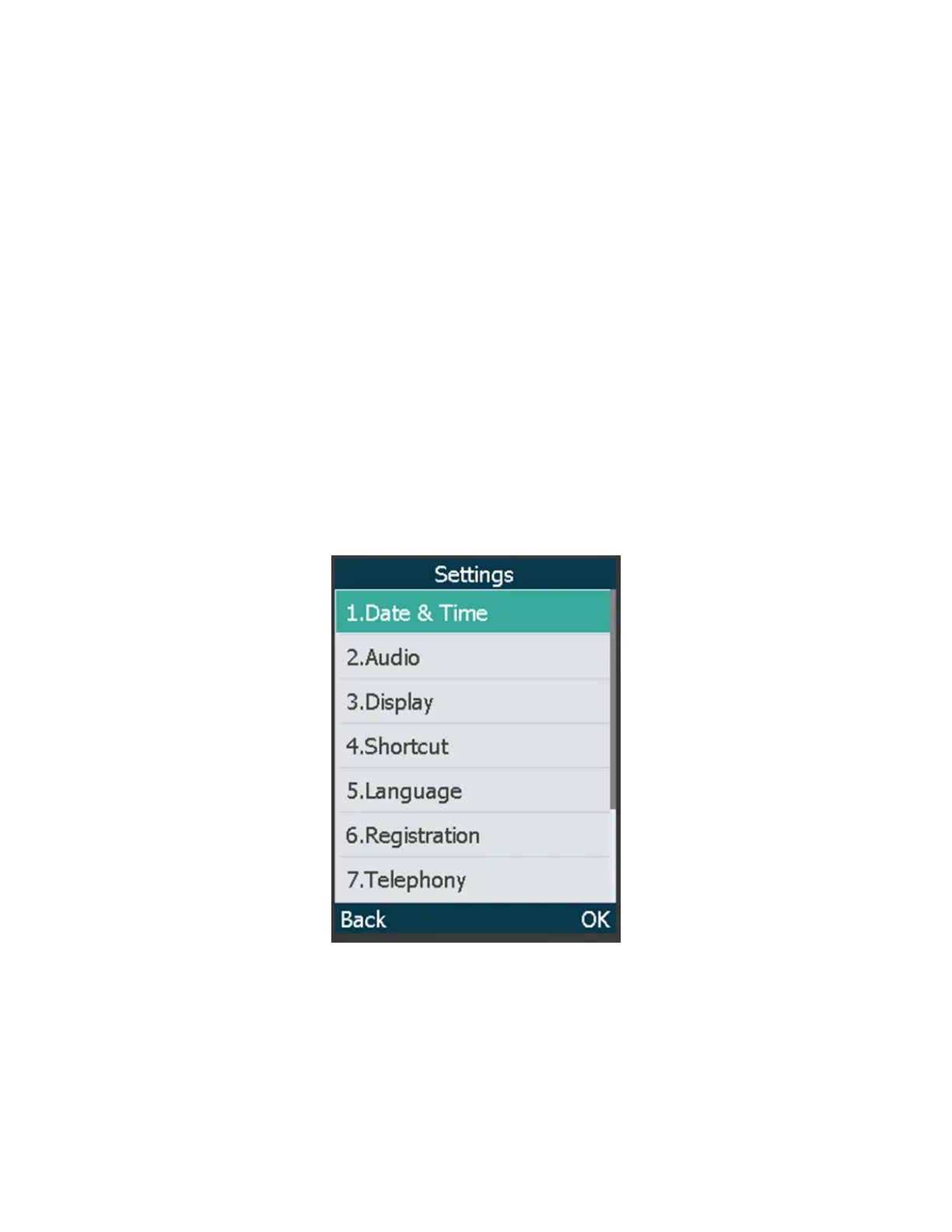

The functions in the submenus are displayed as lists. You can open the submenu to access a
function. For example, if you select the Settings menu, the submenu is displayed below:
Accessing a Submenu Feature
After entering a certain menu, you can use the navigation keys to access the desired submenu.
1. Press the up and down navigation keys to highlight the desired submenu.
2. Press OK to open the submenu.
3. Press the On-hook key or Back to return to the previous screen.

Yealink W76P Specifications

General

Mounting	Desk/Wall
Device lock	Yes
Handset type	Wireless handset
Product type	IP mobile phone
Product color	Gray
Wi-Fi	-
Networking standards	IEEE 802.1af
Ethernet LAN data rates	10, 100 Mbit/s
Frequency band	1.9 GHz
Lines quantity	20 lines
Phonebook capacity	1000 entries
AC adapter input voltage	100 - 240 V
Number of function keys	6
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	- pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Base dimensions	130 x 100 x 25.1 mm
Handset dimensions (WxDxH)	175 x 53 x 20.3 mm
