Yealink W76P User Manual

12
• Outgoing Line: Display the registered line number and the corresponding line (display user
name by default). The default outgoing line will be displayed in the first line of the screen.
• Line Status: Display the icon of line status. The icon indicates the corresponding feature
assigned to the line.
Icons on the Idle Screen
By viewing the icons on the idle screen, you can easily get the current phone status, such as
message status.
ICON DESCRIPTION
The ringer volume is 0 and the phone is in the silent mode.
The phone has enabled the Call Forward feature.
The keypad is locked.
The phone has new voice mails.
The phone has enabled the Do Not Disturb (DND) feature.
Registered handset icon (for example, “1” is internal handset number, indicating the handset is the Handset 1
of the base station)

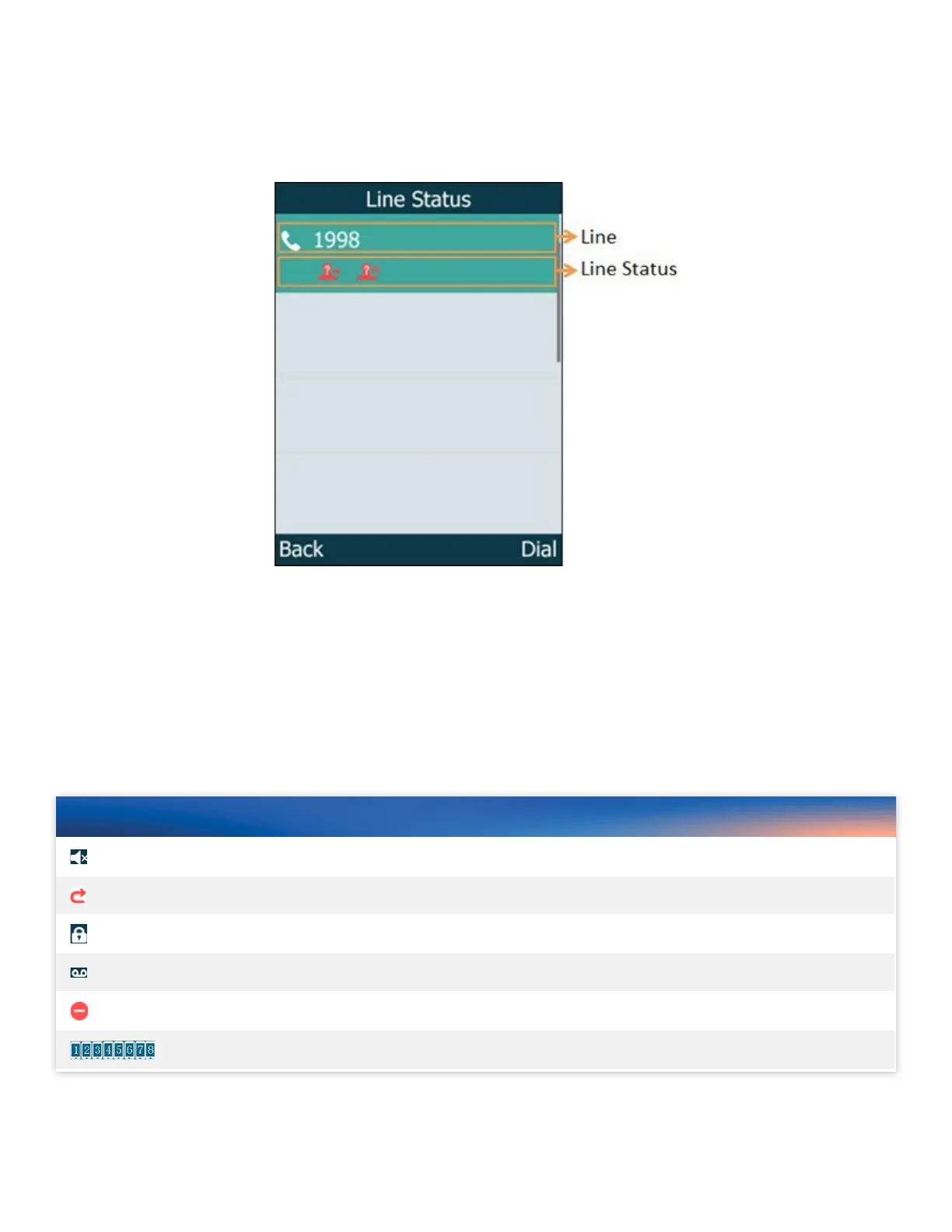

Line Status Screen
The line status screen is made up of the outgoing line and line status.
When the handset is idle, you can press Line (or SCA), to enter the line status screen. The line status
screen is displayed below:

Yealink W76P Specifications

General

Mounting	Desk/Wall
Device lock	Yes
Handset type	Wireless handset
Product type	IP mobile phone
Product color	Gray
Wi-Fi	-
Networking standards	IEEE 802.1af
Ethernet LAN data rates	10, 100 Mbit/s
Frequency band	1.9 GHz
Lines quantity	20 lines
Phonebook capacity	1000 entries
AC adapter input voltage	100 - 240 V
Number of function keys	6
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	- pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Base dimensions	130 x 100 x 25.1 mm
Handset dimensions (WxDxH)	175 x 53 x 20.3 mm
