Yealink W76P User Manual

8

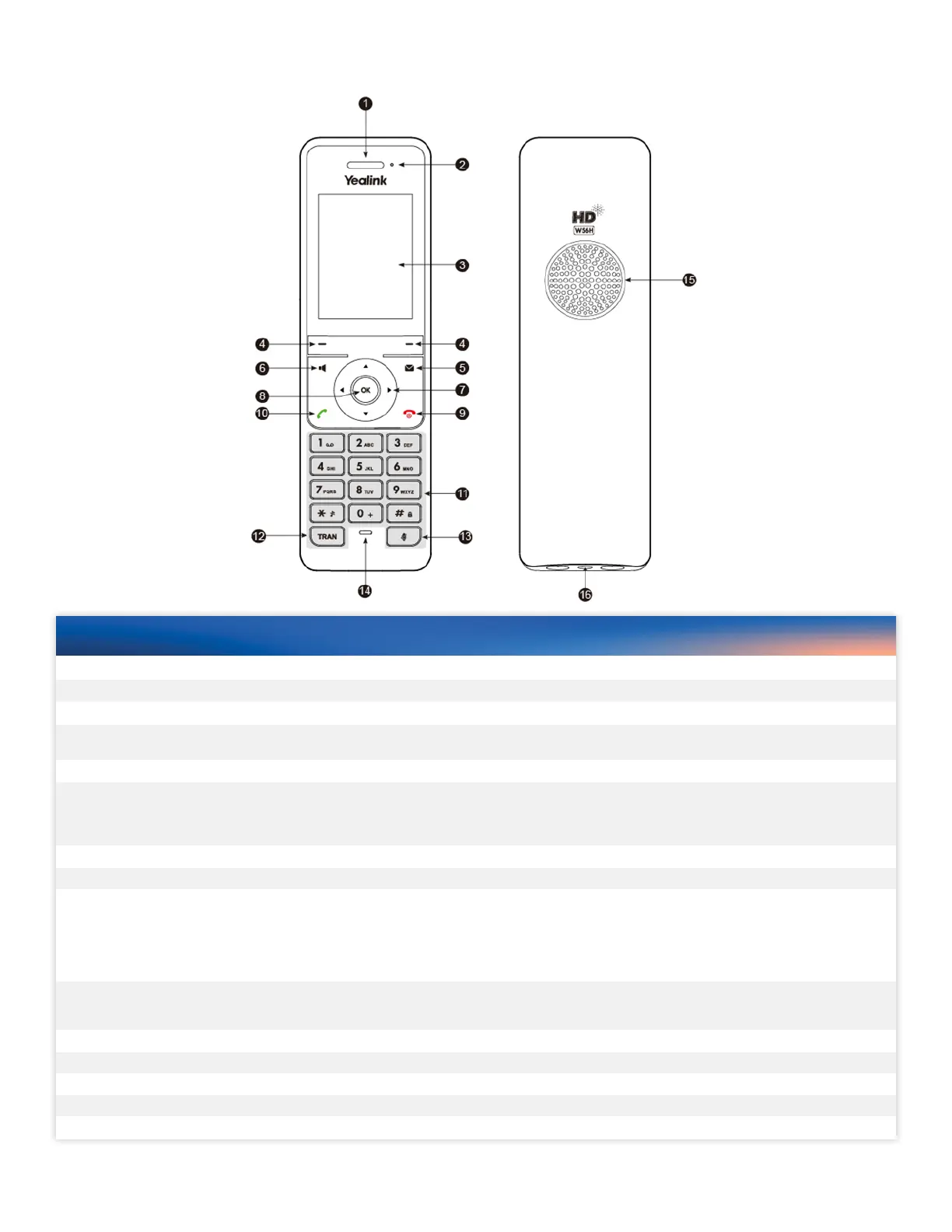

W56H Handset
NO. ITEM DESCRIPTION
1 Receiver Receives audio in receiver mode.
2 Power LED Indicator Indicates call status, message status, and charging status.
3 Phone Screen Shows information.
4 Soft Keys
Access the function directly. It depends on the operating
situation.
5 Message Keys Accesses the voice mail or missed call.
6 Speakerphone Key
• Switches among the receiver, headset, and handsfree
modes.
• Answers an incoming call.
• Places a call in handsfree mode.
7 Navigation Keys Scroll through information or options on the screen.
8 OK Key Confirms actions or enters the main menu.
9 On-hook Key/Power Key
• Press briefly to return to the previous screen.
• Long press to return to the idle screen.
• Press to turn the handset on.
• Long press on the idle screen to turn the handset off.
• Cancels actions or ends a call.
• Rejects an incoming call.
10 O-hook Key
• Answers an incoming call.
• Enters the redial calls list.
• Places a call-in receiver or headset mode.
11 Keypad Provides digits, letters, and special characters.
12 TRAN Key Transfers a call to another party.
13 Mute Key Toggles mute feature on or off.
14 Microphone Picks up audio.
15 Speaker Outputs audio in handsfree mode.

Yealink W76P Specifications

General

Mounting	Desk/Wall
Device lock	Yes
Handset type	Wireless handset
Product type	IP mobile phone
Product color	Gray
Wi-Fi	-
Networking standards	IEEE 802.1af
Ethernet LAN data rates	10, 100 Mbit/s
Frequency band	1.9 GHz
Lines quantity	20 lines
Phonebook capacity	1000 entries
AC adapter input voltage	100 - 240 V
Number of function keys	6
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	- pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Base dimensions	130 x 100 x 25.1 mm
Handset dimensions (WxDxH)	175 x 53 x 20.3 mm
