INSTALLATION
A
K L M

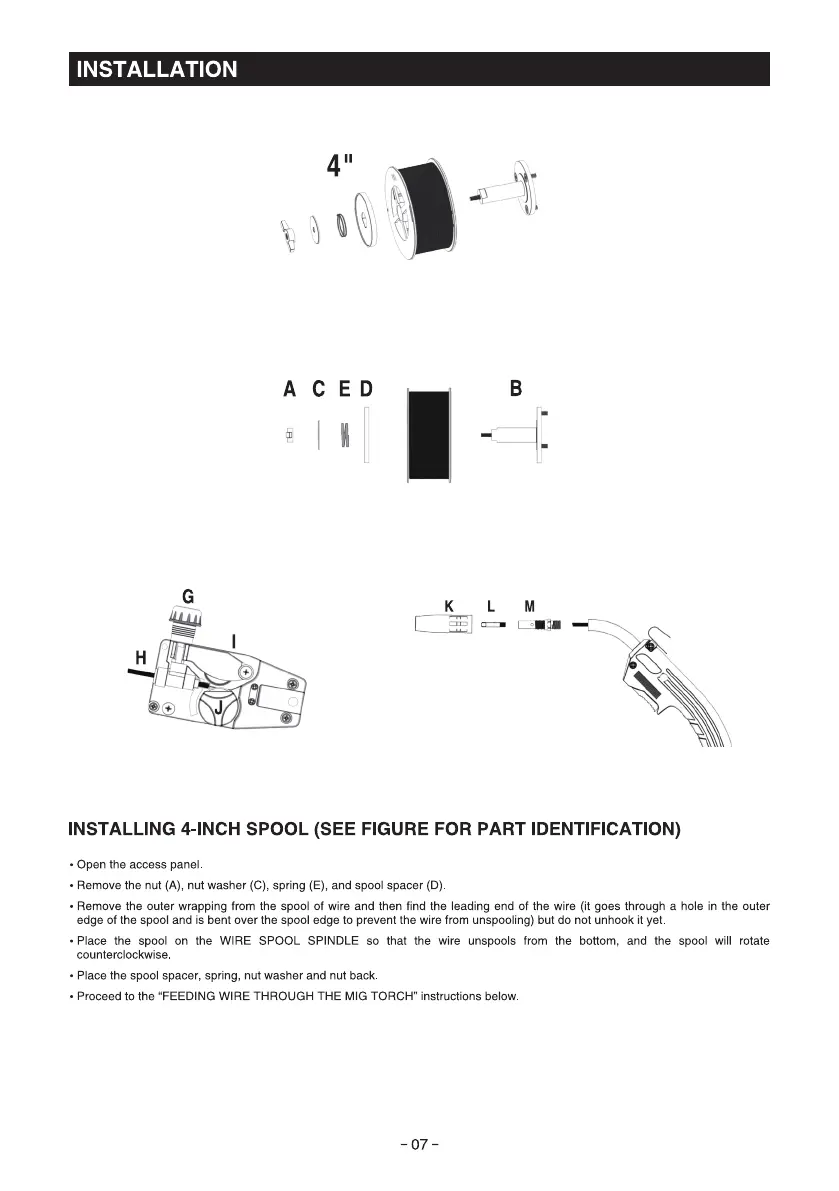

INSTALLING 4-INCH SPOOL (SEE FIGURE FOR PART IDENTIFICATION)
• Open the access panel.
• Remove the nut (A), nut washer (C), spring (E), and spool spacer (D)
• Remove the outer wrapping from the spool of wire and then find the leading end of the wire (it goes through a hole in the outer
edge of the spool and is bent over the spool edge to prevent the wire from unspooling) but do not unhook it yet.
• Place the spool On the WIRE SPOOL SPINDLE so that the wire unspools from the bottom, and the spool will rotate
counterclockwise
• Place the spool spacer, spring, nut washer and nut back.
• proceed to the "FEEDING WIRE THROUGH THE MIG TORCH" instructions below
- 07 -
