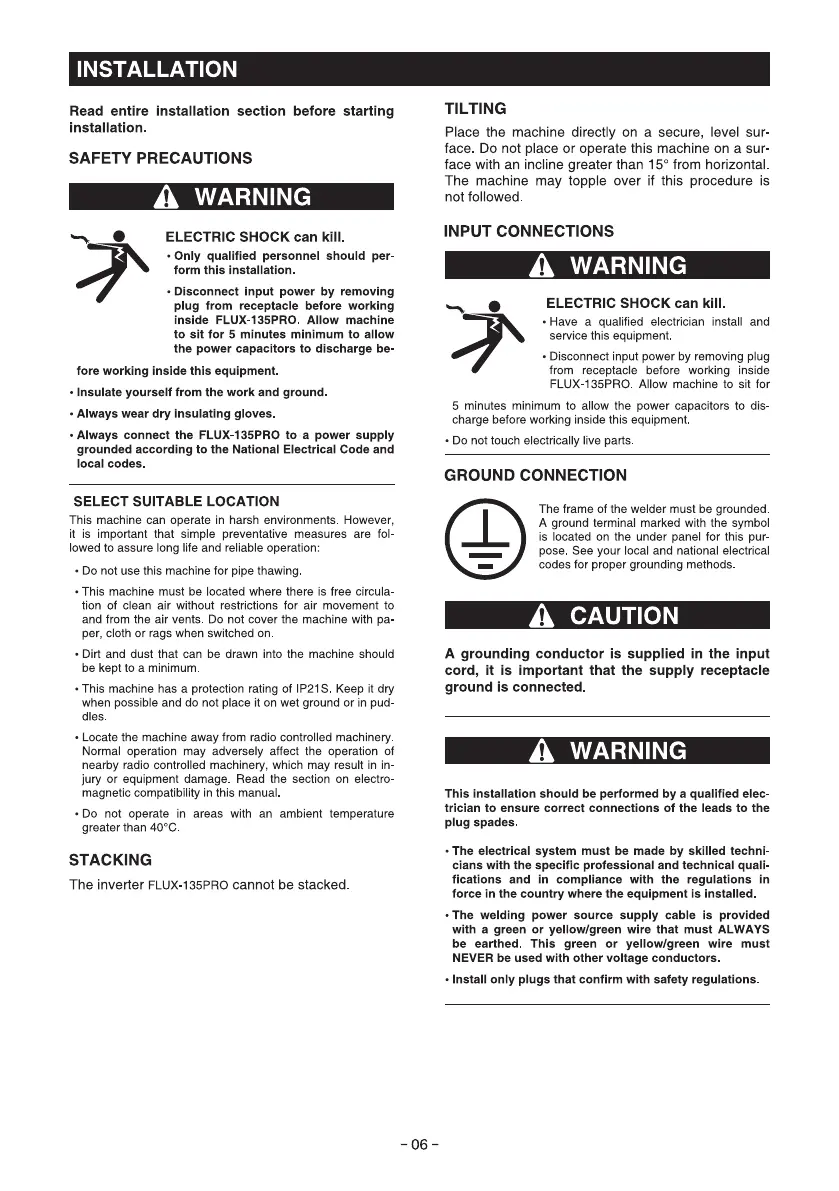

INSTALLATION
Read entire installation section before starting
installation.
SAFETY PRECAUTIONS
A WARNING
ELECTRIC SHOCK can kill.
• Only qualified personnel should per-
form this installation.
• Disconnect input power by removing
plug from receptacle before working
inside FLUX-135PRO. Allow machine
to sit for 5 minutes minimum to allow
the power capacitors to discharge be•
fore working inside this equipment.
• Insulate yourself from the work and ground.
• Always wear dry insulating gloves.
• Always connect the FLUX-135PRO to a power supply
grounded according to the National Electrical Code and
local codes.
SELECT SUITABLE LOCATION
This machine can operate in harsh environments However,
it is important that simple preventative measures are fol-
lowed to assure long life and reliable operation:
• DO not use this machine for pipe thawing
• This machine must be located where there is free circula
tion of clean air without restrictions for air movement to
and from the air vents. Do not cover the machine with pa
per, cloth or rags when switched on
• Dirt and dust that can be drawn into the machine should
be kept to a minimum
• This machine has a protection rating Of IP21S Keep it dry
when possible and do not place it on wet ground or in pud
dles
• Locate the machine away from radio controlled machinery
Normal operation may adversely affect the operation of
nearby radio controlled machinery, which may result in in
jury or equipment damage. Read the section on electro-
magnetic compatibility in this manual.
• Do not operate in areas with an ambient temperature
greater than 400C
STACKING
The inverter FLUX-135PRO cannot be stacked.
TILTING
Place the machine directly on a secure, level sur-
face. Do not place or operate this machine on a sur-
face with an incline greater than 150 from horizontal.
The machine may topple over if this procedure is
not followed.
INPUT CONNECTIONS
A WARNING
ELECTRIC SHOCK can kill.
• Have a qualified electrician install and
service this equipment.
• Disconnect input power by removing plug
from receptacle before working inside
FLUX-135PRO Allow machine to sit for
5 minutes minimum to allow the power capacitors to dis
charge before working inside this equipment
• DO not touch electrically live parts
GROUND CONNECTION
The frame of the welder must be grounded
A ground terminal marked with the symbol
is located on the under panel for this pur
pose. See your local and national electrical
codes for proper grounding methods.
A CAUTION
A grounding conductor is supplied in the input
cord, it is important that the supply receptacle
ground is connected.
A WARNING
This installation should be performed by a qualified elec-
trician to ensure correct connections Of the leads to the
plug spades.
• The electrical system must be made by skilled techni-
cians with the specific professional and technical quali-
fications and in compliance with the regulations in
force in the country where the equipment is installed.
• The welding power source supply cable is provided
with a green or yellow/green wire that must ALWAYS
be earthed. This green or yellow/green wire must
NEVER be used with other voltage conductors.
• Install only plugs that confirm with safety regulations.
