SB165 | OWNER’S MANUAL
10
15

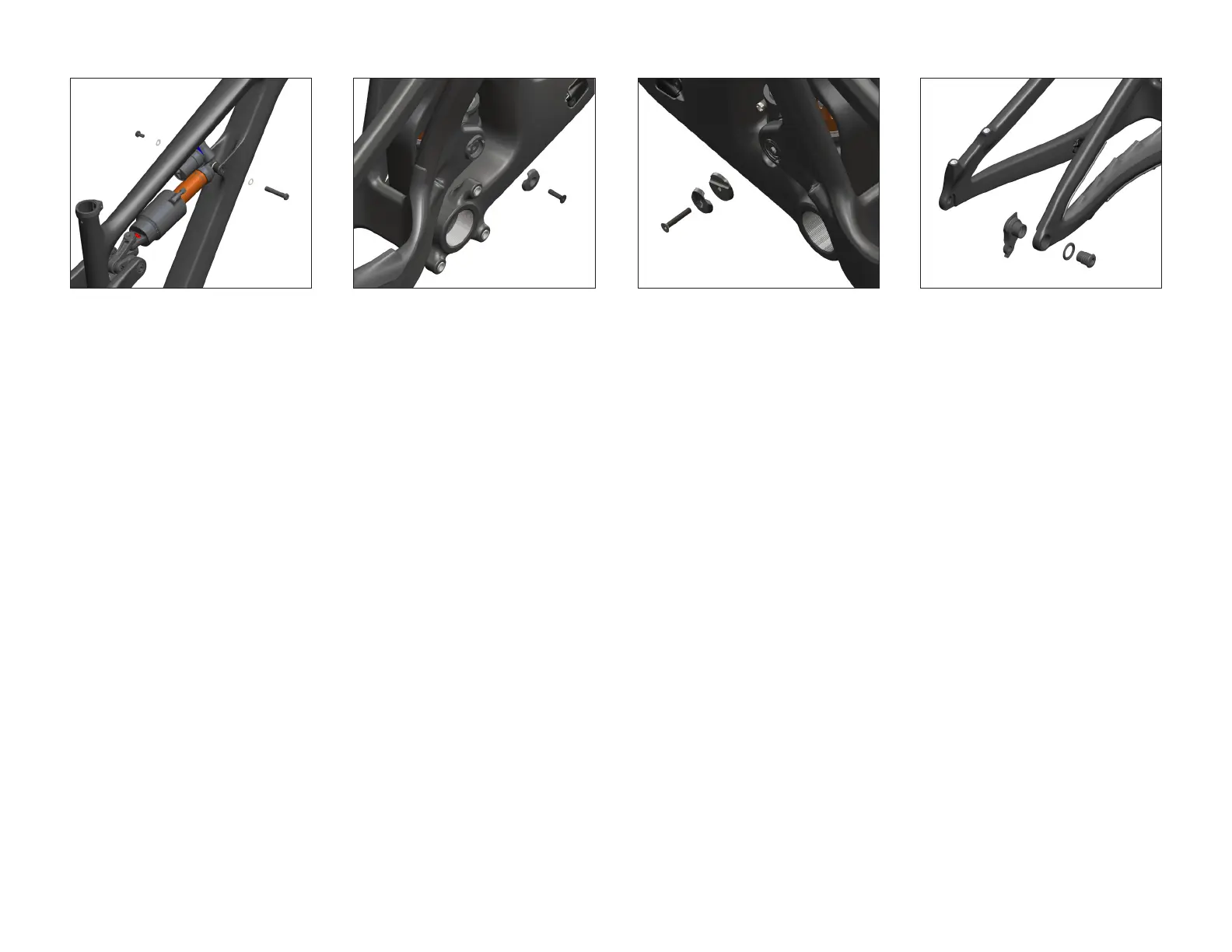

Install a Housing Clamp Cap (3.8) and Clamp
Base (3.6) onto the non-drive main pivot wedge
bolt with a M4 x 25L FHCS (3.26).
Tighten until snug. Hardware can be torqued to
2-3 Nm after housing installation.
13
Apply Blue 243 Loctite to threads of the M6 Male
Bolt (3.19). Install Female 8x45mm Bolt (3.18)
with Washer (3.21) through front Shock Eyelet
and secure with M6 Male Bolt (3.19) and Washer
(3.20).
Torque: 10 Nm
16
Install Univesal Hanger (3.34) into frame.
Do not use grease. Note that hanger cap
bolt is reverse threaded.
Torque: 25 Nm
14
Install Housing Clamp Cap (3.8) onto the drive-
side main pivot axle with a M4 x 16L FHCS (3.25)
Tighten until snug. Hardware can be torqued to
2-3 Nm after housing installation.
To Next Page
