YOKOGAWA AX01C Installation Manual

<4. Wiring>
32
IM 01E24A01-01EN
Remote Transmitter
AXFA11G
Optional
Code
Description
EW 5 pcs. of waterproof gland with JIS G3/4 female
EG 5 pcs. of waterproof gland
EU 5 pcs. of waterproof gland with union joint
EP 5 pcs. of plastic gland
IMPORTANT
Apply a blanking plug to the unused cable entry. Seal
the cable entries properly comply to usage state.
4.3.1 When waterproof property is neces-
sary (Wiring using waterproof glands)
IMPORTANT
To prevent water or condensation from entering the
transmitter housing, waterproof glands are recommended.
Do not over-tighten the glands or damage to the cables
may result. Tightness of the gland can be checked by
conrming that the cable is held rmly in place.
For working on the conduit or the exible tubes (G1/2),
remove the waterproof gland and attach them directly to
the cable entry.

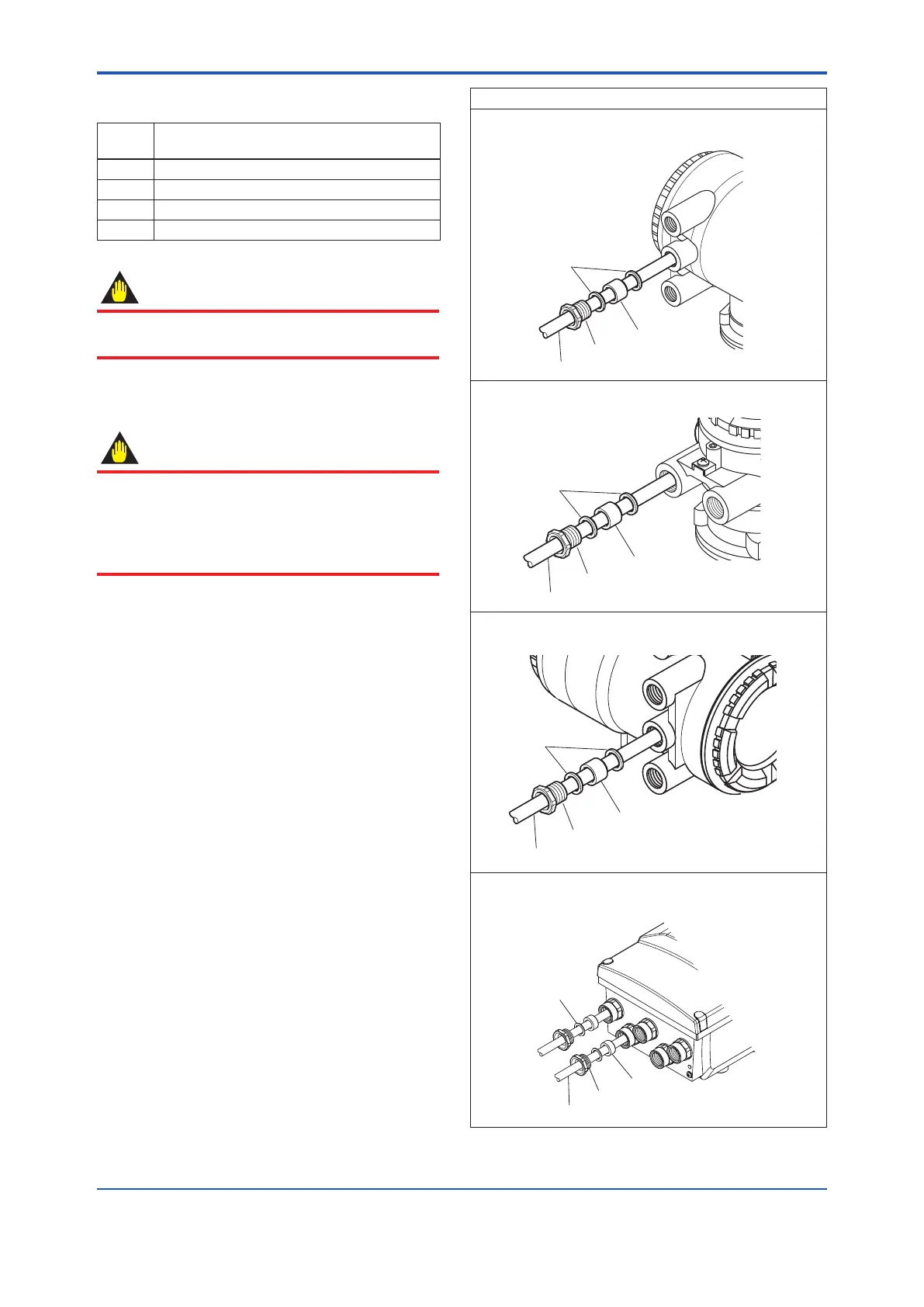

(1) Waterproof Gland
Integral Flowmeter
Optional code: EG2, EG3
Cable
Waterproof gland
Gasket
Washer
F0405.ai
Remote Sensor
Optional code: EG
Cable
Waterproof gland
Gasket
Washer
F0406.ai
Remote Transmitter (AXW4A)
Optional code: EG4, EG5
Cable
Waterproof gland
Gasket
Washer
F0407.ai
Remote Transmitter (AXG1A/AXFA11)
Optional code: EG5 (AXG1A), EG (AXFA11)
F0408.ai
Cable
Waterproof gland
Gasket
Washer
