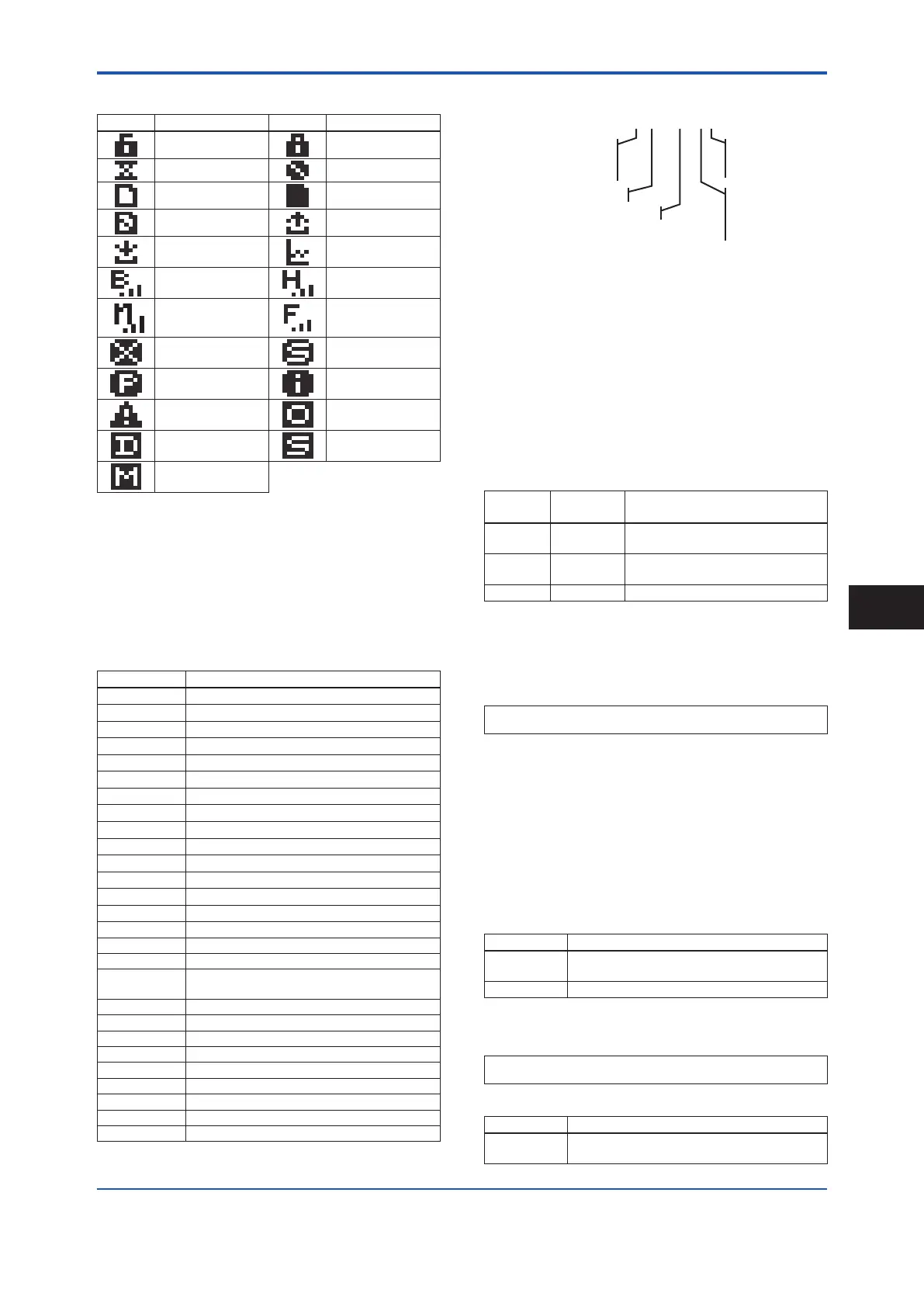

(2) Status icons
Icon Contents Icon Contents
Write protect Invalid
Write protect Valid
Device Busy Device Fault
Ready for microSD
card
Accessing microSD
card
Disable to access
microSD card
Uploading parameters
Downloading
parameters
Trend graph executing
BRAIN communication HART communication
Modbus
communication
FOUNDATION  eldbus
communication
System alarm occurs Setting alarm occurs
Process alarm occurs Information occurs
Warning occurs
Operation level:
Operator
Display Damping Valid
Operation level:
Specialist
Operation level:
Maintenance
(3) Data indication part
The process values are available to select 8 items
maximum on the display. It is possible to indicate 4 items
maximum on the display at the same time, and the rest 4
items are able to show by scrolling.
Table 5.2.1 Abbreviation table of process values to be
indicated on the display.
Abbreviation Contents
FLP(*1) Flow rate %
PRV(*1) Process value
VEL(*1) Flow velocity
VFL(*1) Volumetric  ow
MFL(*1) Mass  ow
FLB Flow rate in % bar graph
TL1(*1) Totalization value 1
TL2(*1) Totalization value 2
TL3(*1) Totalization value 3
TAG Tag No. (PD tag for F
OUNDATION
 eldbus type)
LTG Long Tag (for HART communication type only)
COM Communication protocol
ADH Adhesion diagnostic Level (Alarm at Level 4)
AO1(*1) Analog output value 1
TC1 Count value of totalizer 1
TC2 Count value of totalizer 2
TC3 Count value of totalizer 3
MOD
Information of Modbus communication setting
Display example (*2): R/001/19200/E/1
FR AI1 Flow rate
FRP AI1 Flow rate (%)
FRB AI1 Flow rate (%Bar)
AI1 AI1.OUT
AI2 AI2.OUT
AI3 AI3.OUT
IT1 IT1.OUT
IT2 IT2.OUT
AR AR.OUT
*1: Available to display the online trend graph.
*2: Explanation of display example
F0502.ai
Device address
Baud rate
Transmission mode
•
R: RTU
•
A: ASCII
Stop bit
•1: 1 bit
•2: 2 bit
Parity
•N: None
•O: Odd
•E: Even
Example: R/001/19200/E/1
5.2.2 Basic Con guration for Display
For paramter setting from display panel, con gurable
parameters differ by the three operational levels spec ed
in Table 5.2.2, and a passcode is needed to enter into
Setting mode. No passcode requires for “Operator”, and
a passcode corresponding to each level requires for
“Maintenance” or “Specialist”.
For parameter in details, read the user’s manual of
applicable communication type as listed in Table 1.1.
Table 5.2.2 Parameter setting from display panel and
operation level
Operation
Level
Reading
parameters
Writing parameters
Operator All parameters Parameters related with basic display
settings including display language.
Maintenance All parameters Parameters allowed for Operator level.
Parameters related with Zero adjustment.
Specialist All parameters All Parameters
The following parameters are available to “Operator” level
without passcode.
(1) Display Language Setting
Display Menu Path:
Device setup ► Language
The language on the display is set to “English” as default
at the factory shipment. Select the adequate language.
The selectable display language is different by the model
and suf x code (display code) speci ed when ordering.
Position of the display code:
Integral Type:
AXW--
Remote Transmitter:
AXW4A-
AXG1A-G0001
Display code Selectable display language
1 English, French, German, Italian, Spanish,
Portuguese, Japanese, or Russian
2 English or Chinese
(2) Display Contrast Setting (shading)
Display Menu Path:
Device setup►Detailed setup►Display set►Optional con g►Contrast
Available to change the contrast of the display.
Setting item Contents
-5 to +5 Set the contrast of the display
(The value is small: Low, and the value is big: High)
Basic Operating Procedures
5
