YOKOGAWA DLM4058 User Manual

Common Operations
3-1
IM DLM4038-03EN
1
2
3
4
5
6
App
Index
Chapter 3 Common Operations
3.1 Key and Jog Shuttle Operations
Key Operations

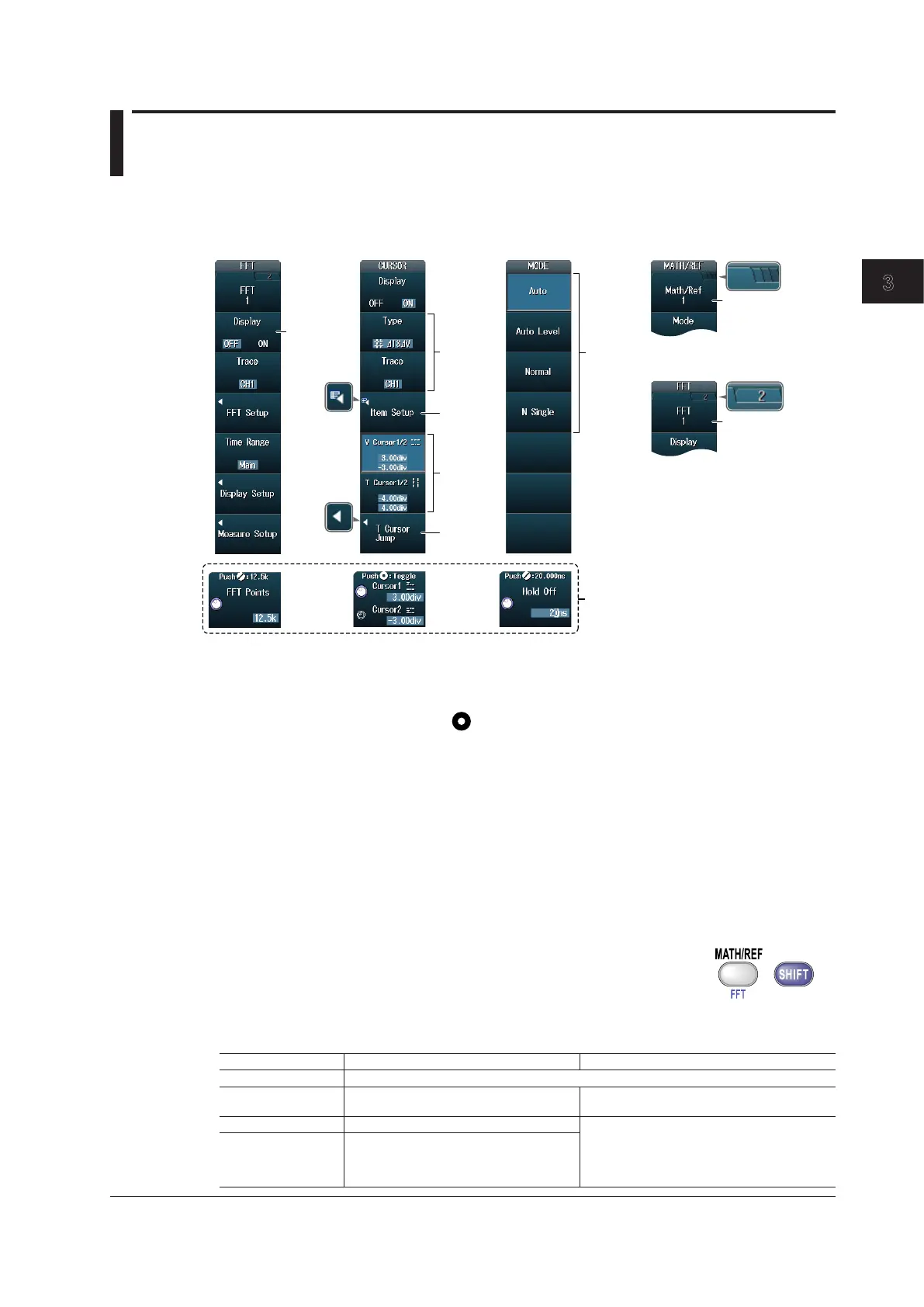

How to Use Setup Menus That Appear When Keys Are Pressed
The operation after you press a key varies depending on the key that you press.
CURSOR menu
Jog shuttle setting menu
MODE menu
MATH/REF menu
FFT menu
FFT menu
B
D
C
A
E
F
G
G
A: The selection switches each time you press the soft key.
B: A selection menu appears when you press the soft key.
Press the soft key that corresponds to the appropriate setting.
C: A dialog box or the keyboard appears when you press the soft key.
Use the jog shuttle and the SET key ( ) to configure the settings.
D: Pressing the soft key selects the item that you can control using the jog shuttle. The jog shuttle
setup menu, which appears at the bottom end of the setup menu, shows the selected item.
E: A related setup menu appears when you press the soft key.
F: Pressing a soft key selects the corresponding option in the soft key.
G: Selects which item to configure when configuring a feature that consists of multiple items that
operate with different settings, such as the Math1 to Math4 and FFT1 and FFT2 computation
features.
How to Display the Setup Menus That Are Written in Purple below
the Keys
In the explanations in this manual, “SHIFT+key name (written in purple)” is used to indicate the
following operation.
1.
Press the
SHIFT key. The SHIFT key illuminates to indicate that the keys are shifted.
Now you can select the setup menus written in purple below the keys.
2.
Press the key that you want to display the setup menu of.
ESC Key Operation
• If you press ESC when a setup menu or available options are displayed, the screen returns to the
menu level above the current one.
•
If you press ESC when the highest level menu is shown, the display changes as follows.
Operation of pressing ESC When measured values are displayed When measured values are not displayed
1st time The setup menu disappears.
2nd time Measured values move outside the
waveform area.
The jog shuttle setting menu disappears.
3rd time The jog shuttle setting menu disappears.
Nothing changes from this point.
From this point, the display position of
measured values switches between
outside the waveform area and inside the
area each time you press ESC.
