Model: EJX910A-F Series Date: September 9, 2005
Rev.2: July 16, 2019 Doc. No.: IFM026-A12 P.2
Yokogawa Electric Corpor ation
IFM 026
Specific conditions of use:
- Precautions sh all be taken to mi nimize the risk from electrostatic discharge of
painted parts.
- When the enc losure of the Pressure Transmitters is m ade of aluminum alloy, if it is
mounted in Zone 0, i t shall be installed such that, ev en in the event of rare incidents,
an ignition source due to im pact and/or f riction s parks is exc luded.
Supply circuit:
Entity parameters [Groups: A, B, C, D, E, F, G, and II C]
Ui : 24 V
Ii : 250 mA
Pi : 1.2 W
Ci: 3.52 nF
Li: 0 µH
FIS CO parameters (1) [Groups: A, B, C, D, E, F, G, and IIC]
Ui : 17.5 V
Ii : 380 mA
Pi : 5.32 W
Ci: 3.52 nF
Li : 0 µH
FIS CO parameters (2) [Groups: C, D, E, F, G, and IIB]
Ui : 17.5 V
Ii : 460 mA
Pi : 5.32 W
Ci: 3.52 nF
Li : 0 µH
Sensor circuit:
Entity parameters [Groups: A, B, C, D, E, F, G, and IIC]
Uo: 6.51 V
Io : 4 mA
Po: 6 mW
C o: 34 µF
Lo: 500 mH
Model: EJX910A-F Series Date: September 9, 2005
Rev.2: July 16, 2019 Doc. No.: I FM026-A12 P.3
Yokogawa Electric Corpor ation
IFM 026
Notes:
1. Installation mu st be in ac cordance with the National Electric Code (NFPA70),
ANSI/ISA-RP12.06.01, and relevant loc al codes.
2. The Associated Apparatus and the Terminators mus t be FM-approved.
3. The f ollowing conditions must be satisfied.
4. General Purpose Equipment connected to the Associated Apparatus m ust not use or
generate a voltage more than Um of the Associated Apparatus.
5. The c ontrol drawing of the Associ ated Apparatus must be followed when installing the
equipment.
6. Dust- tight condu it seals mu st be used when install ed in Class II or Class III
environments.
7. WARNIN G –ELECTROSTATIC CHARGE MAY CAUSE A N EXPLOSION HAZARD.
AVOID ANY ACTIONS THAT CAUS E THE GENERATIO N OF ELECTROSTATIC
CHARGE, SUCH AS RUBBING WITH A DRY C LOTH ON COATING FACE OF THE
PRODUCT.
8. WARNING – S UBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY
AND SUITABILITY FOR HAZARDOUS LOCATION
FISCO Rules
The FISCO Concept allows the interconnection of intrinsically safe apparatus to associated apparatus
not specifically examined in such combination. The criterion for such interconnection is that the
voltage (Ui), the current (Ii) and the power (Pi) which intrinsically safe apparatus can receive and
remain intrinsically safe, considering faults, must be equal or greater than the voltage (Uo, Voc or Vt),
the current (Io, Isc or It) and the power (Po) which can be provided by the associated apparatus
(supply unit). In addition, the maximum unprotected residual capacitance (Ci) and inductance (Li) of
each apparatus (other than terminators) connected to the Fieldbus must be less than or equal to 5 nF
In each I.S. Fieldbus segment only one active source, normally the associated apparatus, is allowed to
provide the necessary power for the Fieldbus system. The allowed voltage (Uo, Voc or Vt) of the
associated apparatus used to supply the bus cable must be limited to the range of 14 V d.c. to 17.5 V d.c.
All other equipment connected to the bus cable has to be passive, meaning that the apparatus is not
allowed to provide energy to
Separately powered equipment needs galvanic isolation to ensure the intrinsically safe Fieldbus
circuit remains passive.
The cable used to interconnect the devices needs to comply with the following parameters:
Inductance per unit length L': 0.4....1 mH/km
Capacitance per unit length C': 45....200 nF/km C' = C' line/line + 0.5 C' line/screen, if both lines are
floating or C' = C' line/line + C'line/screen, if the screen is connected to one line.
Length of spur cable: max. 60 m
Length of trunk cable: max. 1 km in IIC and 5 km in IIB
Length of splice: max = 1 m
Terminators
At the end of each trunk cable an FM Approved line terminator with the following parameters is
suitable:
Model: EJX910A-F Series Date: May 22, 2006
Rev.1: July 16, 2019 Doc. No.: IFM026-A12 P.3-1
Yokogawa Electric Corpor ation
IFM 026

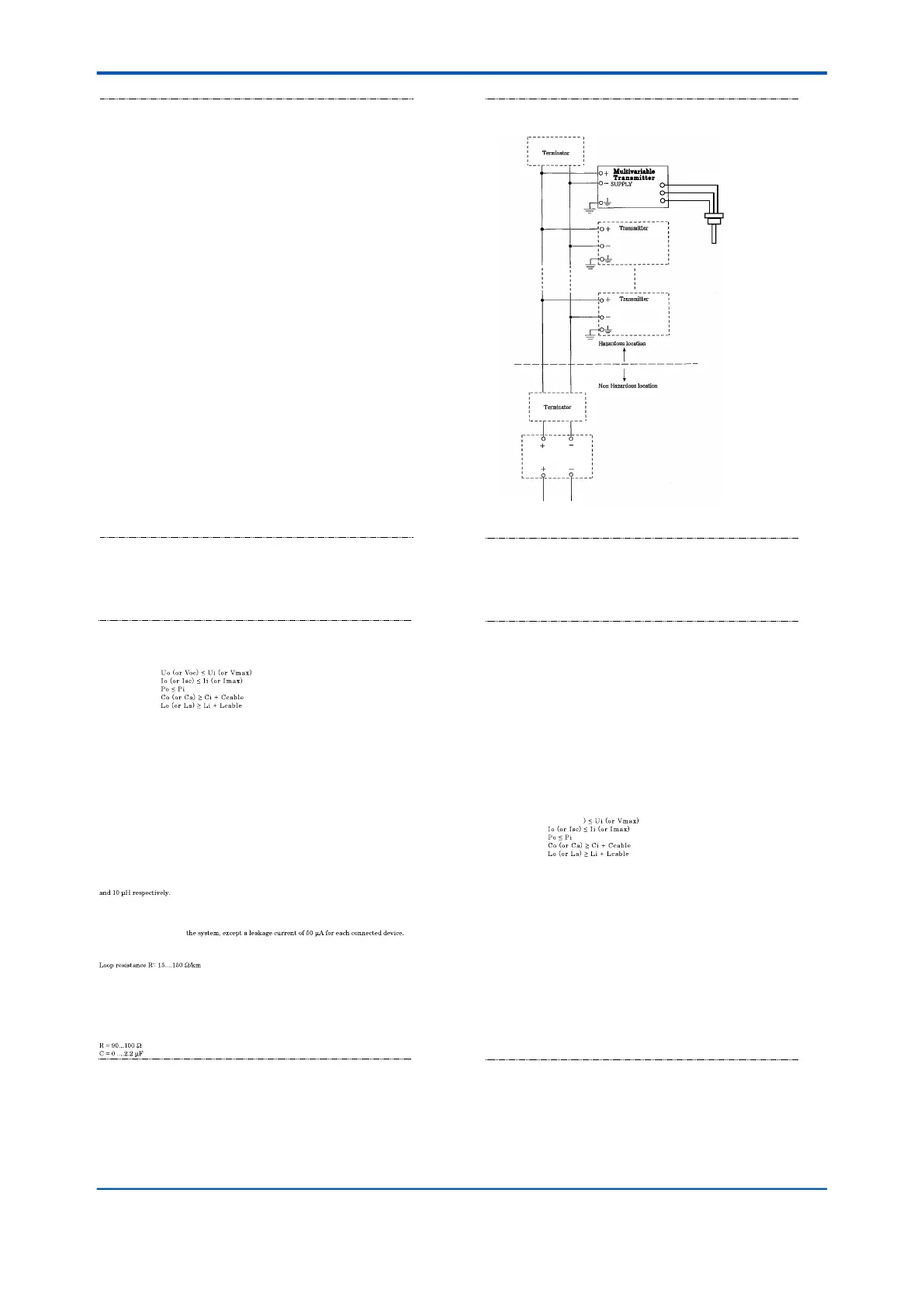

Control drawing (nonincendive)
(Refer to N o te 3)
General Purpose
Equipment
M
u
l
t
i
v
a
r
i
a
b
l
e
Transmi tte
r
S
en sor circuit
Class I, II, D i visio n 2
Group s A, B, C, D , F, G
Class III, D i vis ion 1
Class I, Zo n e 2 , Gr o up IIC
Cert if i e d E q u ipm ent
or
Simple Ap p aratus
Model: EJX910A-F Series Date: May 22, 2006
Rev.3: July 16, 2019 Doc. No.: IFM026-A12 P.3-2
Yokogawa Electric Corpor ation
IFM 026
Nonincendive field wiring parameters
Supply circuit:
Vmax: 32 V
Ci: 3.52 nF
Li: 0 µH
Sensor circuit:
Vt: 6 V
It: 25 mA
Po: 0.15 W
Ca: 40 µF
La: 40 mH
Notes:
1. Installation mu st be in ac cordance with the National Electric Code (NFPA70),
ANSI/ISA-RP12.06.01, and relevant local codes.
2. The f ollowing conditions must be satisfied.
3. In case Nonincendive Field Wiri ng Concept is used f or the interconnecti on,
FM-appr ov ed Associated Nonincendive Field Wiring Apparatus, whi ch meets the
following conditions, must be used as the Gener al Purpose Equipment. The
Terminators als o must be FM approved.
Uo (or Voc
Dust- tight condu it seals mu st be used when installed i n Class II or Clas s III
environments.
4. WARNIN G – SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRIN SIC S AFETY
AND SUITABILITY FOR HAZARDOUS LOCATION
