4. BASIC OPERATING PROCEDURES

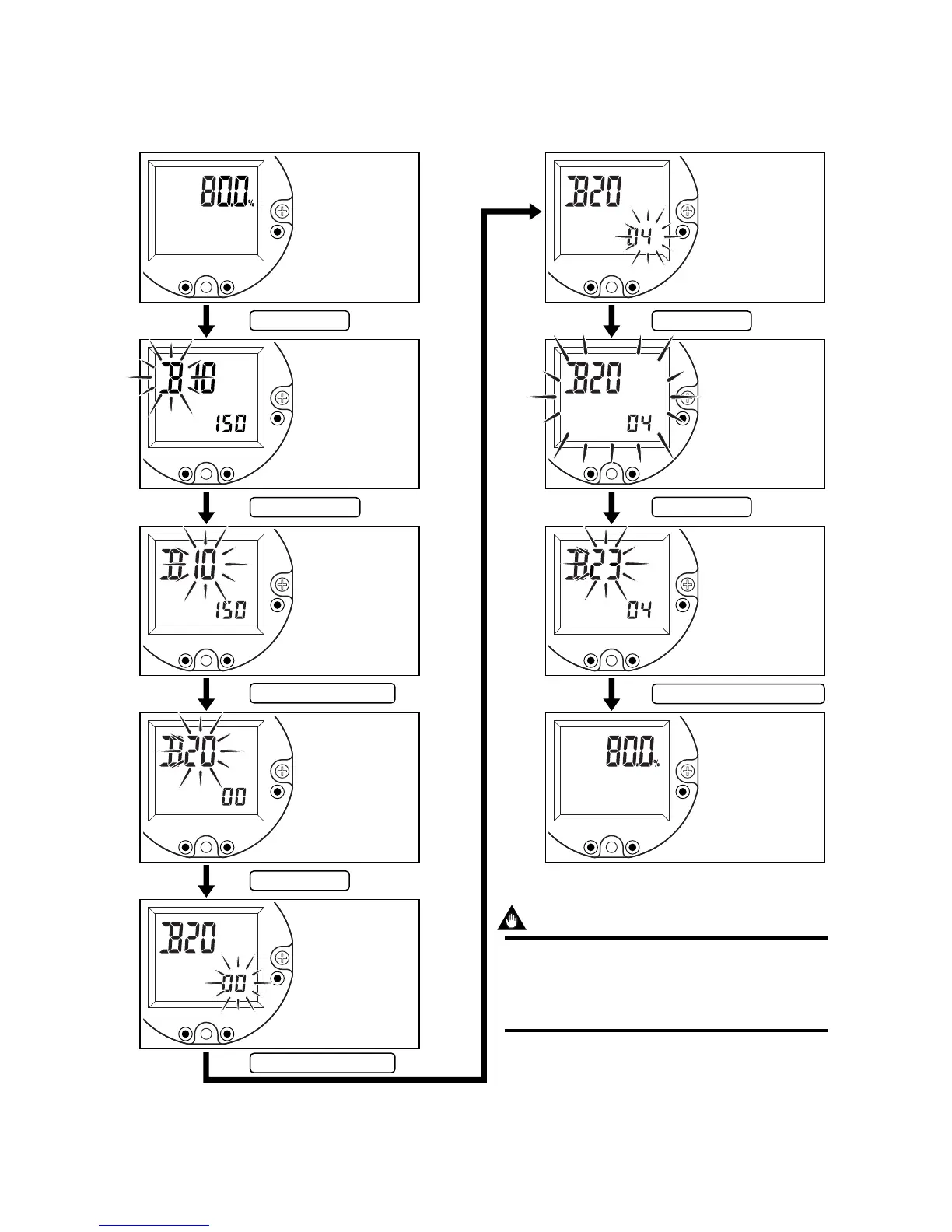

■ Input method of selection items
Example 2: Change the pulse output to alarm output.
The setting mode can be changed referring 5.3 parameter list
SET
INCSHIFT
SET
INCSHIFT
SET
INCSHIFT
SET
INCSHIFT
SET
INCSHIFT
SET
INCSHIFT
SET
INCSHIFT
SET
INCSHIFT
SET
INCSHIFT
F040403.EPS
Press “ SET ” key.
Press “ SHIFT ” key.
Press “ INC ” key any time.
Press “ INC ” key any time.
Press “ SET ” key.
Press “ SET ” key.
Press “ SET ” key.
Press “ SET ” and “ SHIFT ” key.
Indication of % unit.
Enter to the setting
mode.
Enter to the
parameter item.
Indicate “ 20 ”
referring 5.3
parameter list.
Enter to the data
input item.
Indicate “ 03 ” of
alarm output item
referring 5.3
parameter list.
Ensure the setting.
Finish the parameter
setting.
Return to display
mode.
IMPORTANT
After setting a parameter, keep the power on for at
least 30 seconds.
If the power of flowmeter is turned off, a parameter
setting is released.
