YOKOGAWA DY080 User Manual

4-12
IM 01F06A00-01E
4. BASIC OPERATING PROCEDURES

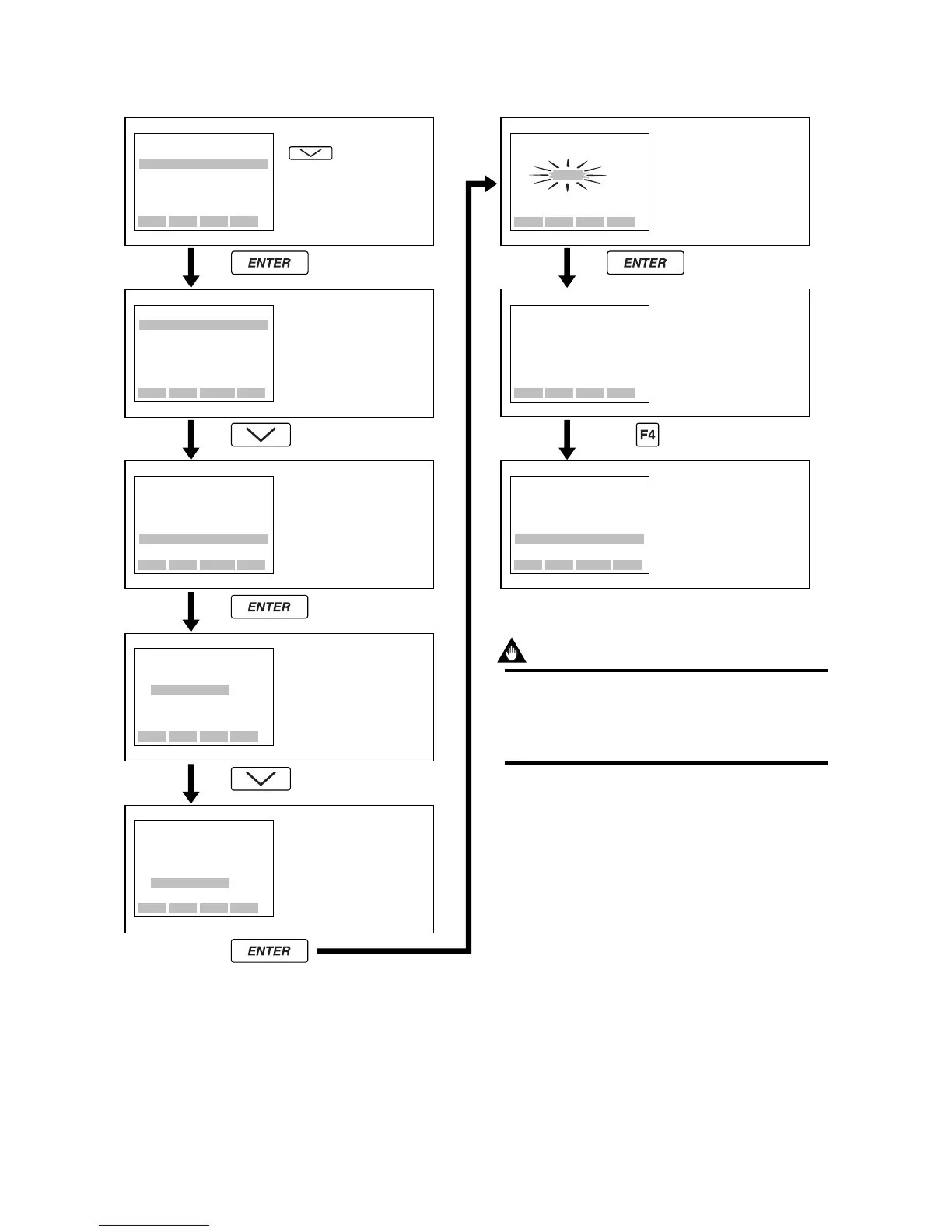

(2) Change the Pulse Output to Alarm Output.
F040505.EPS
Enter menu item, and press
“ ” key.
Move the inverse video bar
to “B : EASY SETUP”.
Item B menu is displayed.
Move the inverse video bar
to “B20 : CONTACT OUT”.
Pressing “ENTER”, cause
the data setup screen to be
displayed.
If the security screen
appears,
enter the security code.
Move the inverse video bar
to “ALARM”.
2 Times
4 Times
Pressing the enter key,
inverse video bar is flashed.
The data setting can be
completed.
If data setting is missing,
press “F3” key and rewrite
the data.
Setting is completed.
The screen returns to the
preceding screen when the
“F4” (ESC) key is pressed.
MENU
A:DISPLAY
B:EASY SETUP
C:BASIC SETUP
D:AUX. SETUP
E:METER SETUP
H:ADJUST
HOME SET ADJ ESC
PARAM
B10:FLOW SPAN
100 m3/h
B15:DAMPING
4 sec
B20:CONTACT OUT
SCALED PULSE
DATA DIAG PRNT ESC
PARAM
B10:FLOW SPAN
100 m3/h
B15:DAMPING
4 sec
B20:CONTACT OUT
SCALED PULSE
DATA DIAG PRNT ESC
PARAM
B10:FLOW SPAN
100 m3/h
B15:DAMPING
4 sec
B20:CONTACT OUT
ALARM
DATA DIAG PRNT ESC
SET
B20:CONTACT OUT
SCALED PULSE
< OFF >
< SCALED PULSE >
<UNSCALED PULSE>
ESC
SET
B20:CONTACT OUT
SCALED PULSE
<UNSCALED PULSE>
< FREQUENCY >
< ALARM >
ESC
SET
B20:CONTACT OUT
SCALED PULSE
ALARM
Print off
F2:printer on
FEED POFF NO
SET
B20:CONTACT OUT
ALARM
FEED NO OK
IMPORTANT
After setting a parameter, keep the power on for at
least 30 seconds.
If the power of flowmeter is turned off, a parameter
setting is released.
