YOKOGAWA Total Insight series User Manual

Unpacking
Quick Reference Instruction Manual
Installation
IM01U10A00-00EN-R, 2nd edition, 2017-08-29
15 / 54

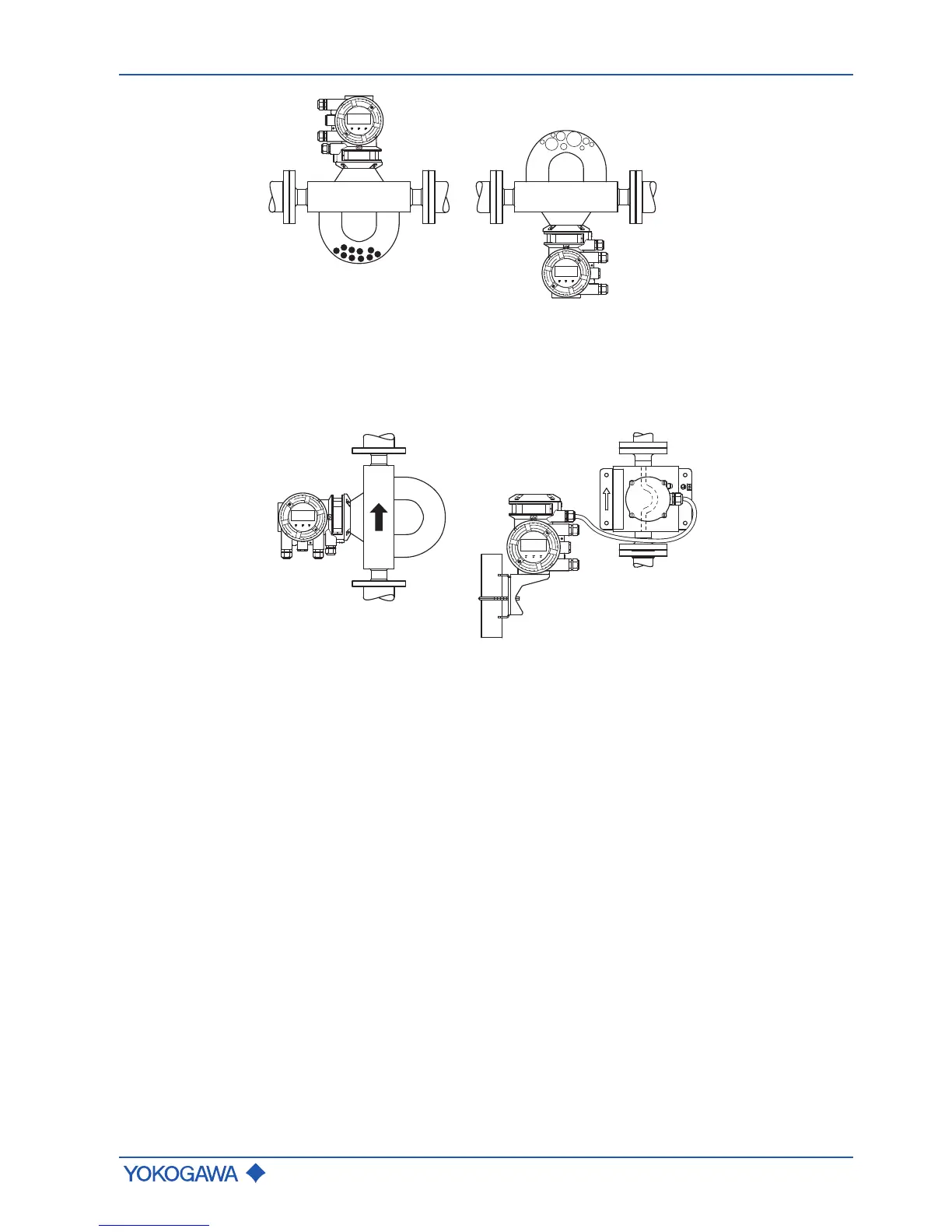

Fig.6: Risk of solid matter and/or gas accumulation
Vertical installation
(recommended)
▪ Draining the pipe is easier in case of maintenance, production start or product
change.
▪ Allows gas bubbles to escape more easily.
▪ Only one shut-off valve required to ensure zero flow rate when running autozero.
Fig.7: Vertical Installation
