YOKOGAWA Total Insight series User Manual

Sensor installation
Quick Reference Instruction Manual
Installation
IM01U10A00-00EN-R, 2nd edition, 2017-08-29
19 / 54
6.2.3 Installation Rotamass Nano (Option PD)
For the Rotamass Nano the sensor can be installed on a DN50 (2") pipe by using a
bracket and U-bolt assy (MS code position 15, option PD).
NOTICE
The bracket contains vibration dampers, but for extreme cases of vibration stronger
damping arrangements may be necessary to ensure best performance.

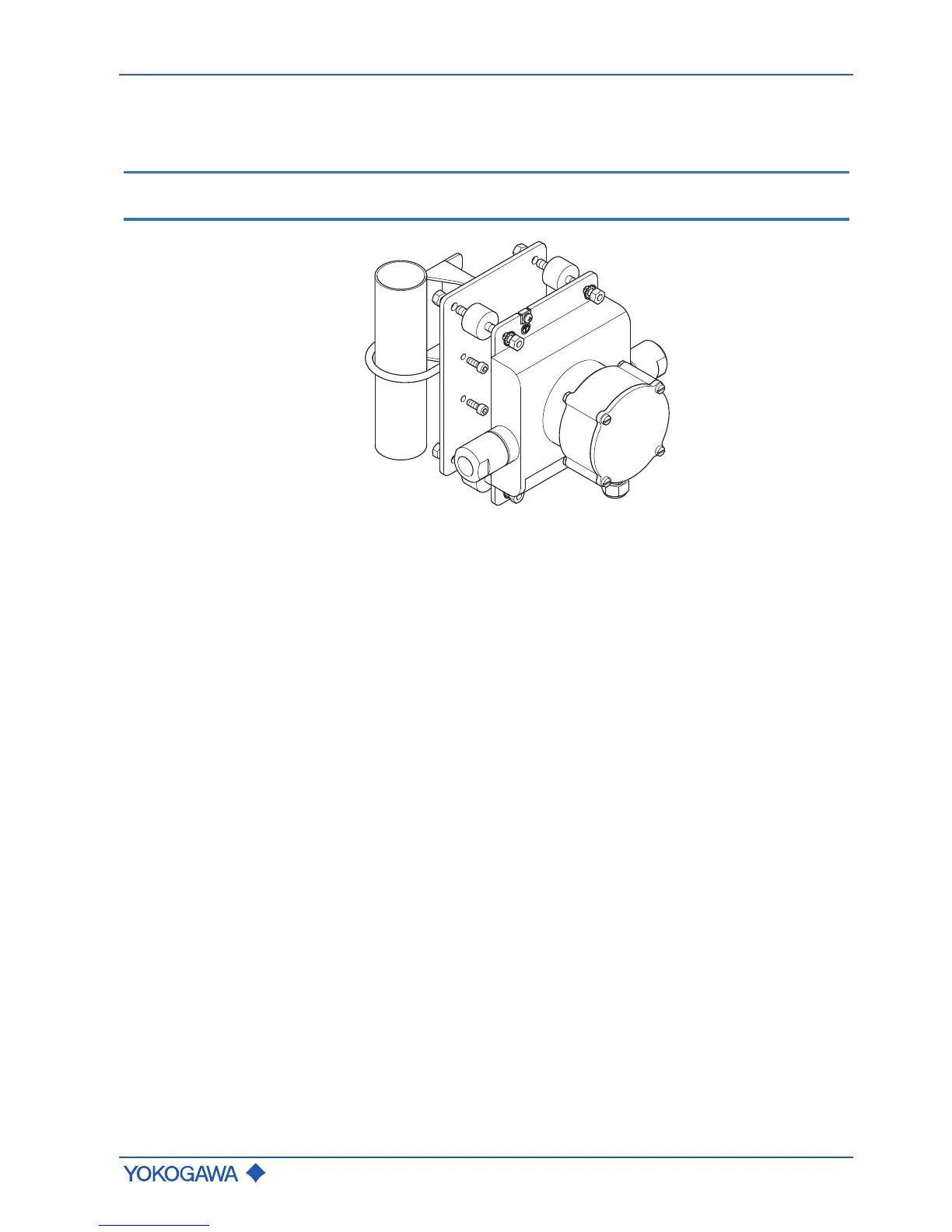

Fig.13: 2" fixing device option /PD for Nano
