Quick Reference Instruction Manual
Installation
Transmitter installation
22 / 54
IM01U10A00-00EN-R, 2nd edition, 2017-08-29

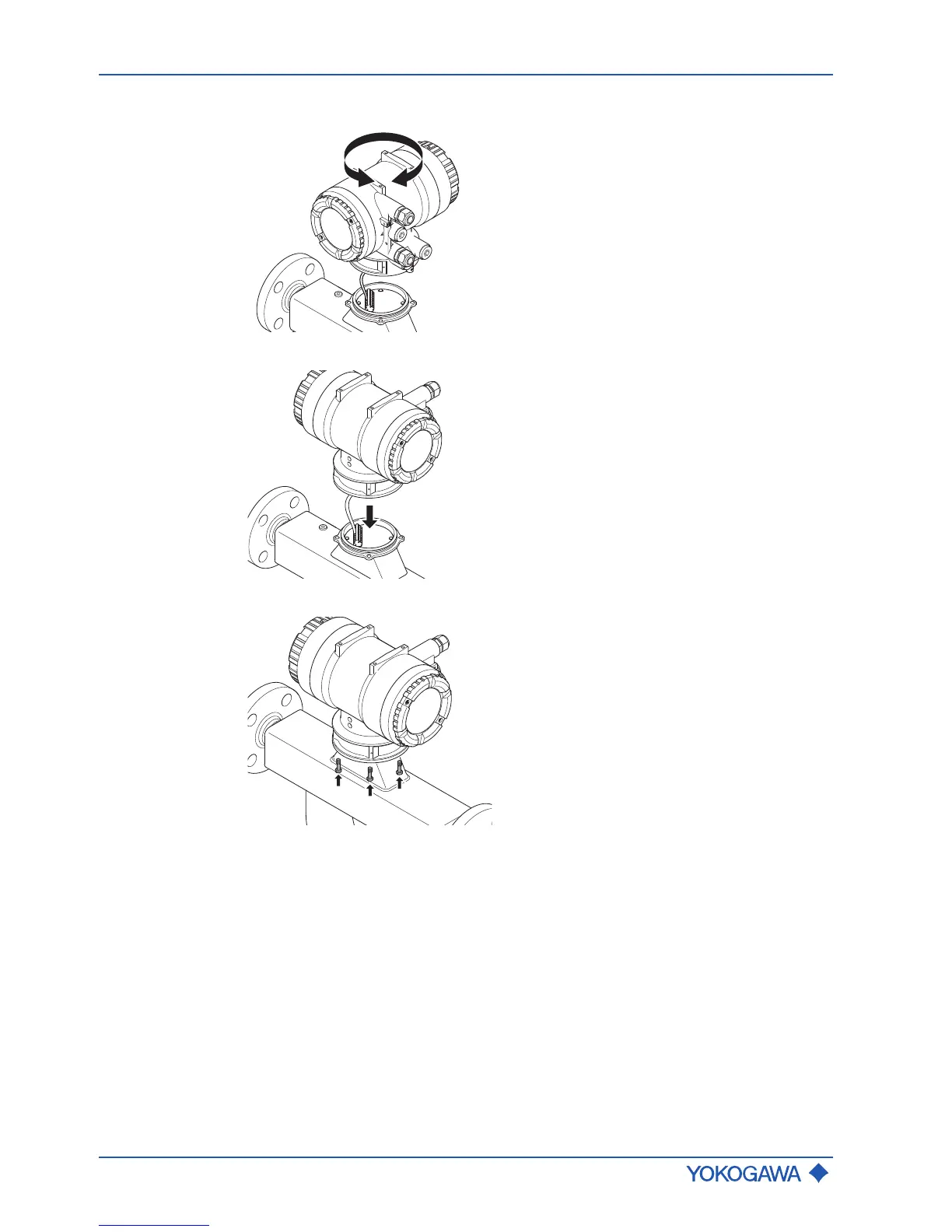

3. Rotate transmitter housing at angles of 90°, 180° or 270°.
4. Place transmitter housing.
5. Tighten the four fixing screws.
