Quick Reference Instruction Manual
Installation
Transmitter installation
24 / 54
IM01U10A00-00EN-R, 2nd edition, 2017-08-29

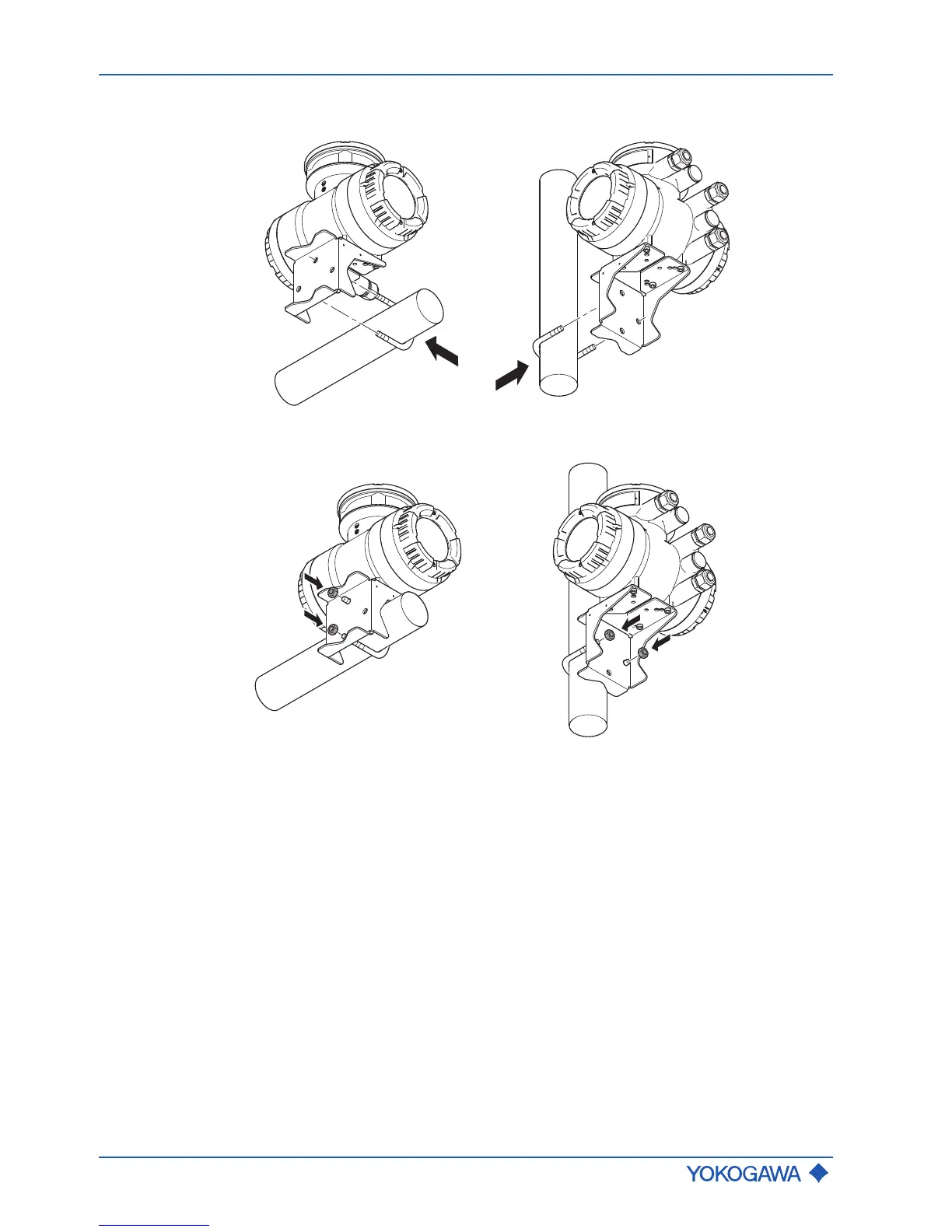

2. Place retaining clip around pipe and slide through drill holes on angle bracket.
3. Fasten retaining clip to bracket using the nuts.
