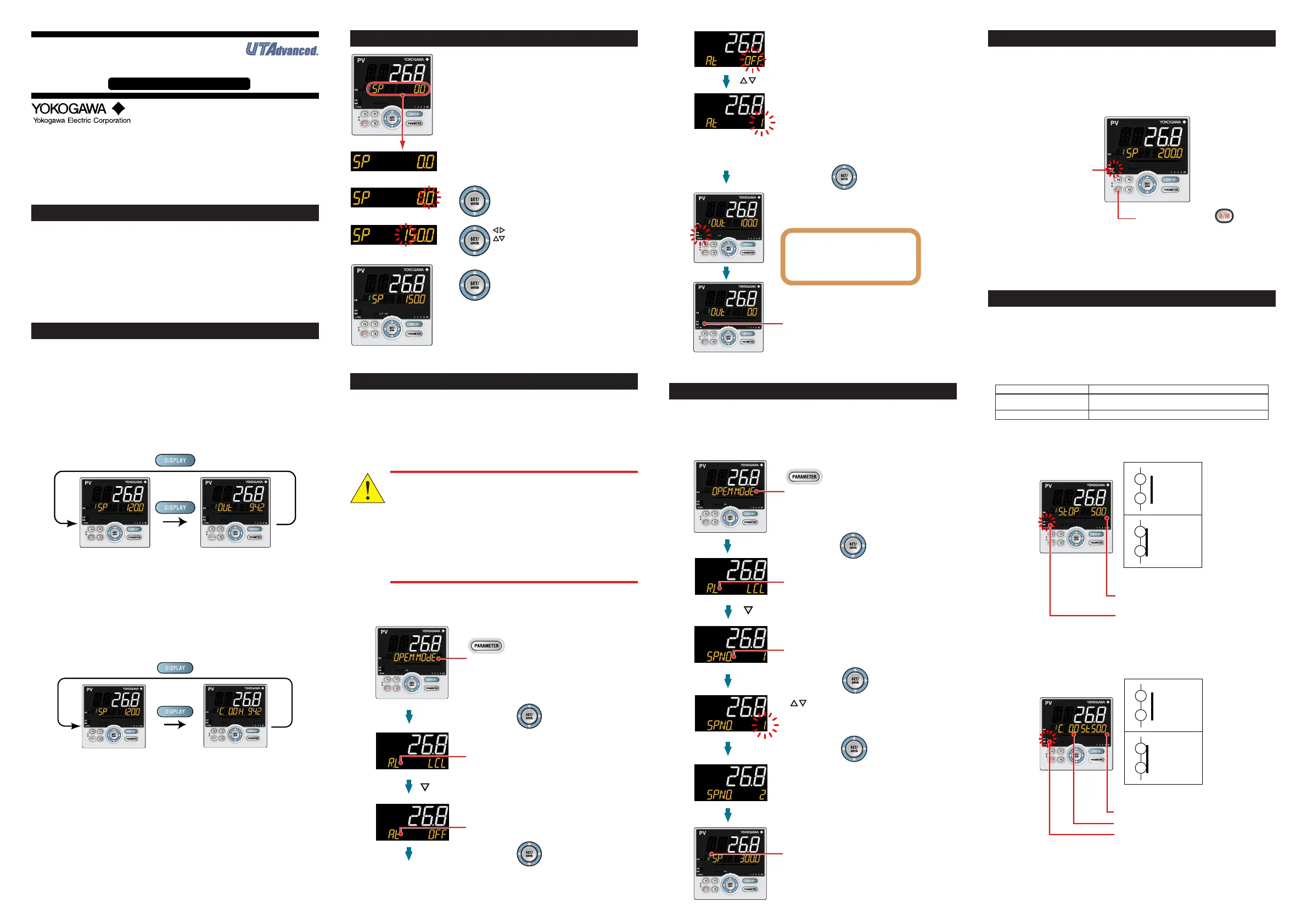

1. Monitoring-purpose Operation Displays Available during Operation
■ Operation Display Switching Diagram for Standard and Posi-
tion Proportional Types
• SP Display
 DisplaysthemeasuredinputvalueonPVdisplay.
 Displaysthetargetsetpoint(SP)onSetpointdisplay(SPcanbechanged).
• OUT Display
 DisplaysthemeasuredinputvalueonPVdisplay.
 Displaysthecontroloutputvalue(OUT)onSetpointdisplay(OUTcanbechanged
inmanualmode).
 Displaysthevalve’sfeedbackinputvalue(at0to100%valveopening)inPosition
proportional control.
SP Display
(SP can be changed.)
OUT Display
(OUT can be changed.)
■ Operation Display Switching Diagram for Heating/Cooling Type
• SP Display
 DisplaysthemeasuredinputvalueonPVdisplay.
 Displaysthetargetsetpoint(SP)onSetpointdisplay(SPcanbechanged).
• OUT Display
 DisplaysthemeasuredinputvalueonPVdisplay.
 Displaysthecontroloutputvalues(C.H.)ofheatingandcoolingsidesonSetpoint
display(C.H.canbechangedinmanualmode).
SP Display
(SP can be changed.)
Heating/cooling OUT Display
(OUT can be changed.)
AftershowingtheOUTDisplay,presstheDISPLAYkeyorDISPkeytoshowthefol-
lowingdisplaysconditionally.
Fordetails,seeUser’sManual.
Standard, Position Proportional, and Heating/Cooling Types
• SELECTDisplays1to5(whichappearwhenregistered)
• AnalogInputDisplay(displayonly)(factorydefault:non-display)
• PositionProportionalComputationOutputDisplay (displayonly) (factorydefault:
non-display)
• PIDNumberDisplay(displayonly)(factorydefault:non-display)
• HeaterBreakAlarm-1CurrentDisplay(displayonly)(forheaterbreakalarmoptiononly)
• HeaterBreakAlarm-2CurrentDisplay(displayonly)(forheaterbreakalarmoption
only)
2. Setting Target Setpoint (SP)
When the required value is displayed,
press the SET/ENTER key to register
the setpoint.
Show the SP Display (Operation Display).
(This is an example of setting the target
setpoint to 150.0).
Press the SET/ENTER key to start the
last digit of the setpoint blinking.
Blinking allows you to change the value.
To set the setpoint, use the
Left/Right arrow keys to move
between digits and the Up/Down
arrow keys to increase and
decrease the value.
1.
2.
3.
4.
3. Performing/Canceling Auto-tuning
Auto-tuningshouldbeperformedaftersettingatargetsetpoint.
Makesurethatthecontrollerisinautomaticmode(AUTO)andinrunmode(RUN)
before auto-tuning. For setting to AUTO, see “5. Switching between AUTO and
MAN,”andforsettingtoRUN,see“6.SwitchingbetweenRUNandSTOP.”
Ifthesetpointisknowninadvanceorauto-tuningdoesnotndanyappropriatePID
constants,setthePIDmanually.ForsettingthePIDmanually,seeUser’sManual.
CAUTION
Do not perform auto-tuning for the following processes.
Tune PID manually.
• Processes with fast response such as flow rate control and pres-
sure control.
• Processes which do not allow the output to be turned on and off
even temporarily.
• Processes which prohibit severe output changes at control
valves (or other actuators).
• Processes in which product quality can be adversely affected if
PV values fluctuate beyond their allowable ranges.
Show the Operation Display.
Hold down the PARAMETER key or PARA key for
3 seconds to display MODE menu.
Press the SET/ENTER key.
Press the SET/ENTER key.
Press the Down arrow key until the parameter AT appears.
The parameter AT (auto-tuning switch) is displayed.
1.
2.
3.
4.
In cases where the communication is
specified, the parameter R.L
(REMOTE/LOCAL switch) is displayed.
Press the SET/ENTER key.
OFF blinks.
Press the Up/Down arrow keys to display the required setpoint.
Blinks during the change.
The setpoint has been registered.
This starts auto-tuning.
The limiter can be set to the output during auto-tuning.
For details, see User’s Manual.
The MAN lamp goes off, which means that
the auto-tuning completed normally.
5.
6.
7.
8.
The setting range is 1 to 4 (represent group numbers) or R.
To perform auto-tuning for the PID of group 1, set the parameter AT to 1.
To quit the auto-tuning, set the parameter to OFF.
During auto-tuning,
• The MAN lamp blinks.
• The OUT symbol appears.
• The output values at 100.0% and
0% appear alternately.
4. Selecting Target Setpoint Numbers (SPNO.)
Thefollowingoperatingprocedureshowsanexampleofchangingthetargetsetpoint
number(SPNO.)from1to2.EachSPhasitsPIDgroup.ThePIDgroupsetforthe
parameterPIDN(PIDnumberselection)isused.
Show the Operation Display.
Hold down the PARAMETER key or PARA key for
3 seconds to display MODE menu.
Press the SET/ENTER key.
SPNO. has been changed to 2.
Blinks during the change.
The setpoint has been registered.
Press the DISPLAY key or DISP key once
to return to the Operation Display.
Change the setpoint using
the Up/Down arrow keys.
Press the Down arrow key until the parameter SPNO.
appears.
Press the SET/ENTER key.
Press the SET/ENTER key.
1.
2.
3.
4.
5.
6.
7.
In cases where the communication is
specified, the parameter R.L
(REMOTE/LOCAL switch) is displayed.
The parameter SPNO. (SP number selection)
is displayed.
Operation
Guide
UT35A/UT32A
Digital Indicating Controllers
Operation Guide
This operation guide describes key entries for operating the UT35A/UT32A.
Although the display of UT35A is used in this guide, UT32A can be operated similarly.
For operations using external contact inputs, see “DI” of “6. Terminal Wiring Diagrams”
in “Installation and Wiring.”
If you cannot remember how to carry out an operation during setting, press the
DISPLAY key or DISP key once. This brings you to the display (Operation Display) that
appears at power-on.
The scrolling guide is displayed on PV display in the Parameter Setting Display.
This guide can be turned on/off with the Fn key.
Operations
5. Switching between AUTO and MAN
AUTOandMANswitchingcanbeperformedusinganyofthefollowing:(1)A/Mkey,
(2)Contactinput,(3)Communication,and(4)Userfunctionkey.
ThegurebelowshowsadirectoperationusingtheA/Mkey.
WhenAUTO andMANswitchingfunction isassignedto thecontactinput,andthe
contactinputisON,theswitchingbykeyoperationcannotbeperformed.
Fordetails,seeUser’sManual.
MAN lamp is lit in MAN mode.
Each time you press the key,
AUTO and MAN is switched alternately.
WhenAUTOisswitchedintoMAN,thecontroloutputvalueinAUTOmodeisheld.
Thecontrollercanbeoperatedmanuallyfromtheholdvalue.
Ifthe manualpreset outputis set(MPONparameter≠OFF),thecontrollercanbe
operatedmanuallyfromthearbitraryoutputvalue(MPO1toMPO5parameters).
6. Switching between RUN and STOP
RUNandSTOPswitchingcanbeperformedusinganyofthefollowing:(1)Contact
input,(2)Parameter,(3)Communication,and(4)Userfunctionkey.
Thefollowingshowsanexampleofswitchingusingthecontactinput.
(TheswitchingfunctionisassignedtoDI2contactforthefactorydefault.)
Fordetailsofotherswitchingmethodsandthedisplayappearingwhentheoperation
isstarted,seeUser’sManual.
Whenthecontrollerisstopped,inputandoutputsareasfollows:
PVinput DisplaysthePVvalue.
Controloutput Displaysthepresetoutputvalue.
ThepresetoutputvalueissetforeachPIDgroup.
Alarmoutput Turns the output on in case of an alarm.
Display in STOP mode
“STOP” isdisplayedonSymboldisplay and"presetoutput value" isdisplayedon
Datadisplay.
OFF: Operation RUN
Display in STOP mode
210
212
ON: Operation STOP
210
212
Preset output (PO)
Valve opening (0-100%) for
Position proportional type
STOP lamp is lit.
DI2
DI2
Display in STOP mode in Heating/cooling control
“Cooling-sidepresetoutputvalue”is displayedontheleftsideof the“ST” symbol,
and“Heating-sidepresetoutputvalue”isontherightside.
OFF: Operation RUN
Display in STOP mode
210
212
ON: Operation STOP
210
212
Heating-side preset output (PO)
STOP lamp is lit
Cooling-side preset output (POc)
.
DI2
DI2
