c. Check that the pin of the shedder bar xing block is aligned with the pin hole of the shedder
bar as shown in Figure 3.6.

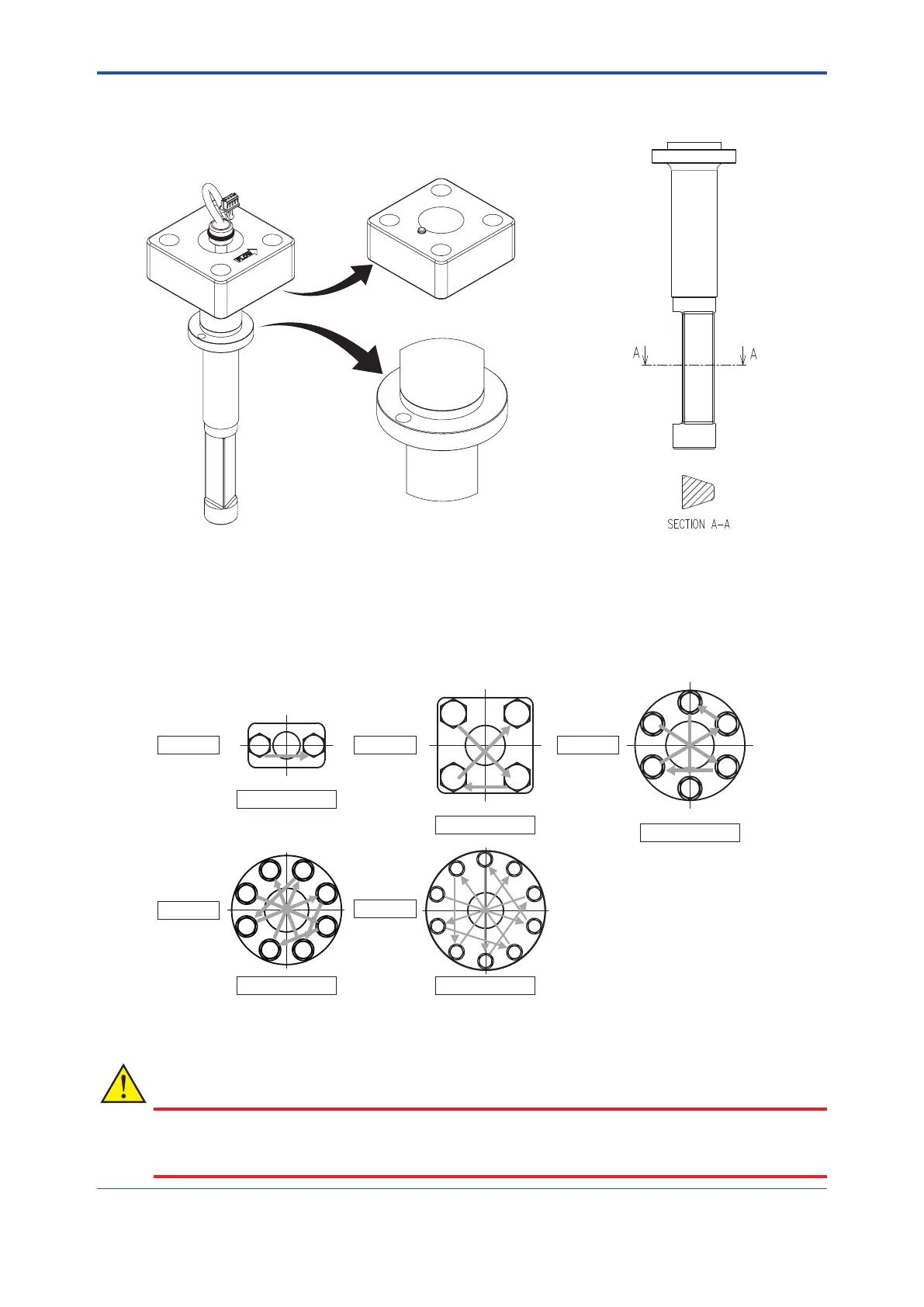

Figure 3.6 Installing the Shedder Bar
F0307.ai
Upstream Downstream
Figure 3.7 Shedder Bar
Installation
Direction
d. Tighten the shedder bar xing bolts to the appropriate tightening torque value as shown in
Table 3.1 and Table 3.2. Partially tighten each bolt equally 3 to 4 times until the tightening
torque value is reached. Read Figure 3.8 for the bolt tightening sequence.
F1105.ai
Upstream
Number of bolts: 2
Number of bolts: 4
Number of bolts: 6
Upstream
Number of bolts: 10
Upstream
Upstream
Number of bolts: 8
Upstream
Figure 3.8 Bolt Tightening Sequence
CAUTION
Since the bolts are near the sensor, the readings may be aected if the bolts are not evenly
tightened. Unevenly tightened bolts may also cause uid to leak. Make sure that the bolts are
tightened evenly to the appropriate tightening torque value.
