Yongnuo YN560 User Manual

III
.

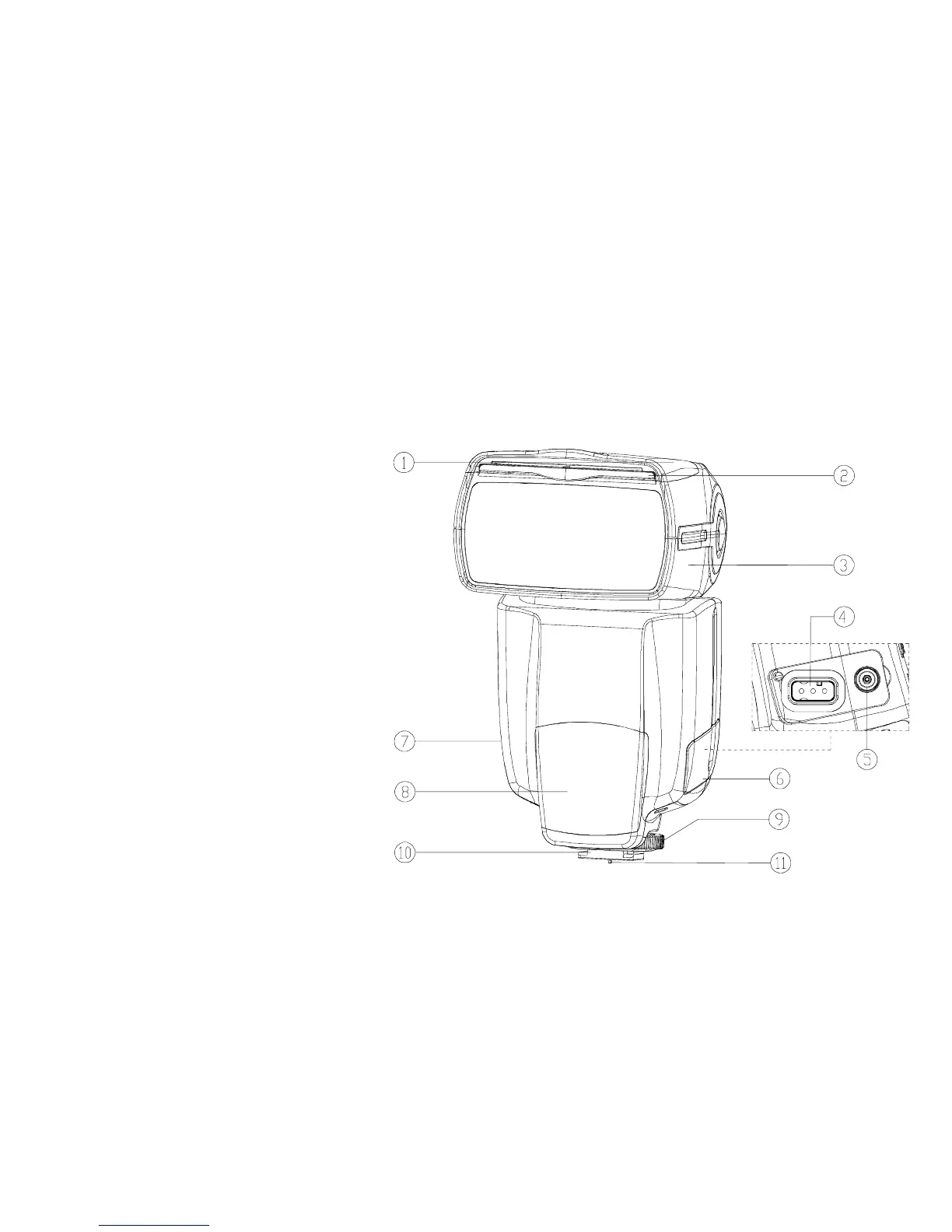

Parts
(
Please read
this
section
carefully,
to
familiar
ize
yourself with the product)
1. Built-in bounce card
2. Built-in wide-fl ash adapter
3. Flash light’s head
4. External power pack socket
(It can be connected to
the SF-18C or SF-17C
external power pack)
5. Screwlock PC port (for input)
6. Port cover
7. Battery bay cover
8. Optical control sensor
9. Locking ring
10. Hot shoe stand
11. Hot shoe pin

Yongnuo YN560 Specifications

General

Zoom Range	24-105mm
Recycle Time	Approx. 3 seconds
Power Source	4 x AA batteries (alkaline or Ni-MH)
Color Temperature	5600K
Flash Modes	Multi
Swivel Angle	270 degrees
Tilt Angle	0-90 degrees
Wireless Triggering	Yes
Manual Power Levels	1/1 to 1/128
