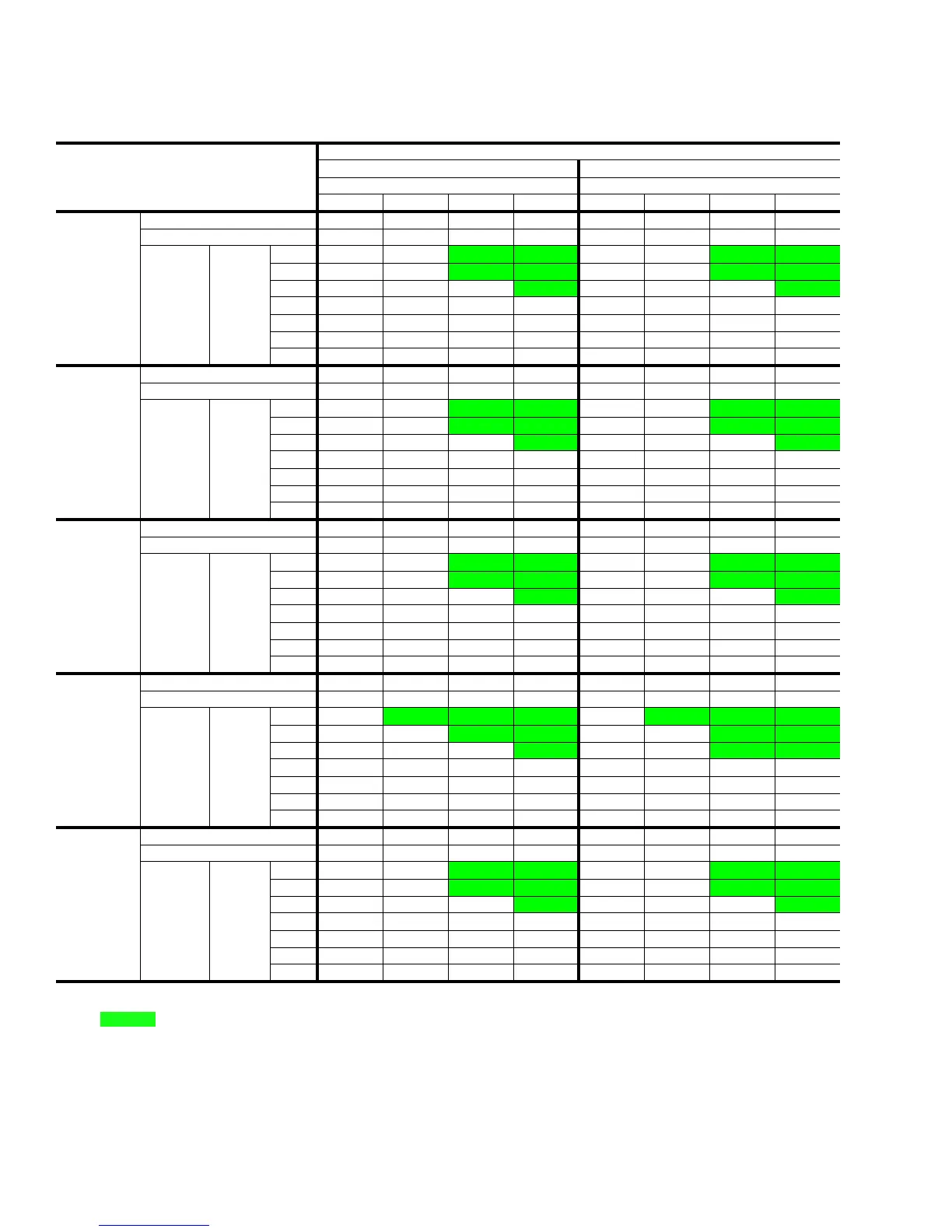

TABLE 5: DNZ036 COOLING CAPACITIES - 3 TON
TEMPERATURE
OF AIR ON
CONDENSER COIL
AIR ON EVAPORATOR COIL
1,200 CFM 1,350 CFM
WB °F WB °F
72 67 62 57 72 67 62 57
85 °F
NET CAP. MBH 40.9 38.4 35.2 35.9 41.2 38.7 35.4 36.1
TOTAL POWER kW 2.93 2.94 2.90 2.85 3.05 3.06 3.02 2.97
Sensible Capacity
MBH
1
Entering Dry
Bulb °F
86 27.6 34.7 35.2 35.9 29.3 36.6 35.4 36.1
83 24.2 31.2
35.2 35.9 25.3 32.6 35.4 36.1
80 20.7 27.7 33.4
35.9 21.3 28.6 34.4 36.1
77 17.2 24.2 29.9 32.4 17.3 24.6 30.4 32.1
74 13.7 20.7 26.4 28.9 13.2 20.5 26.3 28.1
71 -- 17.2 22.9 25.4 -- 16.5 22.3 24.0
68 -- 13.7 19.4 21.9 -- 12.5 18.3 20.0
95 °F
NET CAP. MBH 39.0 36.1 33.2 33.6 39.3 36.4 33.5 33.9
TOTAL POWER kW 3.24 3.23 3.18 3.19 3.48 3.48 3.42 3.43
Sensible Capacity
MBH
1
Entering Dry
Bulb °F
86 27.1 33.7 33.2 33.6 28.5 35.2 33.5 33.9
83 23.6 30.2
33.2 33.6 24.4 31.2 33.5 33.9
80 20.1 26.7 32.2 33.6 20.4 27.2 32.8 33.9
77 16.6 23.2 28.7 30.1 16.4 23.2 28.7 29.8
74 13.1 19.7 25.2 26.6 12.4 19.1 24.7 25.8
71 -- 16.2 21.7 23.1 -- 15.1 20.7 21.8
68 -- 12.7 18.2 19.6 -- 11.1 16.7 17.8
105 °F
NET CAP. MBH 36.7 33.0 31.0 31.4 37.1 33.3 31.4 31.7
TOTAL POWER kW 3.39 3.58 3.54 3.54 3.58 3.78 3.73 3.74
Sensible Capacity
MBH
1
Entering Dry
Bulb °F
86 26.7 31.8 31.0 31.4 28.3 32.8 31.4 31.7
83 23.2 29.0
31.0 31.4 24.2 30.2 31.4 31.7
80 19.7 25.5 30.4
31.4 20.2 26.2 31.0 31.7
77 16.2 22.0 26.9 27.9 16.2 22.2 27.0 27.7
74 12.7 18.5 23.4 24.4 12.2 18.1 23.0 23.7
71 -- 15.0 19.9 20.9 -- 14.1 18.9 19.7
68 -- 11.5 16.4 17.4 -- 10.1 14.9 15.6
115 °F
NET CAP. MBH 34.4 29.8 28.8 29.2 35.0 30.3 29.3 29.6
TOTAL POWER kW 3.55 3.94 3.89 3.89 3.69 4.09 4.04 4.04
Sensible Capacity
MBH
1
Entering Dry
Bulb °F
86 26.3 29.8 28.8 29.2 28.1 30.3 29.3 29.6
83 22.8 27.7
28.8 29.2 24.0 29.2 29.3 29.6
80 19.3 24.2 28.5
29.2 20.0 25.2 29.3 29.6
77 15.8 20.7 25.0 25.7 16.0 21.1 25.3 25.6
74 12.3 17.2 21.5 22.2 12.0 17.1 21.2 21.6
71 -- 13.7 18.0 18.7 -- 13.1 17.2 17.6
68 -- 10.2 14.5 15.2 -- 9.1 13.2 13.5
125 °F
NET CAP. MBH 32.1 26.7 26.6 27.0 32.8 27.3 27.2 27.5
TOTAL POWER kW 3.71 4.29 4.24 4.24 3.79 4.39 4.35 4.35
Sensible Capacity
MBH
1
Entering Dry
Bulb °F
86 25.9 27.9 26.6 27.0 27.9 27.8 27.2 27.5
83 22.4 26.5
26.6 27.0 23.8 28.2 27.2 27.5
80 18.9 23.0 26.7
27.0 19.8 24.1 27.5 27.5
77 15.4 19.5 23.2 23.5 15.8 20.1 23.5 23.5
74 11.9 16.0 19.7 20.0 11.8 16.1 19.5 19.5
71 -- 12.5 16.2 16.5 -- 12.1 15.5 15.4
68 -- 9.0 12.7 13.0 -- 8.0 11.4 11.4
1.
These are net capacity ratings. The indoor blower motor heat has already been subtracted from the gross cooling capacity.
ALL SENSIBLE CAPACITY
