York CURBPAK CP23 - FACTORY PACKAGED CONTROLS AND MOTOR CONTROL CENTER (SEE FIGURE 38)

FORM 100.10-NOM2
33
YORK INTERNATIONAL
DUCT STATIC
PRESSURE
TRANSDUCER
DISCHARGE AIR
TEMPERATURE
SENSOR
LOW LIMIT
CONTROL
MIXED AIR
TEMPERATURE
SENSOR
FILTER
DIFFERENTIAL
PRESSURE
SWITCH
CONTROL
ENCLOSURE
SEGMENT
OPTIONAL
MOTOR
CONTROL
PANEL
OPTIONAL
AIR UNIT
CONTROLLER
BUILDING STATIC
PRESSURE
TRANSDUCER
DAMPER
ACTUATOR
(R.A.)
MIXED AIR
DIFFERENTIAL
PRESSURE
TRANSDUCER
RETURN AIR
TEMP. SENSOR
OUTSIDE AIR
TEMPERATURE SENSOR
DAMPER
ACTUATOR
(O.A.)
OPTIONAL
FACTORY
WIRING

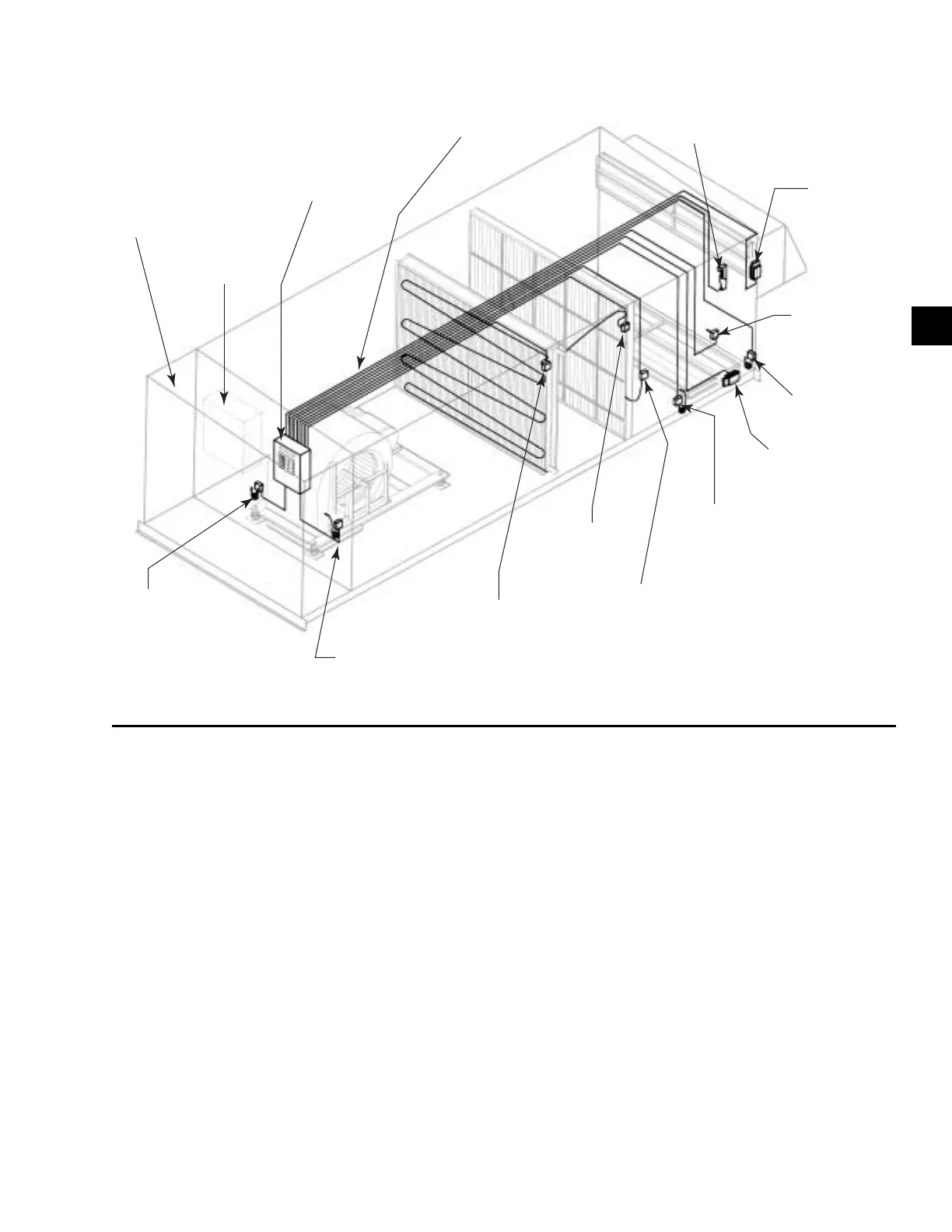

FIG. 38 – TYPICAL CURBPAK W/FACTORY-PACKAGED CONTROLS OR SINGLE POINT MOTOR CONTROL CENTER
LD03221
FACTORY PACKAGED CONTROLS AND MOTOR
CONTROL CENTER (SEE FIGURE 38)
Factory Package Controls (FPC) and Motor Starter
Panel create a complete factory engineered system.
The control system (FPC) is designed specifically for
each unit. The control system (FPC), with the appro-
priate options, can control , monitor and diagnose those
points that are necessary to maintain optimum perfor-
mances.
There are three options available:
• Factory-mounted End Devices
• Factory-mounted End Devices, factory wired to a
terminal strip in a single enclosure.
• Factory-mounted End Devices, factory wired to a
terminal strip and a controller mounted in a single
enclosure.
The YORK Factory-mounted End Devices Package
consists of end devices that are pre-engineered, fac-
tory installed and tested:
• Binary Inputs – On/Off, Open/Close indication.
Examples: Low Temperature Limit, Filter Status,
Fan Status
• Binary Outputs – On/Off Control by relay.
Example: Fan Start/Stop
• Analog Inputs – Temperature or pressure reading.
Examples: Supply Air Temp, Supply Duct Static
Pressure
• Analog Outputs – 2 to 10 volts DC signal for
modulation control.
Examples: Chilled Water Valve, Damper Actuator,
Variable Frequency Drive
For information on Factory Packaged Controls (FPC)
see Factory Packaged Controls, Installation Operation
and Maintenance Manual.
