York DNP024 User Manual

036-21366-007-A-1205
Unitary Products Group 19

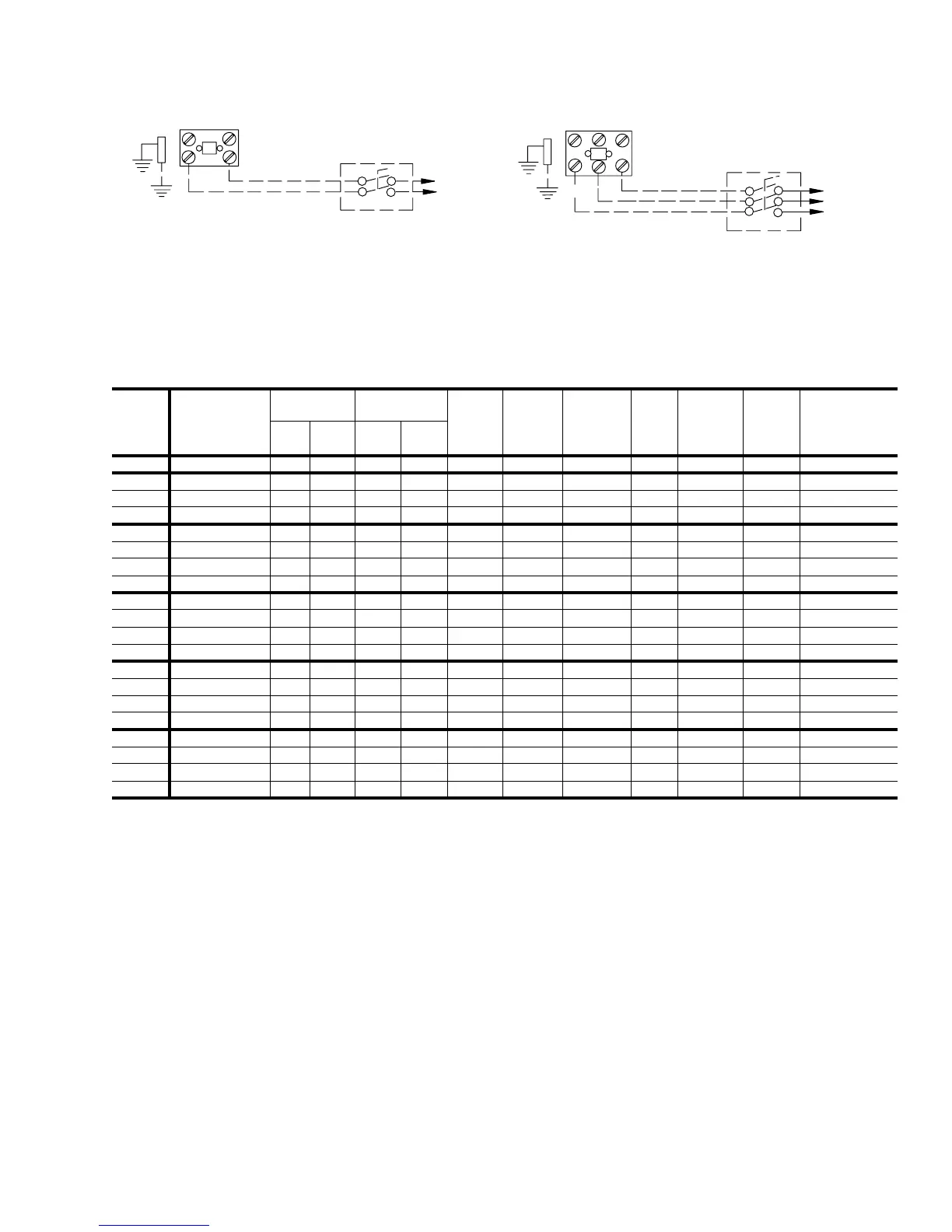

FIGURE 4 - POWER WIRING FIELD DIAGRAM
G R O U N D
L U G
R E F E R T O E L E C T R I C A L
D A T A T A B L E S T O S I Z E
T H E D I S C O N N E C T
F I E L D - S U P P L I E D
D I S C O N N E C T
C O N T A C T O R
F I E L D - S U P P L I E D
D I S C O N N E C T
C O N T A C T O R
G R O U N D
L U G
R E F E R T O E L E C T R I C A L
D A T A T A B L E S T O S I Z E
T H E D I S C O N N E C T
S I N G L E
P
H A S E
P O W E R
S U P P L Y
T H R E E
P H A S E
P O W E R
S U P P L Y
TABLE 14: ELECTRICAL DATA
MODEL
DNP
POWER SUPPLY
VOLTAGE
LIMITATIONS
1
COMPRESSOR
COND.
FAN
MOTOR,
FLA
SUPPLY
AIR
BLOWER
MOTOR
FLA
MINIMUM
CIRCUIT
AMPACITY
MAX.
FUSE
SIZE,
AMPS
2
MAX.
HACR
BREAKER
SIZE,
AMPS
UNIT
POWER
FACTOR
TRANSFORMER
SIZE (VA)
MIN. MAX. RLA LRA
024 208/230-1-60 187 253 8.0 53.5 1.1 2.6 16.5 20 20 0.96 40
030 208/230-1-60 187 253 13.6 67 1.1 6.8 24.9 35 35 0.96 40
030 208/230-3-60 187 253 8.6 55 1.1 6.8 18.7 25 25 0.96 75
030 460-3-60 432 504 5.7 39 0.6 6.8 13.4 20 20 0.96 75
036 208/230-1-60 187 253 17.2 88 1.1 6.8 29.4 45 45 0.96 40
036 208/230-3-60 187 253 11.4 77 1.1 6.8 22.2 30 30 0.96 75
036 460-3-60 432 504 5.7 39 0.6 6.8 14.8 20 20 0.96 75
036 575-3-60 540 630 4.7 31 0.6 6.8 13.3 20 20 0.96 75
042 208/230-1-60 187 253 20 104 1.3 9.1 35.4 50 50 0.96 40
042 208/230-3-60 187 253 13.9 88 1.3 9.1 27.8 40 40 0.96 75
042 460-3-60 432 504 6.4 44 0.7 9.1 18.5 25 25 0.96 75
042 575-3-60 540 630 5.4 34 0.6 9.1 16.8 25 25 0.96 75
048 208/230-1-60 187 253 23.4 126 1.9 9.1 39.5 60 60 0.96 40
048 208/230-3-60 187 253 13 93 1.9 9.1 26.5 35 35 0.96 75
048 460-3-60 432 504 6.4 46.5 1.0 9.1 18.4 25 25 0.96 75
048 575-3-60 540 630 5.1 37.2 0.8 9.1 17.3 25 25 0.96 75
060 208/230-1-60 187 253 25 150 2.8 9.1 43.2 60 60 0.96 40
060 208/230-3-60 187 253 17.3 123 2.8 9.1 33.5 45 45 0.96 75
060 460-3-60 432 504 8.4 70 2.8 9.1 22.6 30 30 0.96 75
060 575-3-60 540 630 7.0 53 2.8 9.1 21.2 30 30 0.96 75
1.
Rated in accordance with ARI Standard 110, utilization range “A”.
2.
Dual element, time delay type.
